Detailed Product Description
| Type: |
Active Two-way,full Range System |
Power Handling: |
450W(RMS)900W(PEAK) |
| Nclosure: |
Plywood |
|
|
| High Light: |
floor monitor speakers, audio monitor speakers |

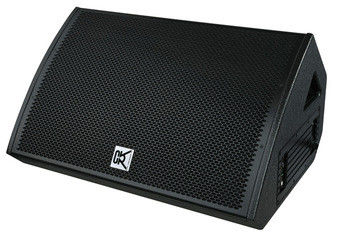

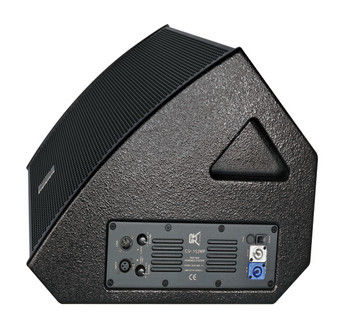

Active 15 Inch Stage Monitor Speaker 450 Watt Outdoor Show Sound Equipment
Quick Details:
- Place of Origin : Guangzhou , China
- Brand name : CVR
- Model Number: CV-152MP
- Service Type: OEM or ODM
- Warranty : one year
Details:

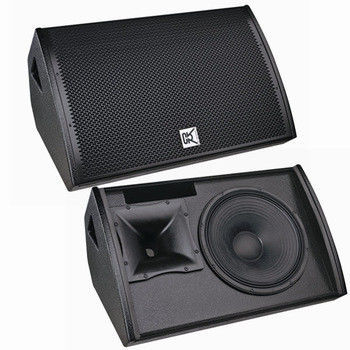

CV-152M/CV-152MP is a two-way, full range stage monitor speaker system composed of one 15＂ woofer and one 3＂titanium compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications. The CV-152MP features a highly efficient power amp module.
|
Model
|
CV-152M & CV-152MP(Active)
|
|
Type
|
Two-way,full range monitor system
|
|
Frequency Response
|
48Hz-18kHz±3dB
|
|
Power handling
|
450W(RMS)900W(PEAK)
|
|
Power amp
|
1000W/8ohm (CV-152MP)
|
|
Amplifier type
|
Switching power amp, class
|
|
|
D circuit
|
|
Sensitivity
|
100dB(1W@1M)
|
|
Max@S.P.L
|
126dB(PEAK/1M)
|
|
LF section
|
15"(380mm) woofer 75mm(3in)coil
|
|
HF section
|
3"compression driver with
|
|
|
75mm titanium diaphragm
|
|
Nominal impedance
|
8 ohm
|
|
Output section
|
2-channel
|
|
Dispersion pattern
|
60°H×40°V
|
|
Surface finish
|
Black paint
|
|
Speaker cables
|
1(+)1(-)
|
|
Input connectors
|
2×NL4MP speakon
|
|
Dimensions
|
750×400×520mm(W×H×D)
|
|
Package dimensions
|
820×470×570mm/0.22cbm
|
|
Enclosure
|
Plywood
|
|
Net weight
|
32.5kg(CV-152M)
|
|
|
33.5kg(CV-152MP)
|
|
Gross weight
|
36.5kg(CV-152M)
|
|
|
37.5kg(CV-152MP)
|
