Detailed Product Description
| Model Number:: |
CV-802C |
Type: |
Two-way,full Range System |
| Frequency Response: |
75Hz －20kHz ± 3dB |
Power:: |
200W(RMS)400W(PEAK) |
| Output Section: |
2-channel |
Dispersion Pattern: |
90°H×50°V |
| Finish: |
Black Paint |
|
|
| High Light: |
passive sound system, pa sound system |

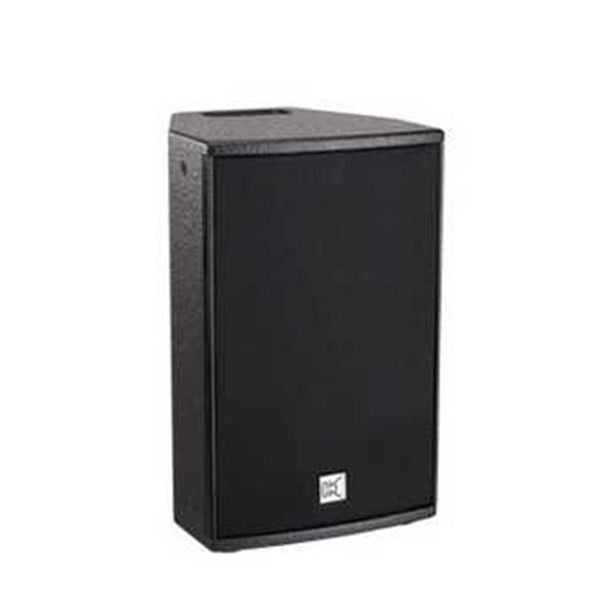

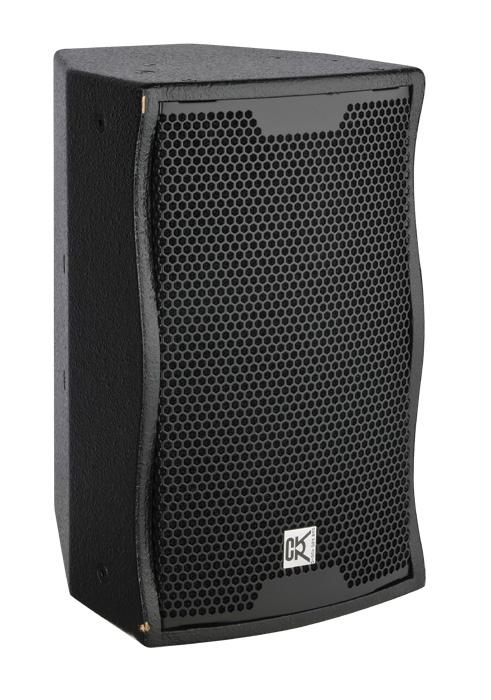

2 Channel Indoor Audio Wireless Passive Pa System Used In Club
DESCRIPTION and APPLICATION:

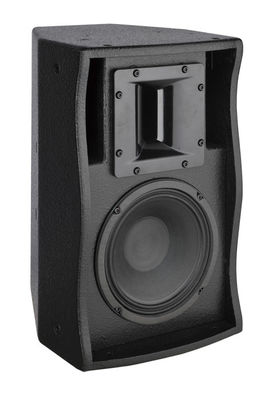

CV-802C is a 2-way, full range loudspeaker system. Its features include one high efficient 8＂ woofer and one 1.4＂ titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc.
| Model |
CV-802C
|
| Type |
Two-way,full range system |
| Frequency Response |
75Hz －20kHz ± 3dB
|
| Power handling |
200W(RMS)400W(PEAK) |
| Sensitivity |
94dB(1W@1M) |
| Max@S.P.L |
116dB(PEAK/1M)
|
| LF section |
8"(200mm) woofer |
| 50mm(2in)coil |
| HF section |
1.4＂compression driver with |
| 34mm titanium diaphragm |
| Nominal impedance |
8 ohm |
| Output section |
2-channel |
| Dispersion pattern |
90°H×50°V |
| Finish |
black paint |
| Speaker cables |
1(+)1(-) |
| Input connectors |
2×NL4MP speakon |
| Dimensions |
272×443×273mm(W×H×D) |
| Package dimensions |
345×515×340mm/0.06cbm |
| Enclosure |
plywood |
| Net weight |
11kg |
| Gross weight |
13kg |
