Detailed Product Description
TYPE: |
Three Way Line Array Speaker Box |
SUB: |
Birch PLYWOOD CABINET |
SIZE: |
12"X2, 8"x2,3"x2 |
POWER: |
1900WATT RMS |
BRAND: |
CVR PRO AUDIO |
Component: |
Neodymium Drivers |
High Light: |
church audio equipment, church speaker systems |
3 Way Line Array Church Sound Systems Indoor And Outdoor Crusade Audio Amplifiers

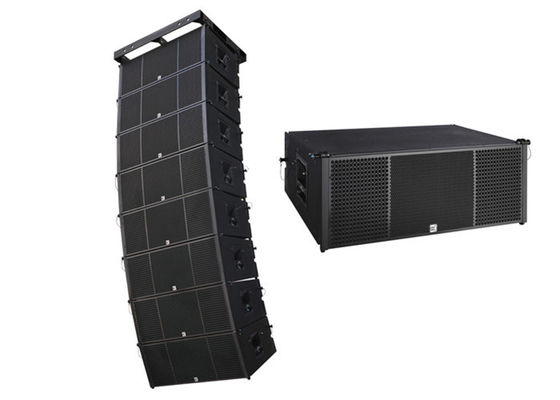

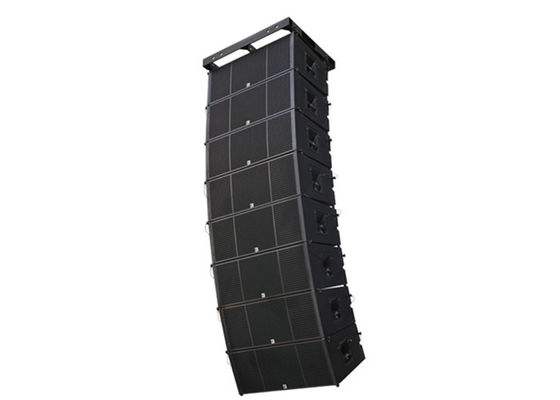

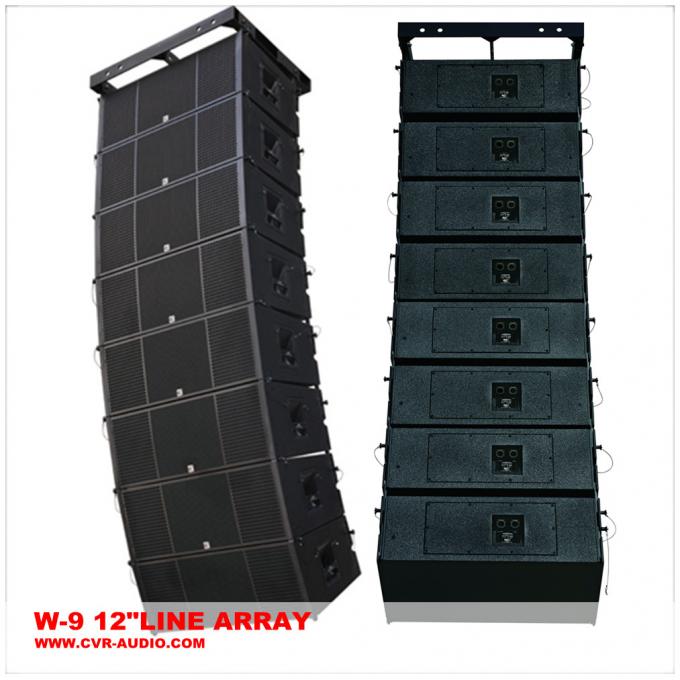

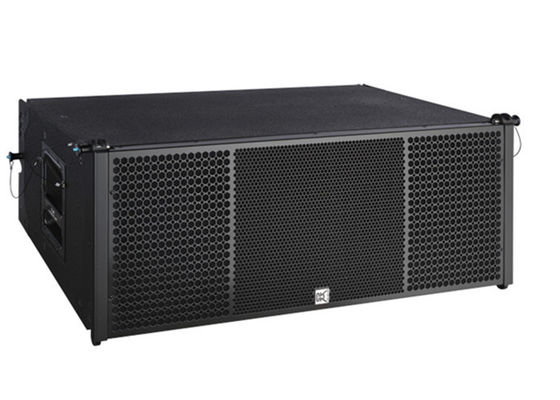

The W-9 line array system which is made of two 12''neodymium woofers, two high sensitivity 8'' midrange speaker units, two 3'' titanium neodymium compression drivers, the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front.
W-9 speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9 line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.
Type |
Line array system |
Frequency Response |
52Hz-20KHz±3dB
|
Power handling |
LF 2×600W(RMS)2×1200W(PEAK) |
MF 500W(RMS)1000W(PEAK) |
HF 200W(RMS)400W(PEAK) |
Sensitivity |
LF 104dB(1W@1M) |
MF 108dB(1W@1M) |
HF 111dB(1W@1M) |
Max@S.P.L |
LF 135dB(PEAK/1M) |
MF 135dB(PEAK/1M) |
HF 134dB(PEAK/1M) |
LF section |
2×12" (310mm)neodymium woofer |
75mm(3in) coil |
Nominal impedance |
8 ohm |
MF section |
2×8" (210mm)neodymium MF |
65mm(2.5in)coil |
Nominal impedance |
8 ohm |
HF section |
2×3"neodymium compression driver |
with 75mm titanium diaphragm |
Nominal impedance |
16 ohm |
Competitive Advantage:
1.High quality speaker drivers, high power handling capability, good sound quality, flyware easy for operation, beautiful mesh grille design,highest standards of workmanship and quality control.
2. A good solution for all sizes of indoor/outdoor live event,and indoors applications like disco,
night club, conference,school auditorium, and places of worship;
3.To avoid damage and scratch during transport,according to customers’requirement,we can put the items in extra cost flight cases.
4.Established in 2005, CVR PRO AUDIO has forged a reputation as one of the nation's most experienced and reliable manufacturer of pro sound equipment.
ABOUT CVR:
CVR PRO AUDIO is a cutting edge professional audio speaker manufacturer specializing in designing and manufacturing professional audio systems,including PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor, power amplifier and speaker management system. We provide these products for indoor and outdoor events, stadiums, churches, performing arts venues, theatres,conference rooms, meeting halls, and any space where audio system are needed.
CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at: www.cvr-audio.com
