Detailed Product Description
| Model: |
W-312B |
Type: |
Two-way,full Range System |
| Input Connectors: |
2×NL8MP Speakon |
Enclosure: |
Birch Plywood |
| Dispersion Pattern: |
110°H×7°V |
Output Section: |
3-channel |
| High Light: |
church audio system, church audio equipment |

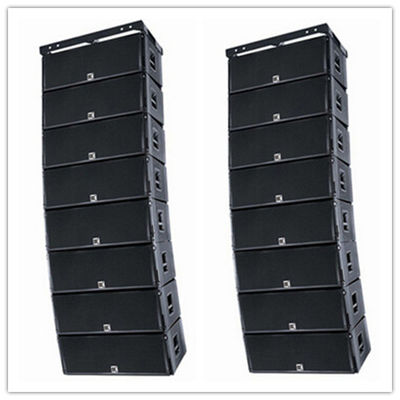

12 Inch Line Array Speaker Church Sound System Professional Audio Equipment
Quick Details:
- Place of Origin : Guangzhou , China
- Brand name : CVR
- Model Number: W-9
- System: full range system
- Power rating : 1900 watt
- Color: Black
- Type: Professional Loudspeaker
- Service Type: OEM or ODM
- Warranty : one year
Power handing :
W-312B is a line array system which is made of one 12＂neodymium housed in bandpass box to deliver ultra powerful bass driver, two 6.5＂neodymium midrange speaker units of well-designed of waves phase horn loading technique, two 3＂titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy.
| Model |
W-312B
|
| Type |
Line array system |
| Frequency Response |
55Hz-20KHz±3dB |
| Power handling |
LF 600W(RMS)1200W(PEAK) |
|
MF 300W(RMS)600W(PEAK)
|
| HF 200W(RMS)400W(PEAK) |
| Sensitivity |
LF 104dB(1W@1M) |
| MF 107dB(1W@1M) |
| HF 111dB(1W@1M) |
| Max@S.P.L |
LF 132dB(PEAK/1M) |
| MF 132dB(PEAK/1M) |
| HF 134dB(PEAK/1M) |
Specification:

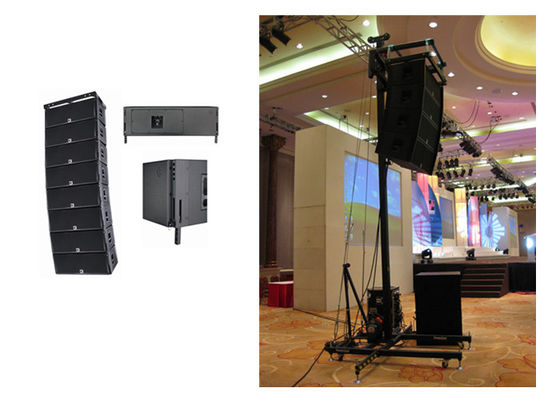

W-312B speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-312B line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.
| LF section |
1×12" (310mm)neodymium woofer |
| 75mm(3in)coil |
| Nominal impedance |
8 ohm |
| MF section |
2×6.5＂(170mm)neodymium MF |
| 50mm(2in)coil |
| Nominal impedance |
8 ohm |
| HF section |
2×3"neodymium compression driver |
| with 75mm titanium diaphragm |
| Nominal impedance |
16 ohm |
| Output section |
3-channel |
| Dispersion pattern |
110°H×7°V |
| Finish |
Water-proof,wear-resistant textured black paint |
| Array design |
Arrays of less than 3×W-312B will |
| provide poor dispersion control and |
| are neither recommended nor supported |
| Speaker cables |
LF 1(+)1(-) MF 2(+)2(-) HF 3(+)3(-) |
| Rigging system |
Please refer to the W-312B user |
| manual before any operation |
| Input connectors |
2×Neutrik Nl8 |
| Recommend crossover |
LF 60Hz-400Hz |
| MF 400Hz-1.8kHz |
| HF 1.8kHz-20KHz |
| Dimensions |
1116×380×530mm(W×H×D) |
| Package dimensions |
1190×450×600mm/0.34cbm |
| Enclosure |
Birch plywood |
| Net weight |
62kg |
| Gross weight |
66kg |
About us :
Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer specialized in producing professional audio equipment with an own brand “CVR ” since 2005. Our 5,000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.

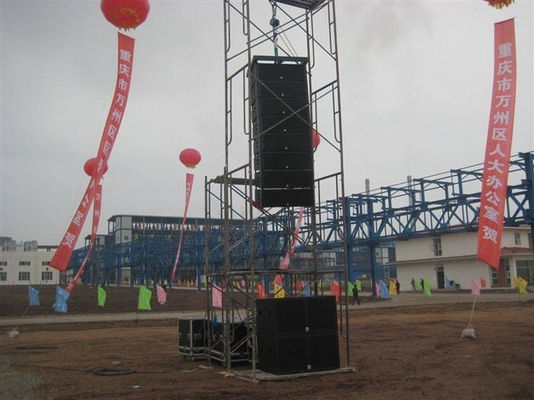

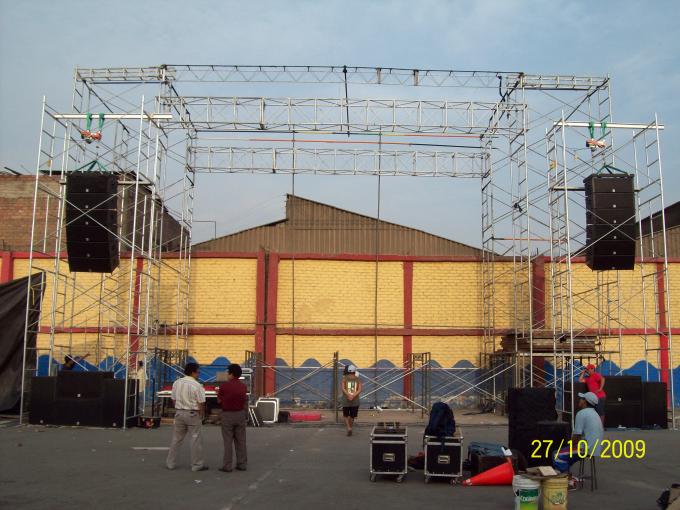

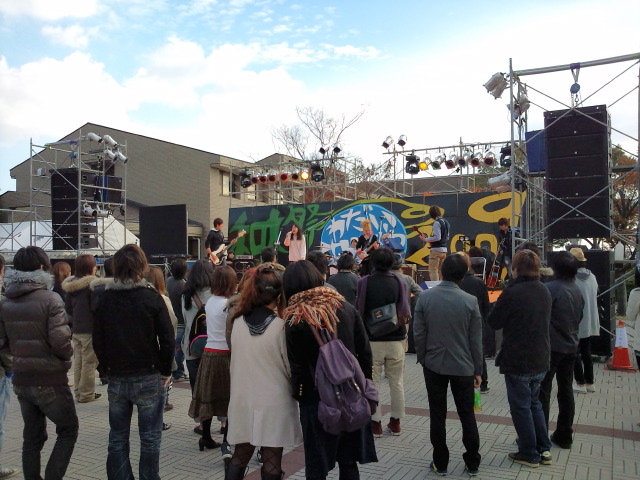

Project case:
