Detailed Product Description
| Model Number:: |
CV-218C |
Type: |
18 Inch Sub Woofer |
| Brand Name: |
CVR |
Frequency Response:: |
30Hz -150Hz ± 3dB |
| Power Handling:: |
1600W(RMS)3200W(PEAK) |
Nominal Impedance:: |
4 Ohm |
| Enclosure:: |
Plywood |
|
|
| High Light: |
professional audio software, high end subwoofer |

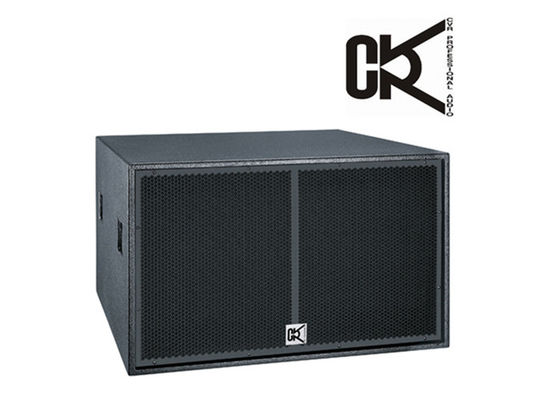

Sub Woofer Pro Audio Subwoofer 18 Inch For Outdoor Sound System , Super Pro Subwoofer
DESCRIPTION and APPLICATION

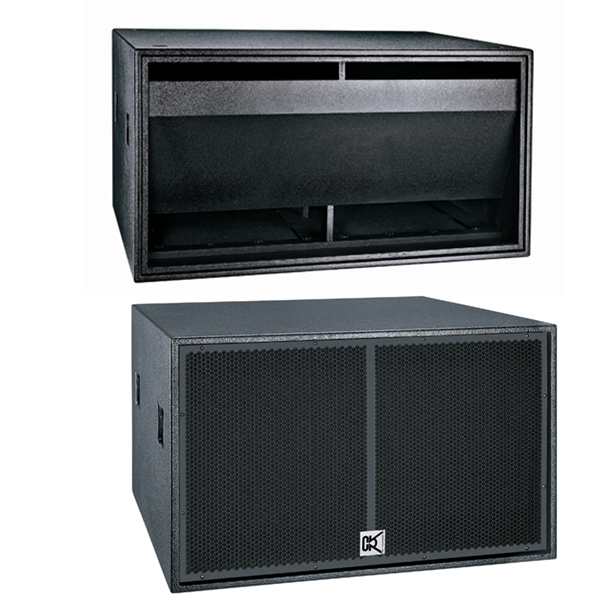

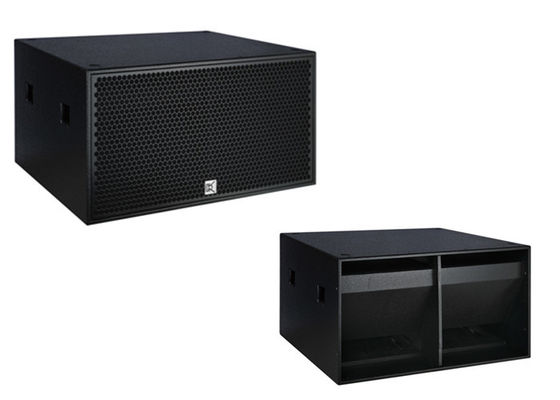

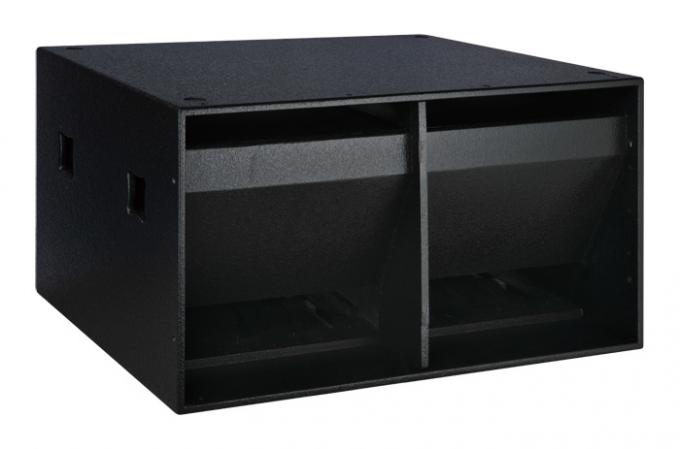

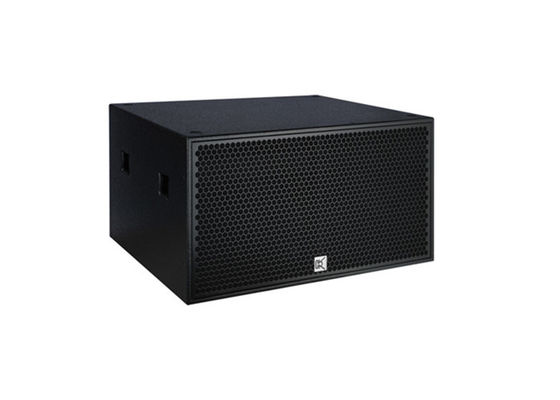

The subwoofer CV-218C is a high performance sub-bass system designed for large scale venues including touring and fixed installations. It features with twin 800 watt 18" (460mm) driver units with magnet structure and suspension engineered for maximum linear excursion. Its twin woofers are housed in bandpass box with bass horn loading to deliver ultra powerful bass energy. The CV-218C extends low-bass response and high efficiency, which make it an ideal partner for W-series line array systems wherever high power, extended bass is required. It can be ground stacked with W-8/W-6/W-312A line array systems and possesses high output capability with low frequency extension. In addition, CV-218C is ideal for fixed sound installations such as discos, nightclubs, halls, conference centers and commercial events.
| Model |
CV-218C
|
| Type |
Dual-drivers sub-bass system |
| Frequency Response |
30Hz -150Hz ± 3dB
|
| Power handling |
1600W(RMS)3200W(PEAK) |
| Sensitivity |
115dB(1W-1M) |
| Max-S.P.L |
147dB(PEAK/1M)
|
| Components |
2×18"(460mm) woofers 125mm(5in)coil |
| Nominal impedance |
4 ohm |
| Finish |
black paint |
| Speaker cables |
1(+)1(-) |
| Input connectors |
2×NL4MP speakon |
| Dimensions |
1138×600×790mm(W×H×D) |
| Package dimensions |
1210×670×860mm/0.7cbm |
| Enclosure |
plywood |
| Net weight |
108kg |
| Gross weight |
114kg |
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
To get the best goods with least money is not only customers favorites,but also CVR's target.
- Quality Wood Enlosure: Birch Plywood and Plywood.
- Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
- Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
- CE&RoHS certificate: for all products
- Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
- Strong packing: Quality carton boxs with firm belt and flight cases are required.
- Fast lead time: Sample order in stock and normally within two weeks for bulk production.
- Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
Features
- --Detachable front dolly panel
-
- --High fidelity, durability and light weight
-
- --Three-way large format line array module
-
- --15loudspeaker with neodymium magnet
-
- --3loudspeakers with neodymium magnetic ine array
-
- --Captive figging system intergrated in the cabinet design with good quality birch plywood
Our Unique Advantage
- --Small order accept
-
- --Green Paint, low pollution
-
- --Flat aluminum wire for the woofer
-
- --All are textured, durable birch plywood
-
- --Plug is Neutrik, endure repeatedly plug
-
- --Import loudspeaker cone, Good elasticity for woofer
Specifications
- 1.aluminum line array delay tower
- 2.heavy load but lightweight
- 3.durable and stable
- 4.SGS and CE approved
- 5.OEM ,ODM
Package and Delivery:
- --Carton or flycase
- --At buyers' option
