Detailed Product Description
| TYPE: |
Processor |
MODEL: |
PRO Series |
| Warranty: |
One Year Free Warranty |
PRO-240: |
2 Ins 4 Outs |
| PRO-360: |
3 Ins 6 Outs |
PRO-480: |
4 Ins 8 Outs |
| High Light: |
Digital audio processor, audio video processor |

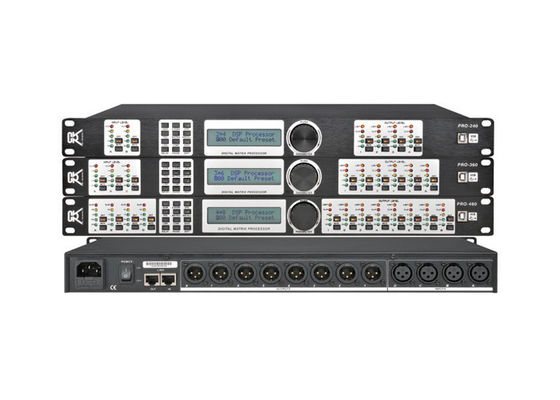

Stage Sound Audio Amplifier Digital Sound Processor Multichannel 4 in 8 out Sound Management System
Description:
24-bit,48kHz sampling rate,∑-△ AD / DA convertor,32 bits DSP chip.
Input processing includes Gain, Mute, Noise gate, high-cut, low-cut, 8 parameter EQ, Phase, Delay and so on (PRO-480 without Hi-cut Low-cut And PEQ)
Output processing includes crossover , 5 parameter EQ,Gain, Mute, compressor/Limiter, Phase, Delay and so on
Every input and output can do matrix assign flexibly
Adjustable PEQ frequency, Gain and bandwidth; we can choose style: PEAK,H-SHELVE,L-SHELVE
We can choose the style of all High-cut , Low-cut filter and Distributor unit: Butterworth,Linkwitz-Riley,Bessel;Choice slope is from -6dB/Oct to -48dB/Oct
Adjustable compressor / limiter threshold, ratio, attached time and release time
Adjustable threshold, attached time, release time of all noise gate
All delay module's delay time can reach over 682ms
Parameter setting of every channel can copy freely
Interput signal tester,output can choose pink noise,white noise , 20Hz-20kHz adjustable sine wave and adjustable signal range
2×20 word LCD , light and key-press incorporate design, unique one key-press process method, bring the users with convenient and rapid operating
32 user preset; status and every preset can save and adjust separately, with code protecting function
With PC , we can do remote control by USB and RS232 connector
256 units linkable by RS485, and do remote link controlling by center-control equipment
| Model |
PRO-240 |
PRO-360 |
PRO-480 |
| Configuration |
2 in 4 out |
3 in 6 out |
4 in 8 out |
| Power Supply |
AC 110V/220V 50Hz/60Hz |
AC 110V/220V 50Hz/60Hz |
AC 110V/220V 50Hz/60Hz |
| Product Dimension |
482×232×44mm(HxWxD) |
482×232×44mm(HxWxD) |
482×232×44mm(HxWxD) |
| Shipping Dimension |
605×310×110mm (HxWxD) |
605×310×110mm (HxWxD) |
605×310×110mm (HxWxD) |
| Net Weight |
4.1kg |
4.1kg |
4.1kg |
| Gross Weight |
5kg |
5kg |
5kg |
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
Our Unique Advantage:
- Small order accept
-
- Green Paint, low pollution
-
- Flat aluminum wire for the woofer
-
- All are textured, durable birch plywood
-
- Plug is Neutrik, endure repeatedly plug
-
- Import loudspeaker cone, good elasticity for woofer
Package and Delivery:
- --Carton or flycase
- --At buyers' option
CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at: www.cvr-audio.com
