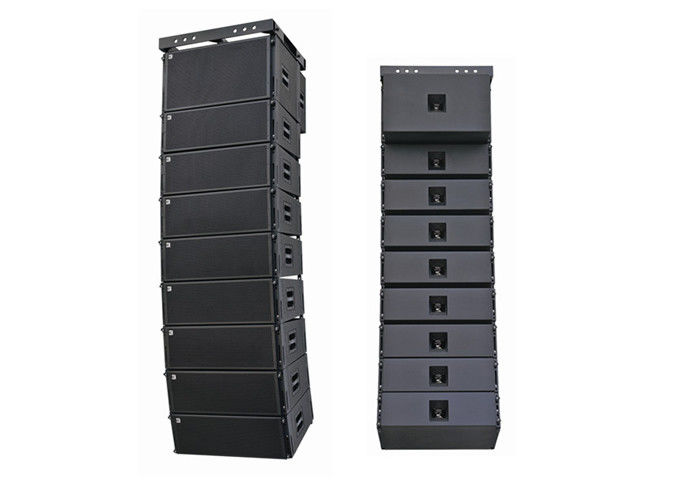

W-210A is a line array system which is made of two 10＂neodymium woofers, two 2＂titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required,a W-210A will integrate seamlessly with W-250A line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-210A is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-250A is dedicated high performance sub-bass system designed to augment the low frequency output of the W-210A, W-250A is a sub-bass enclosure which must be flown with W-210A. So its physical dimensions are identical to the W-210A and it is equipped with the same proprietary rigging system. It features with two 15＂woofers with magnet structure and suspensions engineered for maximum linear excursion.
Model |
W-210A/W-250A |
| Type |
Line array system |
| Line array sub-bass system(W-250A) |
| Frequency Response |
60Hz-20KHz±3dB |
| 40Hz-500Hz±3dB(W-250A) |
| Power handling |
LF 800W(RMS)1600W(PEAK) |
| HF 160W(RMS)320W(PEAK) |
| 1200W(RMS)2400W(PEAK)(W-250A) |
| Sensitivity |
LF 99dB(1W@1M) |
| HF 108dB(1W@1M) |
| 107dB(1W@1M)(W-250A) |
| Max@S.P.L |
LF 127dB(PEAK/1M) |
| HF 127dB(PEAK/1M) |
| 137dB(PEAK/1M)(W-250A) |
| LF section |
2×10"(260mm) neodymium woofer |
| 75mm(3in)coil |
| Components |
2×15"(380mm) woofers |
| 100mm(4in)coil(W-250A) |
| Nominal impedance |
16 ohm |
| 4 ohm(W-250A) |
| HF section |
2×2"neodymium compression driver |
| with 51mm titanium diaphragm |
| Nominal impedance |
16 ohm |
| Output section |
2-channel |
| Dispersion pattern |
110°H×9°V |
| Finish |
Water-proof,wear-resistant textured black paint |
| Array design |
Arrays of less than 3×W-210A will |
| provide poor dispersion control and |
| are neither recommended nor supported |
| Speaker cables |
LF 1(+)1(-) HF 2(+)2(-) |
| 1(+)1(-) (W-250A) |
| Rigging system |
Please refer to the W-210A user |
| manual before any operation |
| Input connectors |
2×NL4MP speakon |
| Recommend crossover |
LF 70Hz-2kHz |
| HF 2kHz-20KHz |
| 35Hz-120Hz(W-250A) |
| Dimensions |
855×293×600mm(W×H×D) |
| 855×440×820mm(W×H×D)(W-250A) |
| Package dimensions |
925×360×670mm/0.22cbm |
| 925×510×890mm/0.42cbm(W-250A) |
| Enclosure |
Birch plywood |
| Net weight |
42kg (W-210A)/ 72kg (W-250A) |
| Gross weight |
45kg (W-210A)/ 76kg (W-250A) |
