Detailed Product Description
Model: |
W-25 & W-12P(Active) |
Type: |
Line Array System |
LF Section: |
2×5"(135mm)woofer 35mm(1.5in)coil |
HF Section: |
1×1.4"compression Driver With34mm |
Dispersion Pattern: |
110º H×9º V |
Output Section: |
2-channel |
High Light: |
line array speaker system, powered speaker system |
Indoor Active Speaker System Self-Power Audio Equipment 2 channel Output
Quick Details:
- Place of Origin : Guangzhou , China
- Brand name : CVR
- Model Number: W-25 &W-12P
- System: full range system
- Power rating : 700watt
- Color: Black
- Type: Professional Loudspeaker
- Service Type: OEM or ODM
- Warranty : one year
Power handling:
Model |
W-25 & W-12P(Active) |
Type |
Line arry system
line arry sub-bass system(W-12P) |
Frequency Response |
80Hz-20KHz±3dB
45Hz-600Hz±3dB(W-12P) |
Power handling |
200W(RMS)400W(PEAK)
500W(RMS)1000W(PEAK)(W-12P) |
Power amp |
2X600W/4ohm + 1X900W/8ohm (W-12P) |
Amplifier type |
Switching power amp, class D circuit |
Other functions |
Bluetooth,DSP (W-12P) |
Sensitivity |
93dB(1W@1M)
100dB(1W@1M) (W-12P) |
Max@S.P.L |
112dB(PEAK/1M)
131dB(1W@1M)(W-12P) |
Specification:

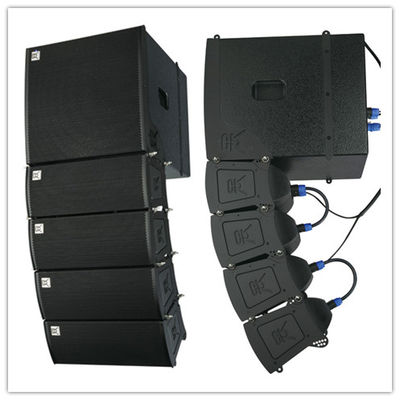

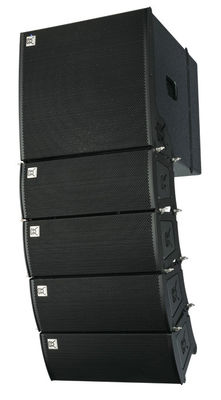

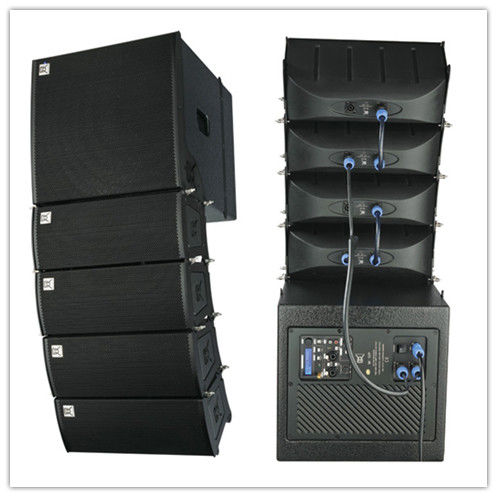

W-25 is a line array system which is made of two 5" woofers, a 1.4" compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-25 will integrate seamlessly with W-12P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-25 is very versatile and scalable for a wide range.

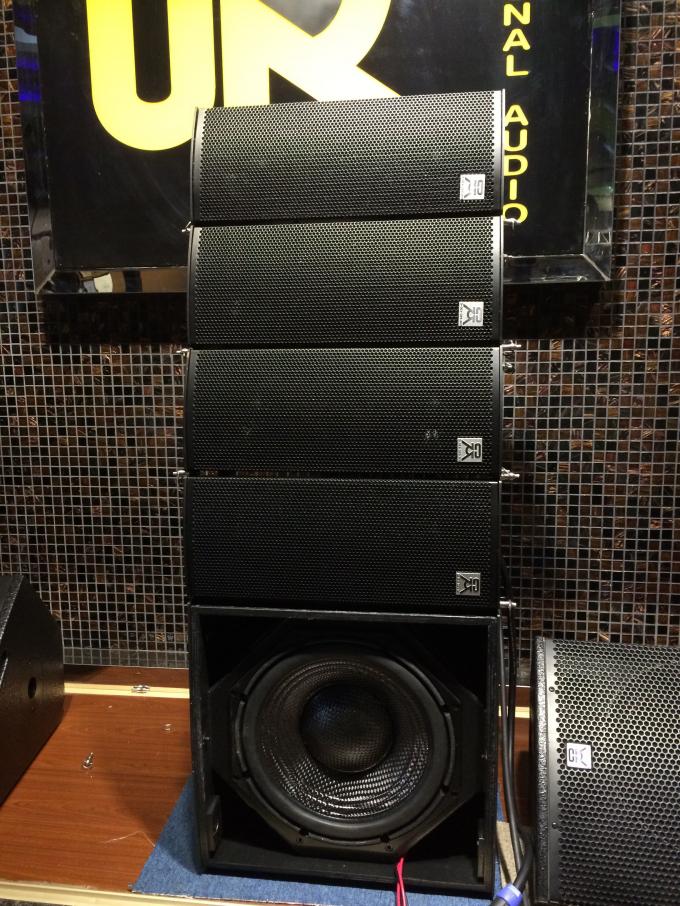

W-12P is a dedicated high performance sub-bass system designed to augment the low frequency output of W-25. The W-12P features a highly efficient power amp module and incorporate DSP. This efficient design enables the flown combination of W-12P and W-25.The physical dimensions of W-12P are identical to the W-25 and it's equipped with the same proprietary rigging system.It'S features with two 10 inch woofer with magnet structure and suspensions engineered for maximum.
HF section |
1×1.4"compression driver with34mm
titanium diaphragm
|
LF section |
2×5"(135mm)woofer 35mm(1.5in)coil
1×12"(310mm)woofer(W-12P)
100mm(4in)coil (W-12P) |
Nominal impedance |
16 ohm
8 ohm (W-12P) |
Output section |
2-channel |
Dispersion pattern |
110º H×9º V |
Surface finish |
Black paint |
Array design |
Arrays of less than 3×W-25 will provide
poor dispersion control and are neither
recommended nor supported |
Speaker cables |
1(+)1(-) Built in crossover |
Rigging system |
Please refer to the W-25 user's
manual before any operation |
Input connectors |
2×NL4MP speakon |
Recommend crossover |
80Hz-20KHz
40Hz-120Hz(W-12P) |
Dimensions |
410×163×248mm(W×H×D)
408×392×494mm(W×H×D)(W-12P) |
Package dimensions |
480×230×320mm/0.04cbm
480×460×565mm/0.1cbm(W-12P) |
Enclosure |
HLPE(W-25)/Plywood(W-12P) |
Net weight |
7.8kg(W-25)/25kg(W-12P) |
Gross weight |
9kg(W-25)/27.5kg(W-12P) |
About us :
Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer specialized in producing professional audio equipment with an own brand “CVR ” since 2005. Our 5,000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.

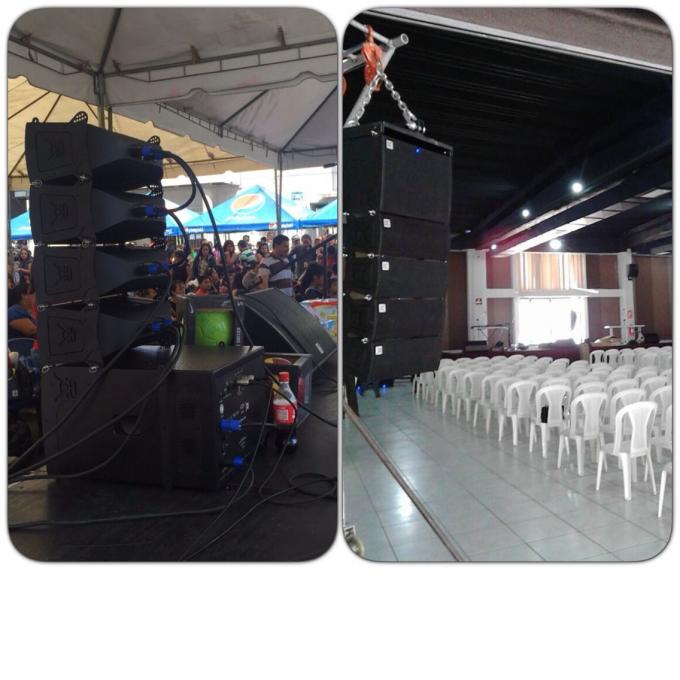

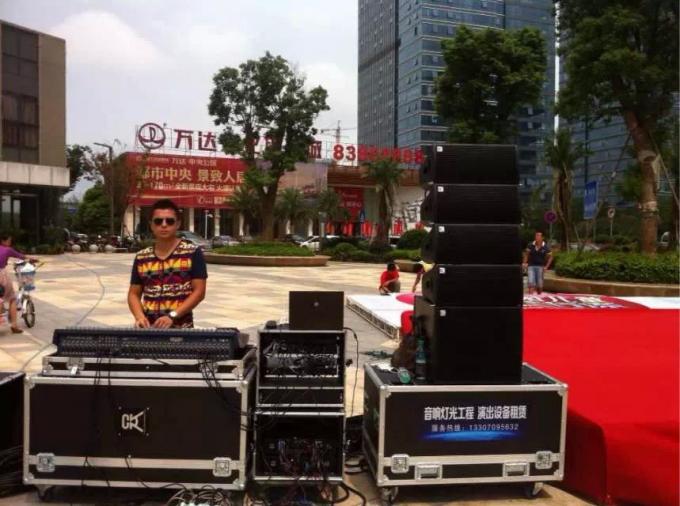

Project case:
