Detailed Product Description
Model: |
W-82C & W-15C/W-15CP(Active) |
Type: |
Line Array System |
LF Section: |
1×8"(210mm)woofer 50mm(2in)coil |
HF Section: |
1×1.75"compression Driver With44mm |
Dispersion Pattern: |
110º H×9º V |
Output Section: |
2-channel |
High Light: |
line array speaker system, powered speaker system |
Amplifier Model Active Speaker Line Array Pa System Professional
Quick Details:
- Place of Origin : Guangzhou , China
- Brand name : CVR
- Model Number: W-82C&W-15CP
- System: full range system
- Power rating : 750watt
- Color: Black
- Type: Professional Loudspeaker
- Service Type: OEM or ODM
- Warranty : one year
Power handling:
Model |
W-82C & W-15C/W-15CP(Active) |
Type |
Line arry system |
line arry sub-bass system(W-15C/W-15CP) |
Frequency Response |
70Hz-20KHz±3dB |
40Hz-500Hz±3dB(W-15C/W-15CP) |
Power handling |
250W(RMS)500W(PEAK) |
500W(RMS)1000W(PEAK)(W-15C/W15CP) |
Power amp |
2X600W/4ohm + 1X900W/8ohm(W-15CP) |
Amplifier type |
Switching power amp, class D circuit
|
Other functions |
Bluetooth,DSP (W-15CP) |
Sensitivity |
96dB(1W@1M) |
106dB(1W@1M)(W-15C/W15CP) |
Max@S.P.L |
116dB(PEAK/1M) |
130dB(1W@1M)(W-15C/W15CP) |
Specification:
W-82C is a line array system which is made of a 8"woofer, a 1.75"titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-82C will integrate seamlessly with W-15C or W-15CP line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-82C is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-15C/W-15CP is a dedicated high performance sub-bass system designed to augment the low frequency output of W-82C. W-15C/W-15CP is a sub-bass enclosure which must be flown with W-82C. So its physical dimensions are identical to the W-82C and it is equipped with the same proprietary rigging system. It features with a 15"woofer with magnet structure and suspensions engineered for maximum linear excursion. The W-15CP with Bluetooth features a highly efficient power amp module and incorporated DSP
LF section |
1×8"(210mm)woofer 50mm(2in)coil |
15"(380mm)woofer 100mm(4in)coil
(W-15C/W-15CP) |
HF section |
1×1.75"compression driver with44mm
titanium diaphragm |
Nominal impedance |
8 ohm(W-82C)& 8 ohn (W-15C/W-15CP) |
Output section |
2-channel |
Dispersion pattern |
110º H×9º V |
Surface finish |
Black paint |
Array design |
Arrays of less than 3×W-82C will
provide poor dispersion control and are
neither recommended nor supported |
Speaker cables |
1(+)1(-) Built in crossover |
Rigging system |
Please refer to the W-82C user's
manual before any operation |
Input connectors |
2×NL4MP speakon |
Recommend crossover |
70Hz-20KHz |
40Hz-100Hz(W-15C/W-15CP) |
Dimensions |
544×245×375mm(W×H×D) |
515×450×611mm(W×H×D)
(W-15C/W-15CP) |
Package dimensions |
615×315×445mm/0.09cbm |
585×520×680mm/0.22cbm
(W-15C/W-15CP) |
Enclosure |
HLPE(W-82C)/Plywood(W-15C/W-15CP) |
Net weight |
12.5kg(W-82C)/34kg(W-15C)/40kg(W-15CP) |
Gross weight |
14.5kg(W-82C)/37kg(W-15C)/43kg(W-15CP) |
About us :
Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer specialized in producing professional audio equipment with an own brand “CVR ” since 2005. Our 5,000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.

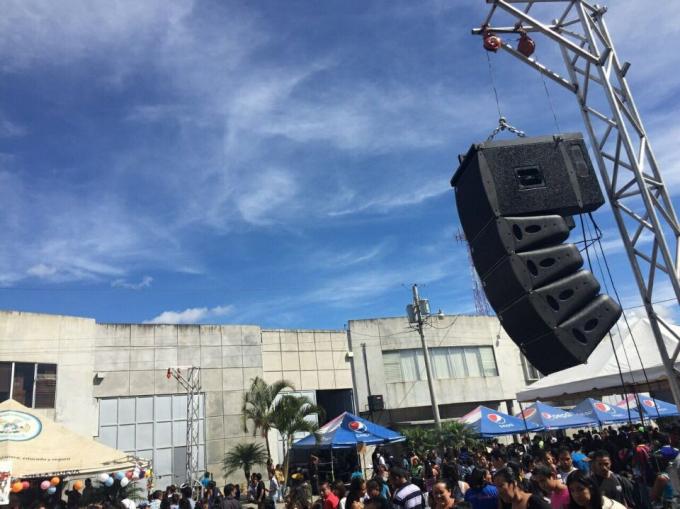

Project case:
