Detailed Product Description
Model: |
W-110 & W-118/W-118P(Active) |
Type: |
Line Array System |
LF Section: |
LF 400W(RMS)800W(PEAK) |
HF Section: |
HF 120W(RMS)240W(PEAK) |
Dispersion Pattern: |
110º H×9º V |
Output Section: |
2-channel |
High Light: |
active speaker system, powered speaker system |

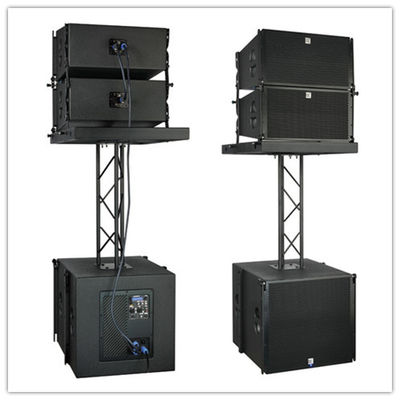

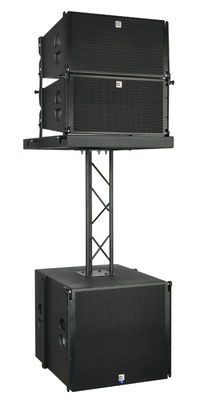

Portable Solar Power Active Line Array System Waterproof Speaker
Quick Details:
- Place of Origin : Guangzhou , China
- Brand name : CVR
- Model Number: W-110&W-118P
- System: full range system
- Power rating : 520 watt
- Color: Black
- Type: Professional Loudspeaker
- Service Type: OEM or ODM
- Warranty : one year
Power handling:
Model |
W-110 & W-118/W-118P(Active) |
Type |
Line array system |
line array sub-bass system(W-118/W-118P) |
Frequency Response |
65Hz-20KHz±3dB |
35Hz-500Hz±3dB(W-118/W-118P) |
Power handling |
LF 400W(RMS)800W(PEAK)
HF 120W(RMS)240W(PEAK) |
800W(RMS)1600W(PEAK)(W-118/W-118P) |
Power amp |
2X600W/4ohm + 1X900W/8ohm (W-118P) |
Amplifier type |
Switching power amp, class D circuit |
Other functions |
Bluetooth,DSP (W-118P) |
Sensitivity |
LF 96dB(1W@1M)
HF 108dB(1W@1M) |
109dB(1W@1M)(W-118/W-118P) |
Max@S.P.L |
LF 122dB(PEAK/1M)
HF 125dB(PEAK/1M) |
135dB(PEAK/1M)(W-118/W-118P) |
Specification:

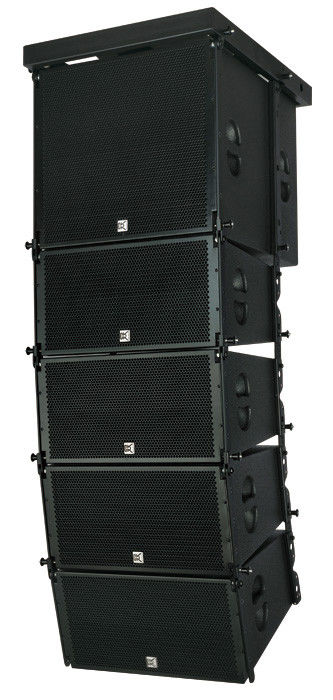

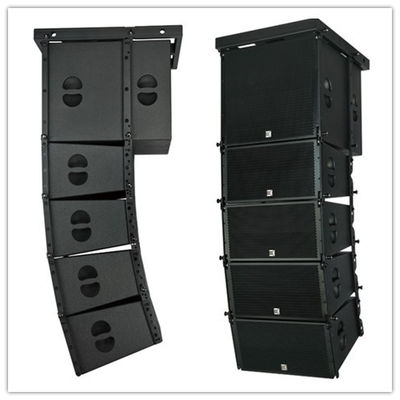

W-110 is a line array system which is made of one 10” neodymium woofers, two 1.75” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-110 will integrate seamlessly with W-118 or W-118P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-110 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-118/W-118P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-110, W-118/W-118P is a sub-bass enclosure which must be flown with W-110. Its physical dimensions are identical to the W-110 and it is equipped with the same proprietary rigging system. It features with a 18” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-118P with Bluetooth features a highly efficient power amp module and incorporated DSP.
LF section |
1×10"(260mm) neodymium woofer
75mm(3in)coil |
1×18"(460mm)woofer
100mm(4in)coil (W-118/W-118P) |
Nominal impedance |
8 ohm/8 ohm (W-118/W-118P) |
HF section |
2×1.75"compression driver with44mm
titanium diaphragm |
Nominal impedance |
16 ohm |
Output section |
2-channel |
Dispersion pattern |
110º H×9º V |
Surface finish |
Black paint |
Array design |
Arrays of less than 3×W-110 will
provide poor dispersion control and are
neither recommended nor supported |
Speaker cables |
LF1(+)1(-) HF 2(+)2(-) |
1(+)1(-) (W-118P) |
Rigging system |
Please refer to the W-110 user's
manual before any operation |
Input connectors |
2×NL4MP speakon |
Recommend crossover |
LF 70Hz-2KHz
HF 2KHz-20KHz |
35Hz-120Hz(W-118P) |
Dimensions |
522×595×450mm(W×H×D) |
522×510×650mm(W×H×D)
(W-118/ W-118P) |
Package dimensions |
592×665×520mm/0.15cbm |
592×735×720mm/0.39cbm
(W-118/ W-118P) |
Enclosure |
Birch Plywood |
Net weight |
21kg(W-110)/40kg(W-118)/46kg(W-118P) |
Gross weight |
23kg(W-110)/43kg(W-118)/49kg(W-118P) |
About us :
Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer specialized in producing professional audio equipment with an own brand “CVR ” since 2005. Our 5,000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.

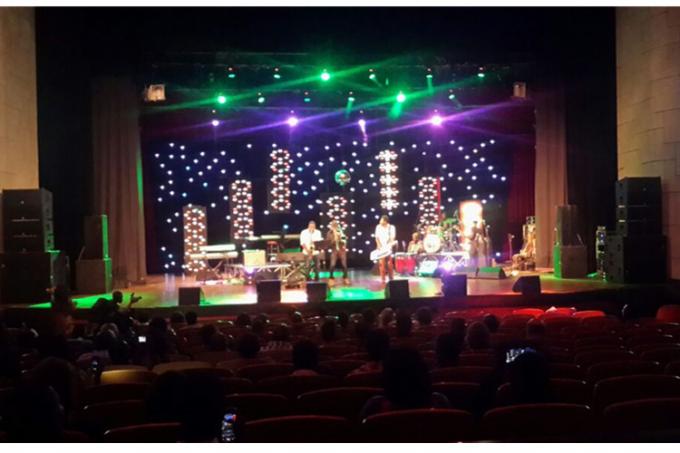

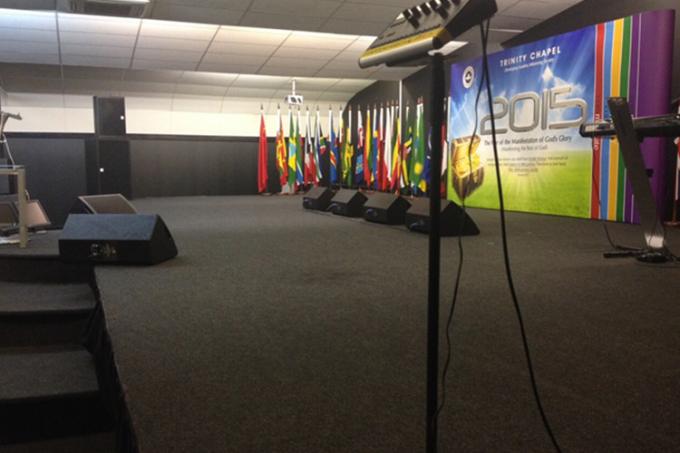

Project case:
