Detailed Product Description
| Model Number:: |
W-210A&W-250A |
Type: |
Passive Two Way Line Array Speaker System |
| Brand Name:: |
CVR |
Power:: |
1200W(RMS)2400W(PEAK)(W-250A) |
| Input Connectors:: |
2-Neutrik NL4 |
Size: |
10" Neodymium Woofers |
| Finish: |
Water-proof,wear-resistant |
|
|
| High Light: |
powered speaker system, line array sound system |
Party Show Active Speaker Box Line Array System With 15 Inch Subwoofer
DESCRIPTION and APPLICATION

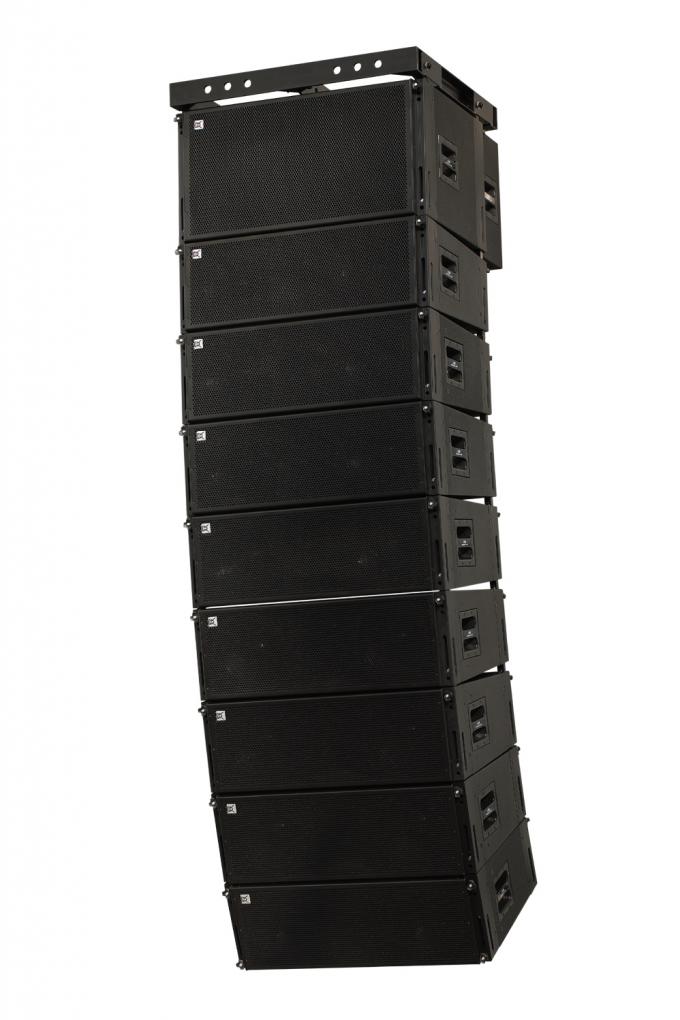

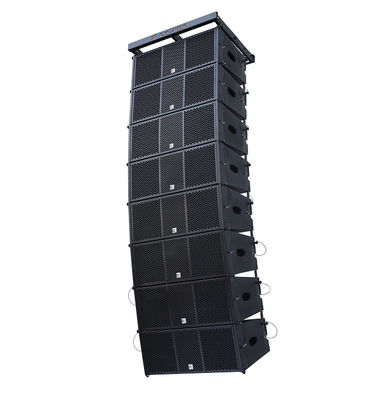

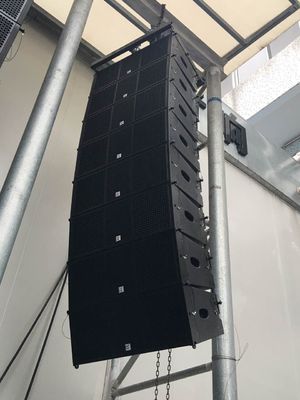

W-210A is a line array system which is made of two 10” neodymium woofers, two 2” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required, a W-210A will integrate seamlessly with W-250A line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-210A is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-250A is dedicated high performance sub-bass system designed to augment the low frequency output of the W-210A, W-250A is a sub-bass enclosure which must be flown with W-210A. So its physical dimensions are identical to the W-210A and it is equipped with the same proprietary rigging system. It features with twin 15” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion.
Model |
W-210A/W-250A |
| Type |
Line array system |
| Line array sub-bass system(W-250A) |
| Frequency Response |
60Hz-20KHz±3dB |
| 40Hz-150Hz±3dB(W-250A) |
| Power handling |
LF 600W(RMS)1200W(PEAK) |
| HF 160W(RMS)320W(PEAK) |
| 1200W(RMS)2400W(PEAK)(W-250A) |
| Sensitivity |
LF 99dB(1W-1M) |
| HF 108dB(1W-1M) |
| 112dB(1W-1M)(W-250A) |
| Max-S.P.L |
LF 127dB(PEAK/1M) |
| HF 127dB(PEAK/1M) |
| 143dB(PEAK/1M)(W-250A) |
| LF section |
2×10"(260mm) neodymium woofer |
| 75mm(3in)coil |
| Components |
2×15"(380mm) woofers |
| 100mm(4in)coil(W-250A) |
| Nominal impedance |
16 ohm |
| 4 ohm(W-250A) |
| HF section |
2×2"neodymium compression driver |
| with 51mm titanium diaphragm |
| Nominal impedance |
16 ohm |
| Output section |
2-channel |
| Dispersion pattern |
110°H×9°V |
| Finish |
Water-proof,wear-resistant textured black paint |
| Array design |
Arrays of less than 3×W-210A will |
| provide poor dispersion control and |
| are neither recommended nor supported |

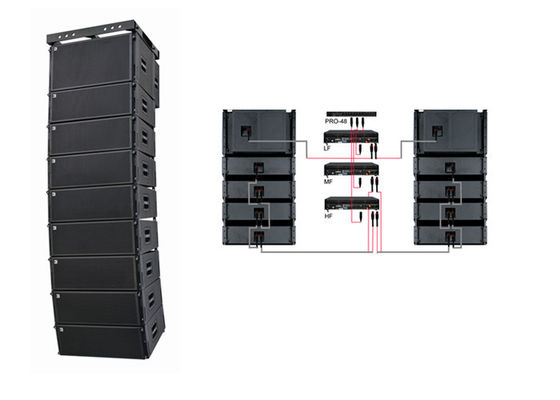

| Speaker cables |
LF 1(+)1(-) HF 2(+)2(-) |
| 1(+)1(-) (W-250A) |
| Rigging system |
Please refer to the W-210A user |
| manual before any operation |

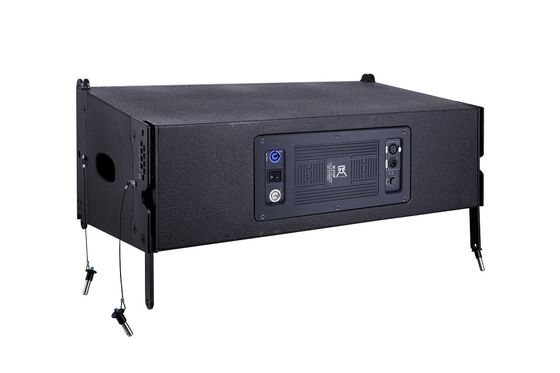

| Input connectors |
2×NL4MP speakon |
| Recommend crossover |
LF 70Hz-2kHz |
| HF 2kHz-20KHz |
| 35Hz-120Hz(W-250A) |
| Dimensions |
855×293×600mm(W×H×D) |
| 855×440×820mm(W×H×D)(W-250A) |
| Package dimensions |
925×360×670mm/0.22cbm |
| 925×510×890mm/0.42cbm(W-250A) |
| Enclosure |
Birch plywood |
| Net weight |
42kg (W-210A)/ 72kg (W-250A) |
| Gross weight |
45kg (W-210A)/ 76kg (W-250A) |
Features
- Detachable front dolly panel
-
- High fidelity, durability and light weight
-
- Three-way large format line array module
-
- 15loudspeaker with neodymium magnet
-
- 3loudspeakers with neodymium magnetic ine array
-
- Captive figging system intergrated in the cabinet design with good quality birch plywood
Our Unique Advantage
- Small order accept
-
- Green Paint, low pollution
-
- Flat aluminum wire for the woofer
-
- All are textured, durable birch plywood
-
- Plug is Neutrik, endure repeatedly plug
-
- Import loudspeaker cone, Good elasticity for woofer
Package&Delivery
--Carton or flycase
--At buyers' option
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Factory is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
