Detailed Product Description
Size: |
8 Inch Neodymium Woofers |
Color: |
Black |
Type: |
Active Mini Line Array |
Apply: |
Indoor Shows,church,small Show,sound Events |
Outlooking: |
Textured Black Paint |
Feature: |
Water-Proof And Durable |
High Light: |
active speaker system, line array speaker system |
8 Inch Active Line Array System , Line Array Speaker Box CE RoHS
Specification:

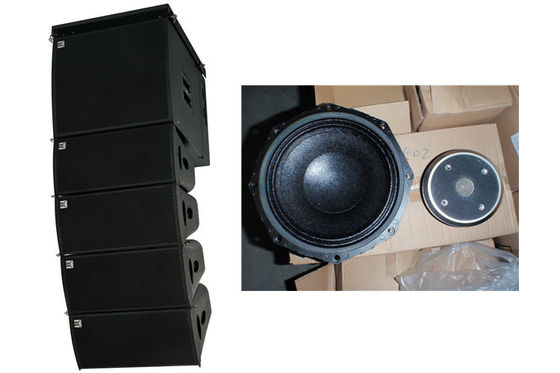

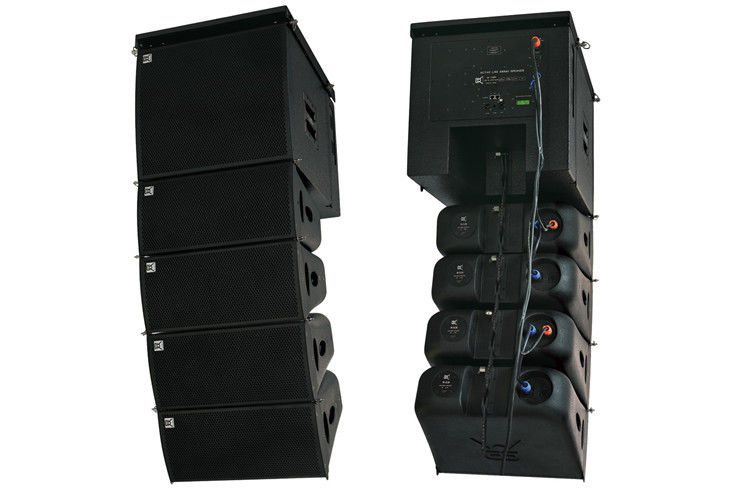

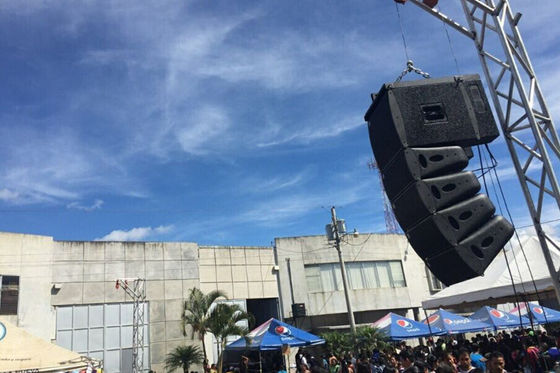

W-82C is a line array system which is made of a 8"woofer, a 1.75"titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-82C will integrate seamlessly with W-15C or W-15CP line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-82C is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

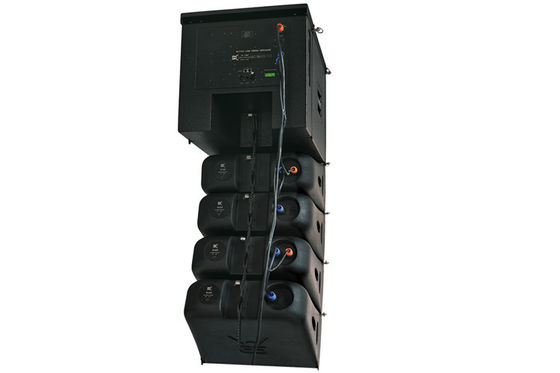

W-15C/W-15CP is a dedicated high performance sub-bass system designed to augment the low frequency output of W-82C. W-15C/W-15CP is a sub-bass enclosure which must be flown with W-82C. So its physical dimensions are identical to the W-82C and it is equipped with the same proprietary rigging system. It features with a 15"woofer with magnet structure and suspensions engineered for maximum linear excursion. The W-15CP with Bluetooth features a highly efficient power amp module and incorporated DSP.
Model
|
W-82C & W-15C/W-15CP(Active)
|
Type
|
Line arry system
|
line arry sub-bass system(W-15C/W-15CP)
|
Frequency Response
|
70Hz-20KHz±3dB
|
40Hz-500Hz±3dB(W-15C/W-15CP)
|
Power handling
|
250W(RMS)500W(PEAK)
|
500W(RMS)1000W(PEAK)(W-15C/W15CP)
|
Power amp
|
2X600W/4ohm + 1X900W/8ohm(W-15CP)
|
Amplifier type
|
Switching power amp, class D circuit
|
Other functions
|
Bluetooth,DSP (W-15CP)
|
Sensitivity
|
96dB(1W@1M)
|
106dB(1W@1M)(W-15C/W15CP)
|
Max@S.P.L
|
116dB(PEAK/1M)
|
130dB(1W@1M)(W-15C/W15CP)
|
LF section
|
1×8"(210mm)woofer 50mm(2in)coil
|
15"(380mm)woofer 100mm(4in)coil
(W-15C/W-15CP)
|
HF section
|
1×1.75"compression driver with44mm
titanium diaphragm
|
Nominal impedance
|
8 ohm(W-82C)& 8 ohn (W-15C/W-15CP)
|
Output section
|
2-channel
|
Dispersion pattern
|
110º H×9º V
|
Surface finish
|
Black paint
|
Array design
|
Arrays of less than 3×W-82C will
provide poor dispersion control and are
neither recommended nor supported
|
Speaker cables
|
1(+)1(-) Built in crossover
|
Rigging system
|
Please refer to the W-82C user's
manual before any operation
|
Input connectors
|
2×NL4MP speakon
|
Recommend crossover
|
70Hz-20KHz
|
40Hz-100Hz(W-15C/W-15CP)
|
Dimensions
|
544×245×375mm(W×H×D)
|
515×450×611mm(W×H×D)
(W-15C/W-15CP)
|
Package dimensions
|
615×315×445mm/0.09cbm
|
585×520×680mm/0.22cbm
(W-15C/W-15CP)
|
Enclosure
|
HLPE(W-82C)/Plywood(W-15C/W-15CP)
|
Net weight
|
12.5kg(W-82C)/34kg(W-15C)/40kg(W-15CP)
|
Gross weight
|
14.5kg(W-82C)/37kg(W-15C)/43kg(W-15CP)
|
|
|
