Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker

Certifications
Good Quality Line Array Speakers on sale Good Quality Active Line Array System on sale
Amazing quality,super value from me, a end user and dealer.with Quality and clear voice

—— Sifiso Kinyabo Zambia

best sound system manufacturer in China, Cvr systems are seriously awesome.

—— Joseph Kenya

they have best line array system in China,with super and heavy deep sound,for my concert events they doing fantastic.

—— Johnny Vietnam

I'm Online Chat Now

Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker

Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker supplier Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker supplier Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker supplier Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker supplier

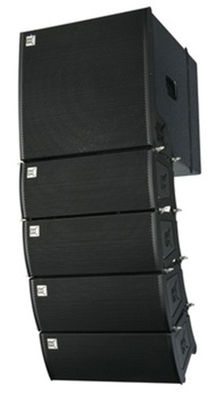

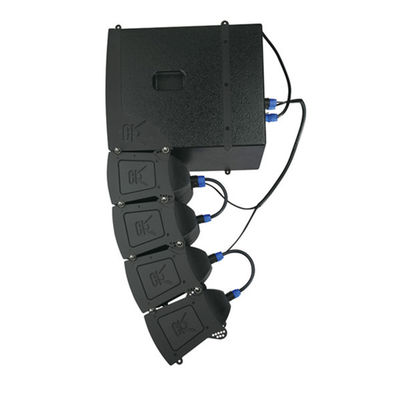

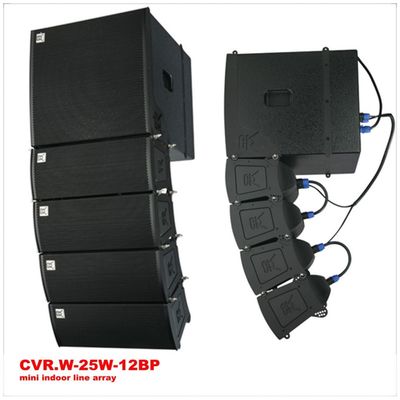

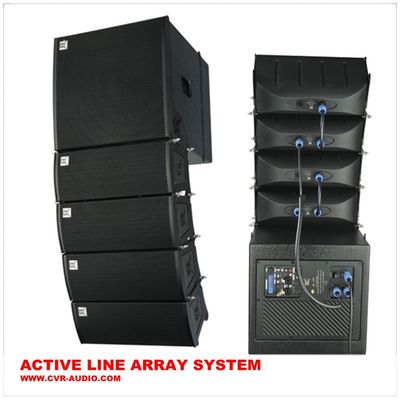

Large Image :  Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: W-25/W-12P

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: W-25/W-12P Type: Active Line Array Speaker System
Brand Name: CVR Power:: 160watt RMS Lf
Input Connectors: 2×NL4MP Speakon Dispersion Pattern: 110º H×9º V
Finish: Black Paint

 Neuesten Mini Active Line Array System Club Ktv Sound 5 Inch Drivers For Indoor Party



DESCRIPTION and APPLICATION:



W-25 is a line array system which is made of two 5"woofers, a 1.4"titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required,a W-25 will integrate seamlessly with W-102P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-25 is veryversatile and scalable for a wide range of applications in touring performance,corporate and fixed installation fields.

W-102P is a dedicated high performance sub-bass system designed to augment the low frequency output of W-25. The W-102P features a highly efficient power amp  module and incorporate DSP. This efficient design enables the flown combination of W-102P and W-25.The physical dimensions of W-102P are identical to the W-25 and it's equipped with the same proprietary rigging system.It's features with two 10"inch woofers with magnet structure and suspensions engineered for maximum linear excursion.





Model

W-25 & W-102P

Type Line array system

Line array sub-bass system(W-102P)

Frequency Response 90Hz-20KHz±3dB
45Hz-150Hz±3dB(W-102P)
Power handing LF 160W(RMS)320W(PEAK)

HF 60W(RMS)120W(PEAK)

400W(RMS)800W(PEAK)(W-102P)
Sensitivity LF 92dB(1W-1M)
HF 108dB(1W-1M)
103dB(1W-1M)(W-102P)
Max-S.P.L LF 114dB(PEAK/1M)
HF 126dB(PEAK/1M)
129dB(PEAK/1M)(W-102P)
LF section 2×5"(135mm) woofer
35mm(1.5in)coil
Components 2×10"(260mm)woofers
50mm(2in)coil(W-102P)
Nominal impedance 16 ohm
4 ohm(W-102P)
HF section 1×1.4"compression driver
with 34mm titanium diaphragm
Nominal impedance 16 ohm
Output section 2-channel
Dispersion pattern 110°H×9°V
Finish Black paint
Array design Arrays of less than 3×W-25 will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables 1(+)1(-)Built in crossover

Rigging system Please refer to the W-25 user
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover 80Hz-20KHz

42Hz-120Hz(W-102P)
Dimensions 410×163×248mm(W×H×D)
408×300×493mm(W×H×D)(W-102P)
Package dimensions 480×230×320mm/0.04cbm
480×370×560mm/0.1cbm(W-102P)
Enclosure PU(W-25)/Plywood(W-102P)
Net weight 7.8kg(W-25) / 23kg (W-102P)
Gross weight 9kg(W-25) / 25kg (W-102P)







 CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.


Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker
Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker

Wedding Party Sound Mini Line Array 5 Inch Sound With Sub Bass Selfpowered Speaker

Brand Promises:





To get the best goods with least money is not only customers favorites,but also CVR's target.

  • Quality Wood Enlosure: Birch Plywood and Plywood.
  • Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  • Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  • CE&RoHS certificate: for all products
  • Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  • Strong packing: Quality carton boxs with firm belt and flight cases are required.
  • Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  • Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.

Specifications

1.aluminum line array delay tower
2.heavy load but lightweight
3.durable and stable
4.SGS and CE approved
5.OEM ,ODM
