Detailed Product Description
| Model Number:: |
W-8 |
Type: |
Passive Three Way Line Array Speaker System |
| Brand Name:: |
CVR |
Power:: |
HF 200W(RMS)400W(PEAK) |
| Input Connectors:: |
2-Neutrik NL8 |
Enclosure: |
Birch Plywood |
| Finish: |
Water-proof,wear-resistant Textured Black Paint |
|
|
Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers
DESCRIPTION and APPLICATION

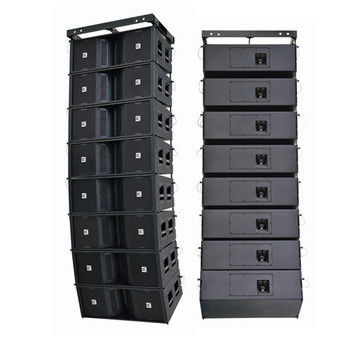

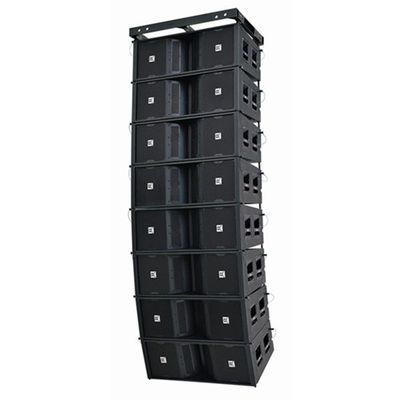

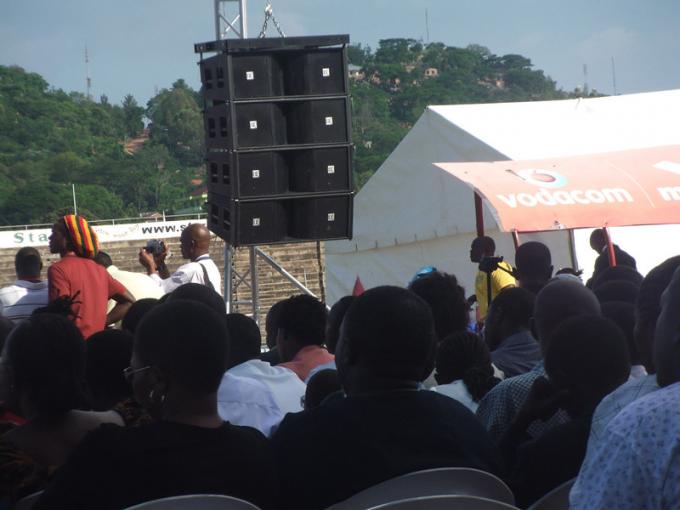

The W-8 is a line array system which is made of two 12” neodymium woofers, four 6.5” midrange speaker units, two 3” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi-speaker combined to produce accurate directivity and maximum dynamic impact. Its midrange speaker units are beset in treble horn board and two waves guide plates are set in between to eliminate its interfere.Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-8 is a 3-way, full range system and may be used without subwoofers for many applications. Also it may be complemented by ground stacked subwoofer CVR T-182/CV-218B , which brings superb line array performance to large stadiums, big outdoor concerts, commercial events,jbl similar line array etc.
| Model |
W-8
|
| Type |
Line array system |
| Frequency Response |
52Hz-20KHz±3dB
|
| Power handling |
LF 2×600W(RMS)2×1200W(PEAK) |
| MF 600W(RMS)1200W(PEAK) |
| HF 200W(RMS)400W(PEAK) |
| Sensitivity |
LF 104dB(1W-1M) |
| MF 107dB(1W-1M) |
| HF 111dB(1W-1M) |
| Max-S.P.L |
LF 135dB(PEAK/1M) |
| MF 135dB(PEAK/1M) |
| HF 134dB(PEAK/1M) |
| LF section |
2×12" (310mm)neodymium woofer |
| 75mm(3in) coil |
| Nominal impedance |
8 ohm |
| MF section |
4×6.5" (170mm)neodymium MF |
| 50mm(2in)coil |
| Nominal impedance |
8 ohm |
| HF section |
2×3"neodymium compression driver |
| with 75mm titanium diaphragm |
| Nominal impedance |
16 ohm |
| Output section |
3-channel |
| Dispersion pattern |
110°H×7.5°V |
| Finish |
Water-proof,wear-resistant textured black paint |
| Array design |
Arrays of less than 3×W-8 will |
| provide poor dispersion control and |
| are neither recommended nor supported |
| Speaker cables |
LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-) |
| Rigging system |
Please refer to the W-8 user |
| manual before any operation |
| Input connectors |
2×Neutrik NL8 |
| Recommend crossover |
LF 60Hz-600Hz |
| MF 600Hz-1.8kHz |
| HF 1.8kHz-20KHz |
| Dimensions |
1100×405×595mm(W×H×D) |
| Package dimensions |
1170×475×665mm/0.37cbm |
| Enclosure |
Birch Plywood |
| Net weight |
60kg |
| Gross weight |
64kg |
Features
--Detachable front dolly panel
--High fidelity, durability and light weight
--Three-way large format line array module
--15loudspeaker with neodymium magnet
--3loudspeakers with neodymium magnetic ine array
--Captive figging system intergrated in the cabinet design with good quality birch plywood
Our Unique Advantage
--Small order accept
--Green Paint, low pollution
--Flat aluminum wire for the woofer
--All are textured, durable birch plywood
--Plug is Neutrik, endure repeatedly plug
--Import loudspeaker cone, Good elasticity for woofer
Package&Deliver

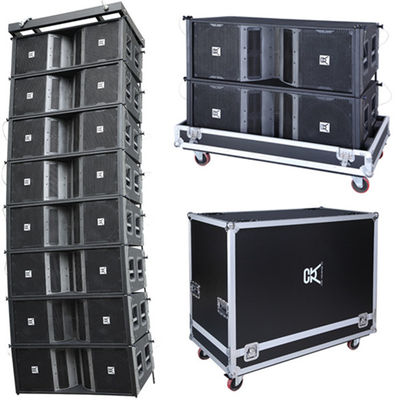

--Carton or flycase
--At buyers' option
