Single 10 Inch Active Line Array Speaker System Birch Plywood

Single 10 Inch Active Line Array Speaker System Birch Plywood supplier Single 10 Inch Active Line Array Speaker System Birch Plywood supplier Single 10 Inch Active Line Array Speaker System Birch Plywood supplier Single 10 Inch Active Line Array Speaker System Birch Plywood supplier

Large Image :  Single 10 Inch Active Line Array Speaker System Birch Plywood

Product Details:

Place of Origin: China
Brand Name: CVR PRO AUDIO
Certification: CE
Model Number: W-110

Payment & Shipping Terms:

Minimum Order Quantity: 1 system
Packaging Details: CARTONS
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000/month
Detailed Product Description
Type: Two Way Full Range Line Array System Size: 10"x1,1.75"x2
Speaker Power: 400watt LF, 120watt HF, 800watt SUB Cabinet: Birch Plywood
Power Amp: 600wattx2,900watt X1



Single 10 Inch Active Line Array Speaker System Birch Plywood





SPECIFICATION:

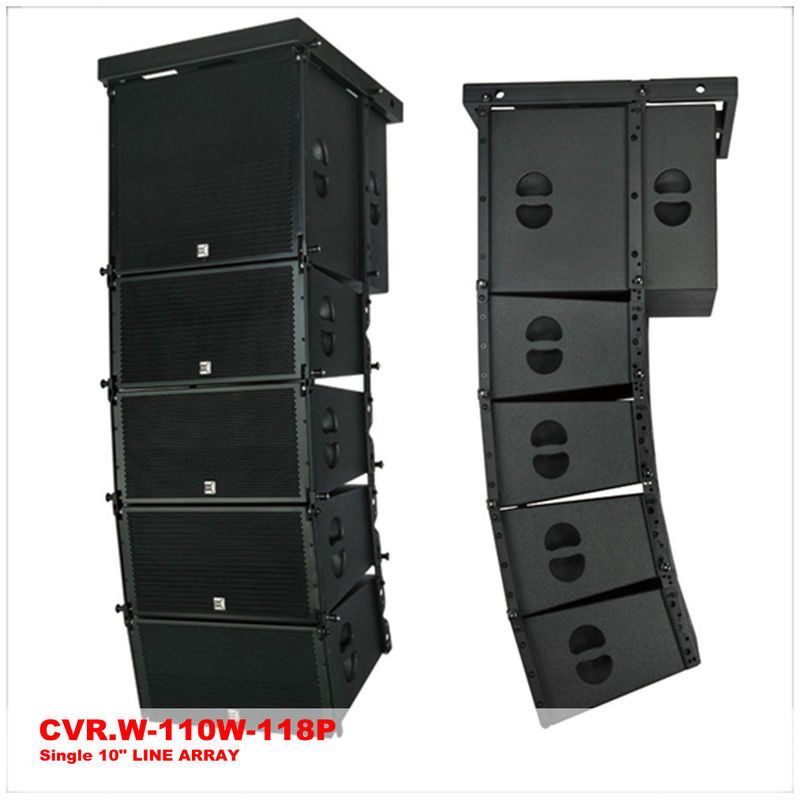

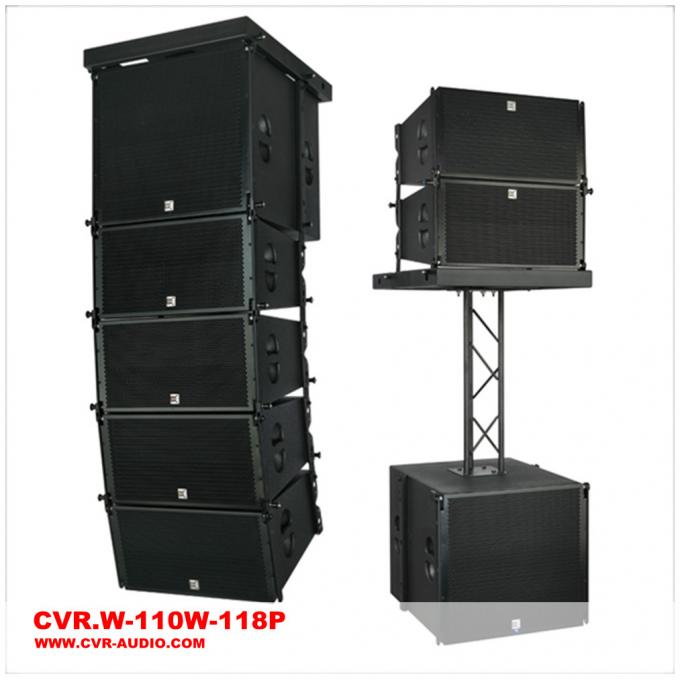

   W-110 is a line array system which is made of one 10” neodymium woofers, two 1.75” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-110 will integrate seamlessly with W-118 or W-118P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-110 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
     W-118/W-118P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-110, W-118/W-118P is a sub-bass enclosure which must be flown with W-110. Its physical dimensions are identical to the W-110 and it is equipped with the same proprietary rigging system. It features with a 18” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-118P with Bluetooth features a highly efficient power amp module and incorporated DSP.



Single 10 Inch Active Line Array Speaker System Birch Plywood



Single 10 Inch Active Line Array Speaker System Birch Plywood

Single 10 Inch Active Line Array Speaker System Birch Plywood

Model W-110 & W-118/W-118P(Active)
Type Line array system
line array sub-bass system(W-118/W-118P)
Frequency Response 65Hz-20KHz±3dB
35Hz-500Hz±3dB(W-118/W-118P)
Power handling LF 400W(RMS)800W(PEAK)
HF 120W(RMS)240W(PEAK)
800W(RMS)1600W(PEAK)(W-118/W-118P)
Power amp 2X600W/4ohm + 1X900W/8ohm (W-118P)
Amplifier type Switching power amp, class D circuit
Other functions Bluetooth,DSP (W-118P)
Sensitivity LF 96dB(1W@1M)
HF 108dB(1W@1M)
109dB(1W@1M)(W-118/W-118P)
Max@S.P.L LF 122dB(PEAK/1M)
HF 125dB(PEAK/1M)
135dB(PEAK/1M)(W-118/W-118P)
LF section 1×10"(260mm) neodymium woofer
75mm(3in)coil
1×18"(460mm)woofer
100mm(4in)coil (W-118/W-118P)
Nominal impedance 8 ohm/8 ohm (W-118/W-118P)
HF section 2×1.75"compression driver with44mm
titanium diaphragm
Nominal impedance 16 ohm
Output section 2-channel
Dispersion pattern 110º H×9º V
Surface finish Black paint
Array design Arrays of less than 3×W-110 will
provide poor dispersion control and are
neither recommended nor supported
Speaker cables LF1(+)1(-) HF 2(+)2(-)
1(+)1(-) (W-118P)
Rigging system Please refer to the W-110 user's
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover LF 70Hz-2KHz
HF 2KHz-20KHz
35Hz-120Hz(W-118P)
Dimensions 522×595×450mm(W×H×D)
522×510×650mm(W×H×D)
(W-118/ W-118P)
Package dimensions 592×665×520mm/0.15cbm
592×735×720mm/0.39cbm
(W-118/ W-118P)
Enclosure Birch Plywood
Net weight 21kg(W-110)/40kg(W-118)/46kg(W-118P)
Gross weight 23kg(W-110)/43kg(W-118)/49kg(W-118P)
