Detailed Product Description
| Model Number:: |
CV-152M&CV-152MP |
Type: |
Two-way,full Range Monitor System |
| Frequency Response: |
48Hz-18kHz±3dB |
Power:: |
450W(RMS)900W(PEAK) |
| Output Section: |
2-channel |
Dispersion Pattern: |
60°H×40°V |
| Finish: |
Black Paint |
Input Connectors: |
2×NL4MP Speakon |
| High Light: |
floor monitor speakers, audio monitor speakers |

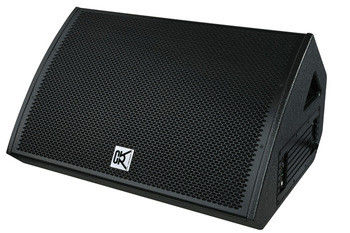

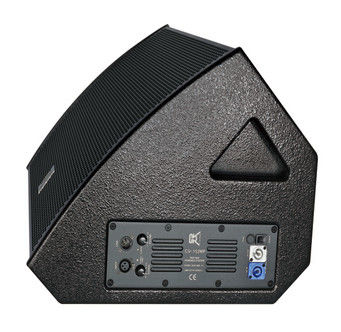

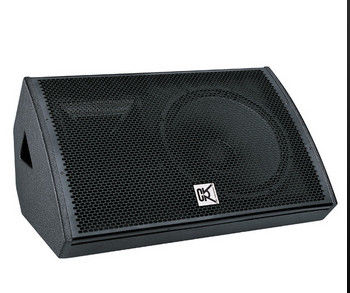

Professional Black Passive / Active Stage Monitors With 15 Inch Titanium Driver
DESCRIPTION and APPLICATION:

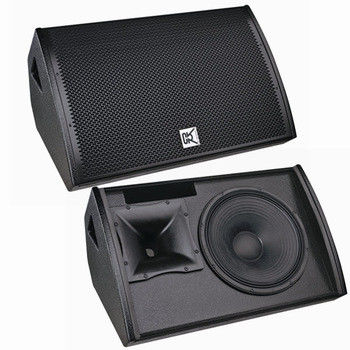

CV-152M/CV-152MP is a two-way, full range stage monitor speaker system composed of one 15＂ woofer and one 3＂titanium compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications. The CV-152MP features a highly efficient power amp module.
| Model |
CV-152M & CV-152MP(Active) |
| Type |
Two-way,full range monitor system |
| Frequency Response |
48Hz-18kHz±3dB |
| Power handling |
450W(RMS)900W(PEAK) |
| Power amp |
1000W/8ohm (CV-152MP) |
| Amplifier type |
Switching power amp, class
D circuit |
| Sensitivity |
100dB(1W@1M) |
| Max@S.P.L |
126dB(PEAK/1M) |
| LF section |
15"(380mm) woofer 75mm(3in)coil |
| HF section |
3"compression driver with
75mm titanium diaphragm |
| Nominal impedance |
8 ohm |
| Output section |
2-channel |
| Dispersion pattern |
60°H×40°V |
| Surface finish |
Black paint |
| Speaker cables |
1(+)1(-) |
| Input connectors |
2×NL4MP speakon |
| Dimensions |
750×400×520mm(W×H×D) |
| Package dimensions |
820×470×570mm/0.22cbm |
| Enclosure |
Plywood |
| Net weight |
32.5kg(CV-152M)
33.5kg(CV-152MP) |
| Gross weight |
36.5kg(CV-152M)
37.5kg(CV-152MP) |
