Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound

Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound supplier Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound supplier Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound supplier

Large Image :  Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: CV-152C&CV-152P

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: CV-152C&CV-152P Type: Two-way,full Range System
Frequency Response: 55Hz -18kHz ± 3dB Power:: 500W(RMS)1000W(PEAK)
Output Section: 2-channel Dispersion Pattern: 60°H×40°V
Finish: Black Paint Input Connectors: 2×NL4MP Speakon

Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound



DESCRIPTION and APPLICATION:

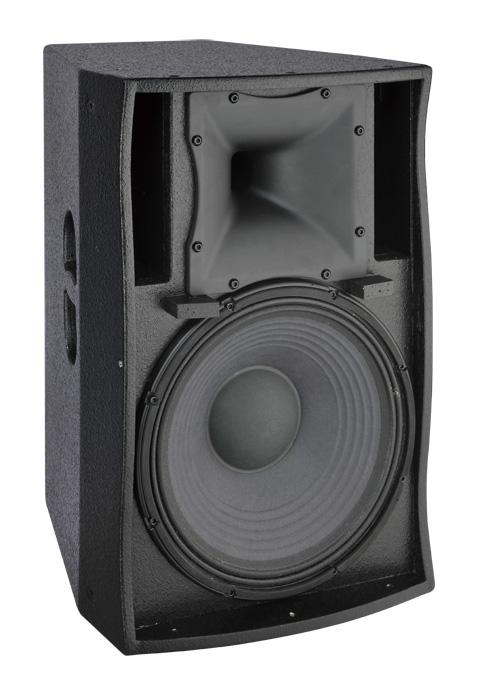

  CV-152C/CV-152P is a 2-way, full range loudspeaker system. Its features include one high efficient 15”woofer and one 3“titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc. The CV-152P features a highly efficient power amp module.



Model CV-152C & CV-152P(Active)
Type Two-way, full range system
Frequency Response 50Hz-18kHz±3dB
Power handling 500W(RMS)1000W(PEAK)
Power amp 1000W/8ohm (CV-152P)
Amplifier type Switching power amp, class
D circuit
Sensitivity 100dB(1W@1M)
Max@S.P.L 127dB(PEAK/1M)
LF section 15"(380mm) woofer 100mm
(4in)coil
HF section 3"compression driver with
75mm titanium diaphragm
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 60°H×40°V
Surface finish Black paint
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP speakon
Dimensions 432×697.5×430mm(W×H×D)
Package dimensions 502×770×500mm/0.2cbm
Enclosure Plywood
Net weight 34kg(CV-152C)/35kg(CV-152P)
Gross weight 38kg(CV-152C)/39kg(CV-152P)



Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound







Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound

Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound




 CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.




Brand Promises





Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound



To get the best goods with least money is not only customers favorites,but also CVR's target.

  1. Quality Wood Enlosure: Birch Plywood and Plywood.
  2. Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  3. Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  4. CE&RoHS certificate: for all products
  5. Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  6. Strong packing: Quality carton boxs with firm belt and flight cases are required.
  7. Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  8. Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.

Specifications

  • 1.aluminum line array delay tower
  • 2.heavy load but lightweight
  • 3.durable and stable
  • 4.SGS and CE approved
  • 5.OEM ,ODM


Package and Delivery:



  • --Carton or flycase
  • --At buyers' option



Bar And Club Active Pa Speaker With High Efficient 15” Woofer One 3” Titanium Active Disco Sound
