1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM

1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM supplier 1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM supplier 1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM supplier 1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM supplier

Large Image :  1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM

Product Details:

Place of Origin: Guang Zhou , China
Brand Name: CVR
Certification: CE
Model Number: KM-2150

Payment & Shipping Terms:

Minimum Order Quantity: 2 boxes
Price: $100 to $10000
Packaging Details: carton box package or flight case package
Delivery Time: 10 to 15 days after receive payment
Supply Ability: 5000 boxes each month
Detailed Product Description

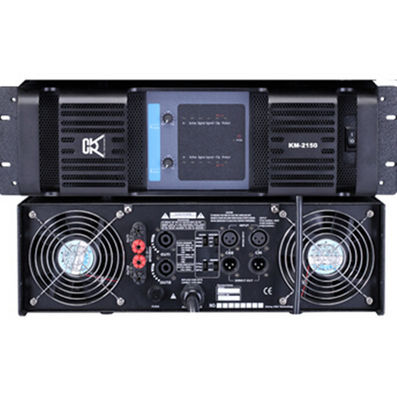

Model: KM-2150 8Ω Stereo Power: 2×1500W
4Ω Stereo Power: 2×2250W Frequency Response: 20Hz-25kHz ±0.5dB
Power Requirement: 200-240V/50-60Hz Net Weight: 16.5kg



1500 Watt Transformer Power Amplifier 2 Channel , High Power Audio Amplifier OEM / ODM





Quick Details:

  • Place of Origin : Guangzhou , China
  • Brand name : CVR
  • Model Number: KM-2150
  • Service Type: OEM or ODM
  • Warranty : one year

Descriptopm:



1 Power supply design
Each equipment includes independent logic high rate of power supply,which can control electrical circuit to adjust power output and voltage from time to time, and to respond the request of signal and load,so it can  get the best power match under the wide range of load,so to ensure the power amplifier will not be overheating.

2 Power output grade
Adopt the balance output circuit,the same as fully symmetrical Bridge Road:compared with the normal single end of land output circuit,the same work voltage can generate the output power in 4 times,that is to say,in order to get the same output power,the work power voltage of power amplifier is much lower thannormal OCL model.The output power tube is with wide safety work area under the condition of low voltage,so it is with higher power and reliability  compared with normal OCL output  model. Most importantly, The distortion of it is much Lower and can  output better tone quality.

3 Sign Voltage Range
There is a limited voltage device within each input channel.By checking the output sign and controlling the input sign,so the power amplifier output will not be at the state of clipping in long time,and can protect the speaker.It can automatically control the input sign when the power amplifier is overheat,so can reduce the heat and keep safety.

4 Perfect protection function
Power amplifier provides various protecting function, such as .direct current protection,internal stoppage protection,input overload protection,filter of radio frequency distraction,output short circuit protection,mismatching load and high frequency overload protection, radiator and over temperature protection for radiator and transformer,over electricity protection.And the over temperature protection for output electricity is achieved by gradually lower the output signal.Only when the temperature keeps rising to the extremity,can it cut off the output electricity supply of this channel,so avoid the stop of play.

5 Heat dissipation system
There is an independent heat dissipation system for each channel,two groups of nonpolar speed adjusted Fan.The sealed air go through the radiator to strengthen the effect of heat dissipation,and at the same time,avoid the the dust and smog of stage to pollute the circuit board to ensure the equipment is in good working condition,and the temperature can get balance in some
ranges.



Model  KM-2150
 8Ω Stereo Power 2×1500W
 4Ω Stereo Power 2×2250W
 8Ω Bridged Mono 4500W
Input Impedance >20K/>10K
Frequency response 20Hz-20KHz
THD+N(Rated Power,4Ω/KHz)% 0.05%
Signal Noise Ration(dB) -105dB
Degree separation -60dB
Input Connectors XLR
Output Connectors Speakon&touch-proof binding posts
Power Requirement 220V-240V,50-60Hz
conformation  Steel and aluminum chassis
Airframe Dimension  88×483×430mm
Net Weight 40kg



About us :



      Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer   specialized in producing  professional  audio  equipment    with  an  own  brand “CVR ” since  2005.  Our   5,000  square   meters  plant  has  R&D,  sales  and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
      CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer,  floor  monitor,  Power amplifier and speaker  management  system. From  the smallest conference room to the largest stadium.
 CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible  aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the  world.
     Our  goal is to provide the best equipment with the best  services. We have  not  deviated from this  position  since  we  began  and  will  do  it consistently.

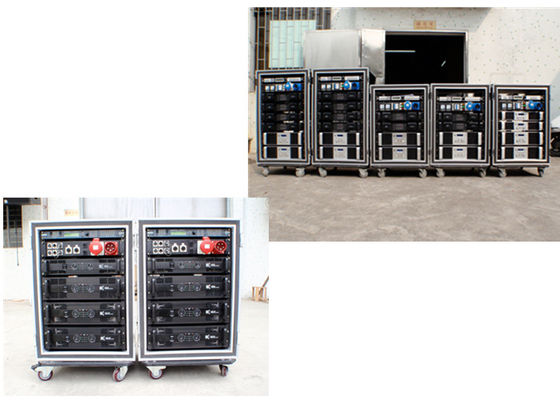

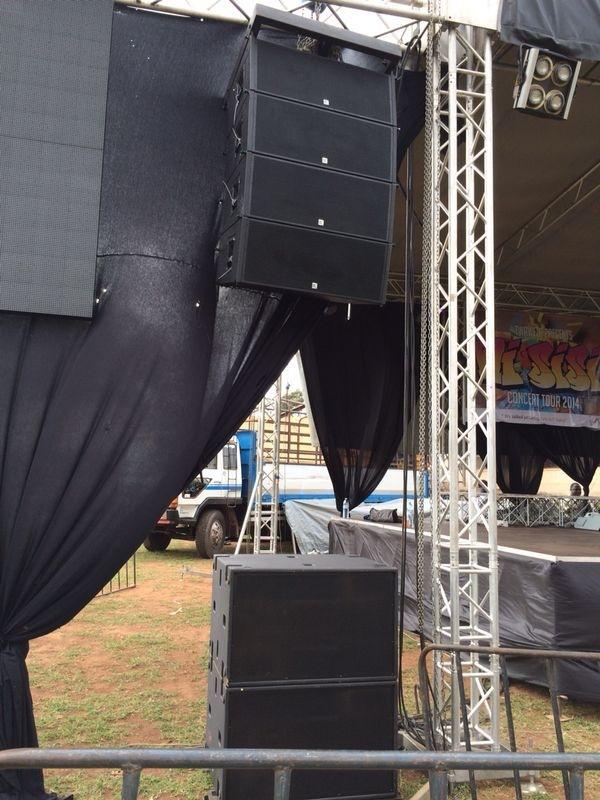

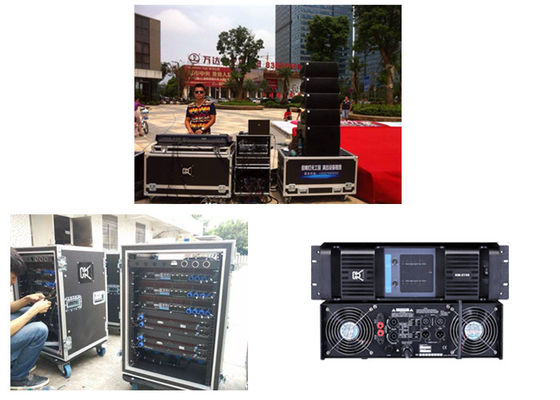

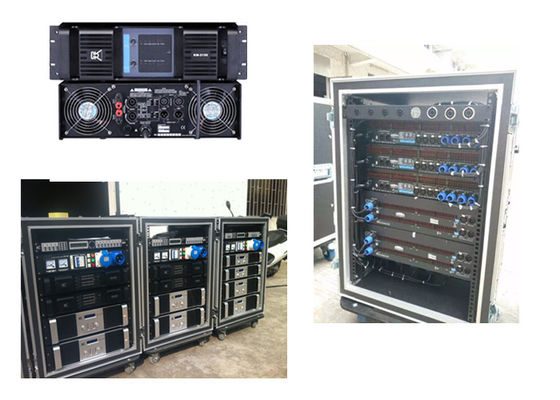

Project case:
