Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System

Certifications
Good Quality Line Array Speakers on sale Good Quality Active Line Array System on sale
Amazing quality,super value from me, a end user and dealer.with Quality and clear voice

—— Sifiso Kinyabo Zambia

best sound system manufacturer in China, Cvr systems are seriously awesome.

—— Joseph Kenya

they have best line array system in China,with super and heavy deep sound,for my concert events they doing fantastic.

—— Johnny Vietnam

I'm Online Chat Now

Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System

Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System supplier Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System supplier Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System supplier

Large Image :  Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: T-12

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: T-12 Type: Line Array System
Brand Name: CVR Frequency Response:: 55Hz -20kHz ± 3dB
Power Handling:: 400W(RMS)800W(PEAK) Nominal Impedance:: 4 Ohm
Enclosure:: Plywood Package Dimensions: 425×660×505mm/0.14cbm

Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System



DESCRIPTION and APPLICATION

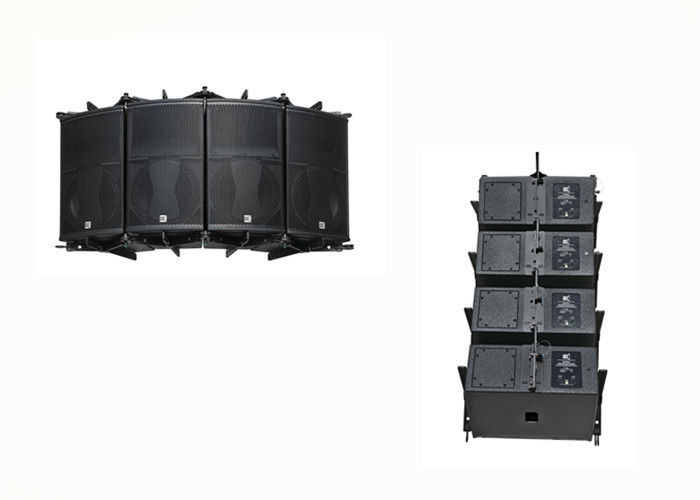

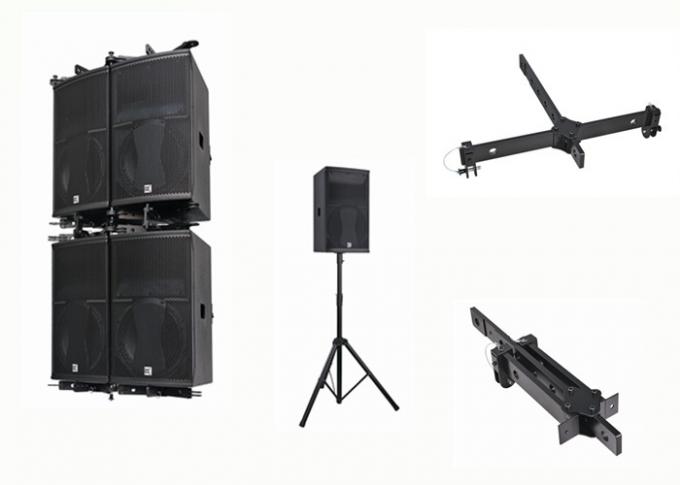

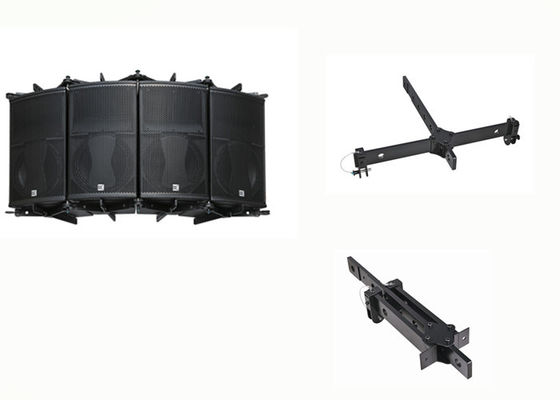

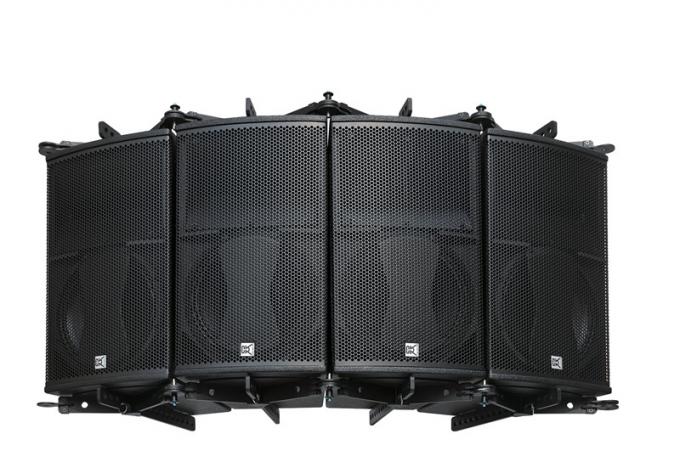

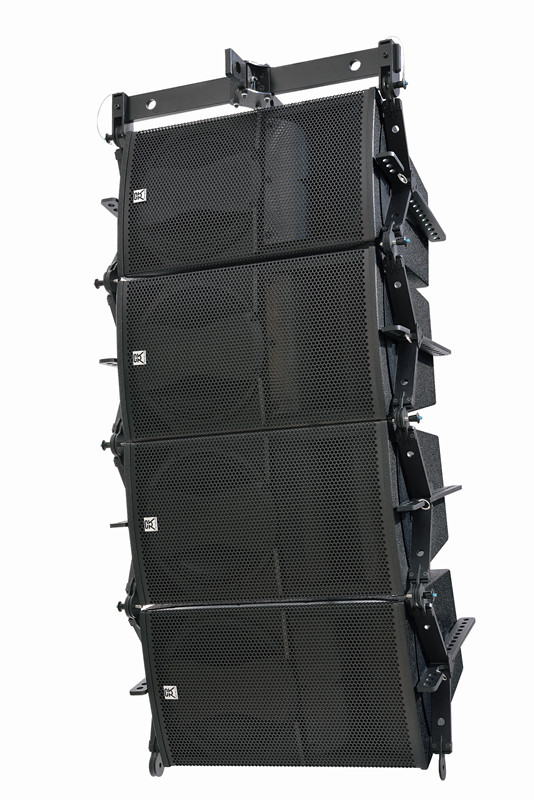

T-12  is  a bi-amps, line array system which is made of one 12", two 1.75"titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. T-12 is a compact line array enclosure designed to bring superb line array performance to large stadiums, big outdoor concerts and commercial events. The switchable one or bi-amplified two way cabinet is very efficient, It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installations.



Model

T-12

Type

Array system

Frequency Response

55Hz-20kHz±3dB

Power handling

400W(RMS)800W(PEAK)

Sensitivity

100dB(1W@1M)

Max@S.P.L

126dB(PEAK/1M)

LF section

12"(310mm) woofer 75mm(3in)coil

Nominal impedance

8 ohm

HF section

2×1.75"compression driver 44mm titanium diaphragm

Nominal impedance

8 ohm

Output section

2-channel

Dispersion pattern

110°H×5°V

Finish

Black paint

Speaker cables

Passive 1(+),1(-). Built in
crossover
Bi-AMP LF 1(+),1(-)
HF 2(+),2(-)

Input connectors

2×NL4MP speakon

Dimensions

355×593×434mm(W×H×D)

Package dimensions

425×660×505mm/0.14cbm

Enclosure

Brich Plywood

Net weight

28kg

Gross weight

31kg






 CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.





Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System

Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System
Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System
Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System







To get the best goods with least money is not only customers favorites,but also CVR's target.



  • Quality Wood Enlosure: Birch Plywood and Plywood.
  • Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  • Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  • CE&RoHS certificate: for all products
  • Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  • Strong packing: Quality carton boxs with firm belt and flight cases are required.
  • Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  • Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.



Features



  • --Detachable front dolly panel
  •
  • --High fidelity, durability and light weight
  •
  • --Three-way large format line array module
  •
  • --15loudspeaker with neodymium magnet
  •
  • --3loudspeakers with neodymium magnetic ine array
  •
  • --Captive figging system intergrated in the cabinet design with good quality birch plywood



Our Unique Advantage


  • --Small order accept
  •
  • --Green Paint, low pollution
  •
  • --Flat aluminum wire for the woofer
  •
  • --All are textured, durable birch plywood
  •
  • --Plug is Neutrik, endure repeatedly plug
  •
  • --Import loudspeaker cone, Good elasticity for woofer



Specifications

  • 1.aluminum line array delay tower
  • 2.heavy load but lightweight
  • 3.durable and stable
  • 4.SGS and CE approved
  • 5.OEM ,ODM


Package and Delivery:



  1. --Carton or flycase
  2. --At buyers' option



Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System



Pro Audio Subwoofer Church Sound Systems , 12 Inch Line Array System
