Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment

Certifications
Good Quality Line Array Speakers on sale Good Quality Active Line Array System on sale
Amazing quality,super value from me, a end user and dealer.with Quality and clear voice

—— Sifiso Kinyabo Zambia

best sound system manufacturer in China, Cvr systems are seriously awesome.

—— Joseph Kenya

they have best line array system in China,with super and heavy deep sound,for my concert events they doing fantastic.

—— Johnny Vietnam

I'm Online Chat Now

Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment

Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment supplier Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment supplier Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment supplier

Large Image :  Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: CV-153C/CV-153P

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: CV-153C/CV-153P Type: Three-way Full Range System
Frequency Response: 40Hz-20kHz±3dB Power:: 650W(RMS)1300W(PEAK)
Output Section: 2-channel Dispersion Pattern: 90°H×40°V
Finish: Black Paint Input Connectors: 2×NL4MP Speakon
Package Dimensions: 515×885×540mm/0.34cbm

Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment



DESCRIPTION and APPLICATION:

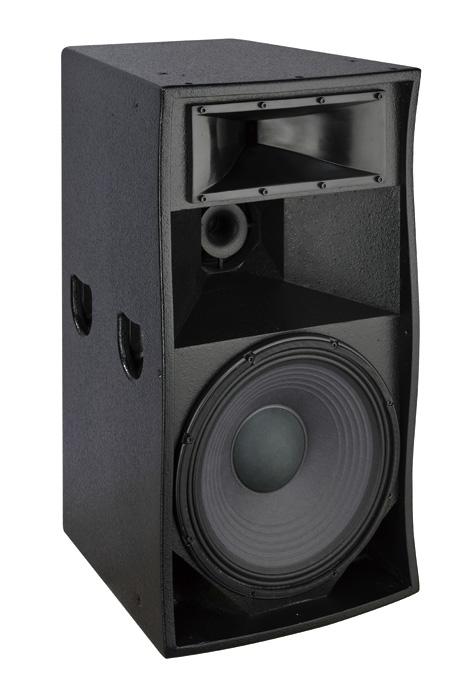

  The ultra-compact CV-153C/CV-153P is a unique, innovative three-way, full range system. CV-153C/CV-153P is equipped with two 15" wave horn loading woofer, one 6.5"wave horn loading neodymium driver and one 2"titanium compression driver optimally splayed for smooth, powerful, mid-long throw wide coverage. Extremely versatile CV-153C/CV-153P blends pleasing aesthetics, uncompromising technical excellence with ease of installation to provide a high quality loudspeaker system to suit installed sound requirements of varied sizes venues such as bars, night clubs, conference centers, stadiums, arenas, etc. The CV-153P features a highly efficient power amp module.



Model CV-153C & CV-153P(Active)
Type Three-way full range system
Frequency Response 40Hz-20kHz±3dB
Power handling 650W(RMS)1300W(PEAK)

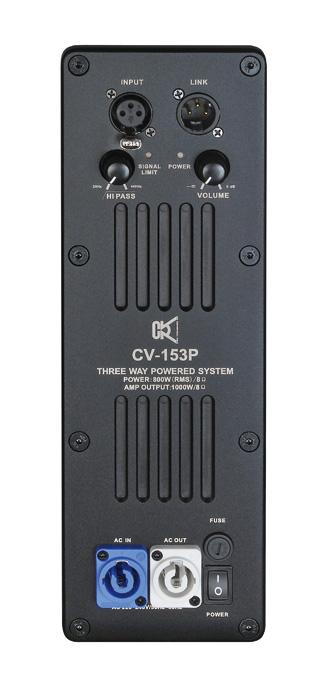

Power amp 1000W/8ohm (CV-153P)
Amplifier type Switching power amp, class
D circuit(CV-153P)
Sensitivity 104dB(1W-1M)
Max-S.P.L 132dB(PEAK/1M)
LF section 15"(380mm) woofer 100mm
(4in)coil
MF section 6.5"(170mm)woofer 50mm(2incoil)
HF section 2"compression driver with
51mm titanium diaphragm
Nominal impedance 8 ohm
Output section 3-channel
Dispersion pattern 90°H×40°V
Surface finish Black paint
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP speakon
Dimensions 443×814×469mm(W×H×D)
Package dimensions 515×885×540mm/0.34cbm
Enclosure Plywood
Net weight 40kg(CV-153C)/41kg(CV-153P)
Gross weight 45kg(CV-153C)/46kg(CV-153P)


 Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment




Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment
Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment



 CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.




Brand Promises


Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment

To get the best goods with least money is not only customers favorites,but also CVR's target.

  1. Quality Wood Enlosure: Birch Plywood and Plywood.
  2. Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  3. Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  4. CE&RoHS certificate: for all products
  5. Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  6. Strong packing: Quality carton boxs with firm belt and flight cases are required.
  7. Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  8. Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.

Specifications

  • 1.aluminum line array delay tower
  • 2.heavy load but lightweight
  • 3.durable and stable
  • 4.SGS and CE approved
  • 5.OEM ,ODM


Package and Delivery:


  1. --Carton or flycase
  2. --At buyers' option


Professional Karaoke Sound System Speaker Box Pa Audio Dj Equipment
