Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System

Large Image :  Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: W-82C W-15CP

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: W-82C W-15CP Type: Active Line Array Speaker System
Brand Name: CVR Power:: 250W(RMS)500W(PEAK) W-82C
Input Connectors:: 2-Neutrik NL4 Size: 8" Neodymium Woofers
Finish: Black Paint
High Light:

conference room audio system

,

speakers for conference room

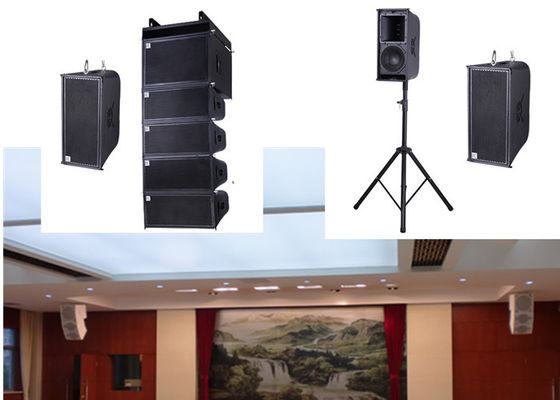

Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System



DESCRIPTION and APPLICATION:



 W-82C is a line array system which is made of a 8"woofer, a 1.75"titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-82C will integrate seamlessly with W-15C or W-15CP line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-82C is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.


 W-15C/W-15CP is a dedicated high performance sub-bass system designed to augment the low frequency output of W-82C. W-15C/W-15CP is a sub-bass enclosure which must be flown with W-82C. So its physical dimensions are identical to the W-82C and it is equipped with the same proprietary rigging system. It features with a 15"woofer with magnet structure and suspensions engineered for maximum linear excursion. The W-15CP with Bluetooth features a highly efficient power amp module and incorporated DSP.

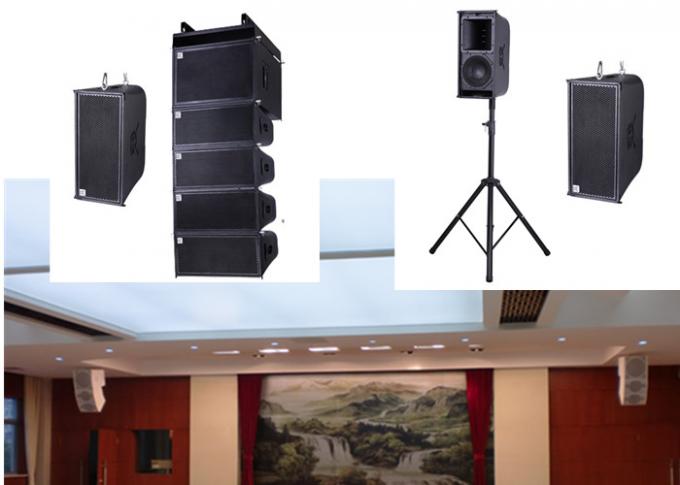

Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System



Model W-82C & W-15C/W-15CP(Active)
Type Line arry system
line arry sub-bass system(W-15C/W-15CP)
Frequency Response 70Hz-20KHz±3dB
40Hz-500Hz±3dB(W-15C/W-15CP)
Power handling 250W(RMS)500W(PEAK)
500W(RMS)1000W(PEAK)(W-15C/W15CP)
Power amp 2X600W/4ohm + 1X900W/8ohm(W-15CP)
Amplifier type

Switching power amp, class D circuit

Other functions Bluetooth,DSP (W-15CP)
Sensitivity 96dB(1W@1M)
106dB(1W@1M)(W-15C/W15CP)
Max@S.P.L 116dB(PEAK/1M)
130dB(1W@1M)(W-15C/W15CP)
LF section 1×8"(210mm)woofer 50mm(2in)coil
15"(380mm)woofer 100mm(4in)coil
(W-15C/W-15CP)
HF section 1×1.75"compression driver with44mm
titanium diaphragm
Nominal impedance 8 ohm(W-82C)& 8 ohn (W-15C/W-15CP)
Output section 2-channel
Dispersion pattern 110º H×9º V
Surface finish Black paint
Array design Arrays of less than 3×W-82C will
provide poor dispersion control and are
neither recommended nor supported
Speaker cables 1(+)1(-) Built in crossover
Rigging system Please refer to the W-82C user's
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover 70Hz-20KHz
40Hz-100Hz(W-15C/W-15CP)
Dimensions 544×245×375mm(W×H×D)
515×450×611mm(W×H×D)
(W-15C/W-15CP)
Package dimensions 615×315×445mm/0.09cbm
585×520×680mm/0.22cbm
(W-15C/W-15CP)
Enclosure HLPE(W-82C)/Plywood(W-15C/W-15CP)
Net weight 12.5kg(W-82C)/34kg(W-15C)/40kg(W-15CP)
Gross weight 14.5kg(W-82C)/37kg(W-15C)/43kg(W-15CP)



Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System



 CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.



Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System



Brand Promises:



To get the best goods with least money is not only customers favorites,but also CVR's target.

  • Quality Wood Enlosure: Birch Plywood and Plywood.
  • Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  • Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  • CE&RoHS certificate: for all products
  • Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  • Strong packing: Quality carton boxs with firm belt and flight cases are required.
  • Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  • Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.





Package and Delivery:


  1. --Carton or flycase
  2. --At buyers' option







Active Line Array Sound System Small Mini Pa Speaker , Conference Audio System
