Detailed Product Description
Model Number:: |
CV-8.0 & CV-112B |
Type: |
Array System |
Brand Name: |
CVR |
Power:: |
150W(RMS)300W(PEAK) CV-8.0 |
Input Connectors:: |
2-Neutrik NL4 |
Size: |
8" Woofers |
Finish: |
Black Paint |
|
|
High Light: |
conference room sound system, conference room audio system |

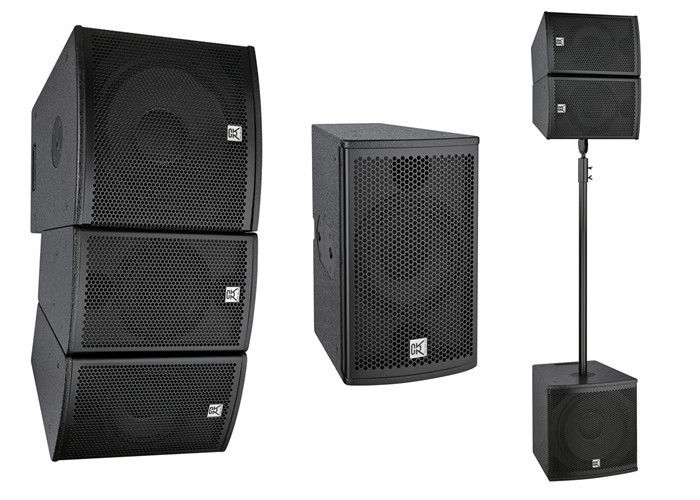

Surround Sound System Mini Hi-Fi Audio Speaker For Conference Room
this speaker is design for conference,bars, church,karaoke..with black and white color as client choice.
DESCRIPTION and APPLICATION

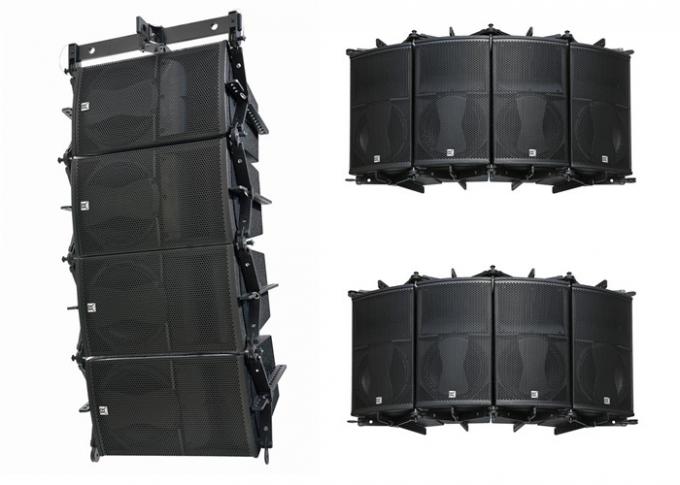

CV-8.0 is a coxial array system which is made of a 8"woofer, a 1.4"titanium neodymium compression driver. The CV-8.0 will integrates seamlessly with CV-112B array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-8.0 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
CV-112B is a dedicated high performance sub-bass system designed to augment the low frequency output of CV-8.0. CV-112B is a sub-bass enclosure which must be flown with CV-6.5. So its physical dimensions are identical to the CV-8.0 and it is equipped with the same proprietary rigging system. It features with a 12"woofers with magnet structure and suspensions engineered for maximum linear excursion.
Model |
CV-8.0 & CV-112B |
Type |
Array system
Array sub-bass system(CV-112B) |
Frequency Response |
70Hz-20KHz±3dB
42Hz-600Hz±3dB(CV-112B) |
Power handling |
250W(RMS)500W(PEAK)
400W(RMS)800W(PEAK)(CV-112B) |
Sensitivity |
101dB(1W@1M)
106dB(1W@1M)(CV-112B) |
Max@S.P.L |
121dB(PEAK/1M)
192dB(PEAK/1M)(CV-112B) |
LF section |
8"(210mm) woofer
50mm(2in)coil
12"(310mm) woofers
100mm(4in)coil(CV-112B) |
HF section |
1×1.4"neodymium
compression driver with 34mm
titanium diaphragm |
Nominal impedance |
8 ohm
8 ohm(CV-112B) |
Output section |
2-channel |
Dispersion pattern |
90° |
Finish |
Black paint |
Speaker cables |
1(+)1(-) Built in crossover
1(+)1(-) (CV-112B) |
Array design |
Please refer to the CV-8.0 user
manual before any operation |
Input connectors |
2×NL4MP speakon |
Recommend crossover |
90Hz-20KHz
35Hz-90Hz(CV-112B) |
Dimensions |
245×380×321mm(W×H×D)
384×380×476mm(W×H×D)(CV-112B) |
Package dimensions |
315×450×390mm/0.06cbm
455×450×545mm/0.11cbm(CV-112B) |
Enclosure |
Plywood |
Net weight |
9.5kg(CV-8.0) / 21kg (CV-112B) |
Gross weight |
12kg(CV-8.0) / 24kg (CV-112B) |
