2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System

Certification
Amazing quality,super value from me, a end user and dealer.with Quality and clear voice

—— Sifiso Kinyabo Zambia

best sound system manufacturer in China, Cvr systems are seriously awesome.

—— Joseph Kenya

they have best line array system in China,with super and heavy deep sound,for my concert events they doing fantastic.

—— Johnny Vietnam

I'm Online Chat Now

2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System

2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System supplier 2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System supplier

Large Image :  2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: CV-10P

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: 100USD-10000USD
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: CV-10P Type: Coaxial Full Range Active Speaker
Apply: Indoor Or Club Use Power:: 200W(RMS)400W(PEAK)
Output Section: 2-channel Dispersion Pattern: 90°H×50°V
Finish: Black Paint Input Connectors: 2×NL4MP Speakon
High Light:

powered pa speaker

,

wireless pa speakers

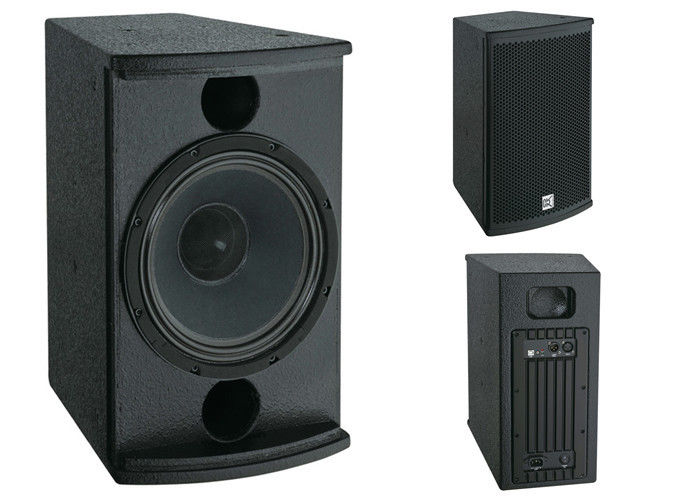

2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System



DESCRIPTION and APPLICATION:



CV-10CV-10P is a 2-way coaxial full range loudspeaker system. Its features include one high efficient 10"neodymium woofer and one 1.4"neodymium titanium compression drivers housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc. The CV-10P features a highly efficient power amp module and incorporated DSP.

Model CV-10 & CV-10P(Active)
Type Two-way,coaxial system
Frequency Response 60Hz-20kHz±3dB
Power handling 250W(RMS)500W(PEAK)
Power amp 300W/8ohm (CV-10P)
Amplifier type Switching power amp, class D
circuit
Sensitivity 98dB(1W@1M)
Max@S.P.L 122dB(PEAK/1M)
LF section 10"(260mm) woofer 65mm
(2.5in)coil
HF section 1.4"compression driver with
34mm titanium diaphragm
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 90°
Surface finish Black paint
Input connectors 2×NL4MP speakon
Dimensions 288×455×329mm(W×H×D)
Package dimensions 360×515×400mm/0.08cbm
Enclosure Plywood
Net weight 9.5kg(CV-10)/11.5kg(CV-10P)
Gross weight 12.5kg(CV-10)/14.5kg(CV-10P)










2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System


2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System




 CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !

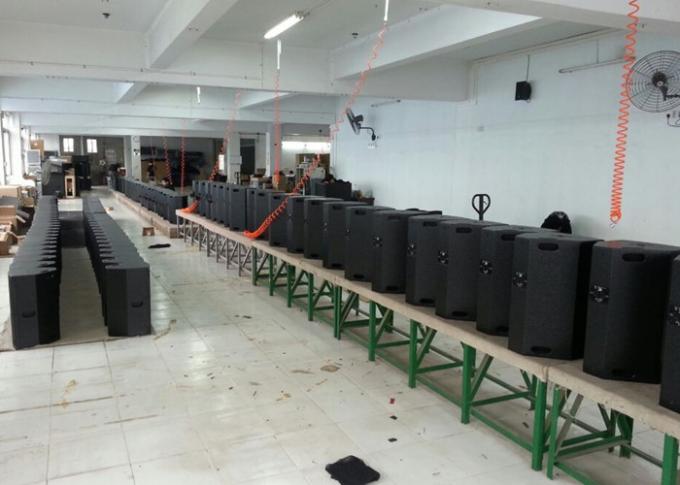

 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.




Brand Promises





2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System



To get the best goods with least money is not only customers favorites,but also CVR's target.

  1. Quality Wood Enlosure: Birch Plywood and Plywood.
  2. Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  3. Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  4. CE&RoHS certificate: for all products
  5. Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  6. Strong packing: Quality carton boxs with firm belt and flight cases are required.
  7. Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  8. Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.

Specifications

  • 1.aluminum line array delay tower
  • 2.heavy load but lightweight
  • 3.durable and stable
  • 4.SGS and CE approved
  • 5.OEM ,ODM


Package and Delivery:



  1. --Carton or flycase
  2. --At buyers' option

CVR Certificate:



2 Way 200 Watt Active Pa Speaker System , Coaxial Audio System
