Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V

Certifications
Good Quality Line Array Speakers on sale Good Quality Active Line Array System on sale
Amazing quality,super value from me, a end user and dealer.with Quality and clear voice

—— Sifiso Kinyabo Zambia

best sound system manufacturer in China, Cvr systems are seriously awesome.

—— Joseph Kenya

they have best line array system in China,with super and heavy deep sound,for my concert events they doing fantastic.

—— Johnny Vietnam

I'm Online Chat Now

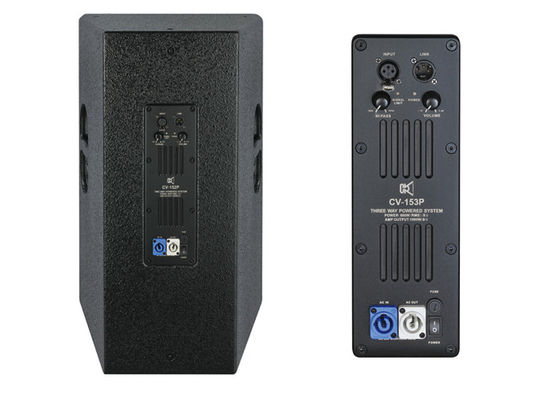

Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V

Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V supplier Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V supplier Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V supplier

Large Image :  Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V

Product Details:

Place of Origin: Guang Zhou , China
Brand Name: CVR
Certification: CE,RoHS
Model Number: CV-152P

Payment & Shipping Terms:

Minimum Order Quantity: 2 boxes
Price: $100 to $10000
Packaging Details: carton box package or flight case package
Delivery Time: 10 to 15 days after receive payment
Supply Ability: 5000 boxes each month
Detailed Product Description
Model: CV-152P Type: Active 15 Inch Club Speaker
Input Connectors: 2×NL4MP Speakon Speaker Cables: LF 1(+)1(-) HF 2(+)2(-)
Dispersion Pattern: 90°H×50°V Output Section: 2-channel

Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V





Quick Details:

  • Place of Origin : Guangzhou , China
  • Brand name : CVR
  • Model Number: CV-152P
  • System:active full range system
  • Power rating : 500 watt
  • Color: Black
  • Type: Professional Loudspeaker
  • Service Type: OEM or ODM
  • Warranty : one year

Specification:

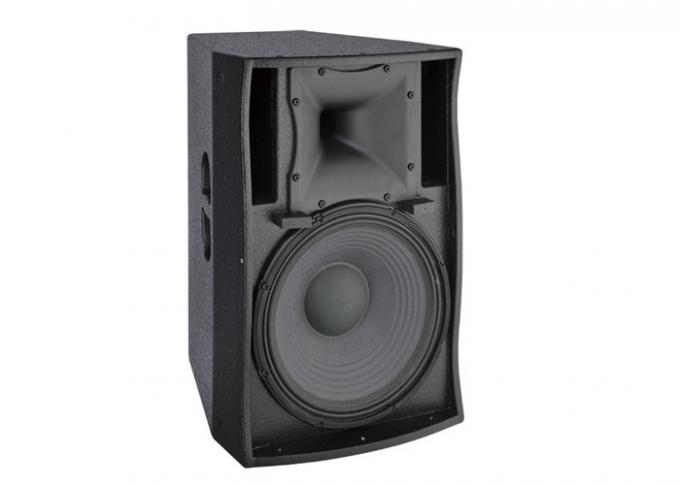

 CV-152C/CV-152P is a 2-way, full range loudspeaker system. Its features include one high efficient 15"woofer and one 3"titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc. The CV-152P features a highly efficient power amp module.



Model CV-152C & CV-152P(Active)
Type Two-way, full range system
Frequency Response 50Hz-18kHz±3dB
Power handling 500W(RMS)1000W(PEAK)
Power amp 1000W/8ohm (CV-152P)
Amplifier type Switching power amp, class
D circuit
Sensitivity 100dB(1W@1M)
Max@S.P.L 127dB(PEAK/1M)
LF section 15"(380mm) woofer 100mm
(4in)coil
HF section 3"compression driver with
75mm titanium diaphragm
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 60°H×40°V
Surface finish Black paint
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP speakon
Dimensions 432×697.5×430mm(W×H×D)
Package dimensions 502×770×500mm/0.2cbm
Enclosure Plywood
Net weight 34kg(CV-152C)/35kg(CV-152P)
Gross weight 38kg(CV-152C)/39kg(CV-152P)





About us :



      Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer   specialized in producing  professional  audio  equipment    with  an  own  brand “CVR ” since  2005.  Our   5,000  square   meters  plant  has  R&D,  sales  and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
      CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer,  floor  monitor,  Power amplifier and speaker  management  system. From  the smallest conference room to the largest stadium.
 CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible  aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the  world.
     Our  goal is to provide the best equipment with the best  services. We have  not  deviated from this  position  since  we  began  and  will  do  it consistently.

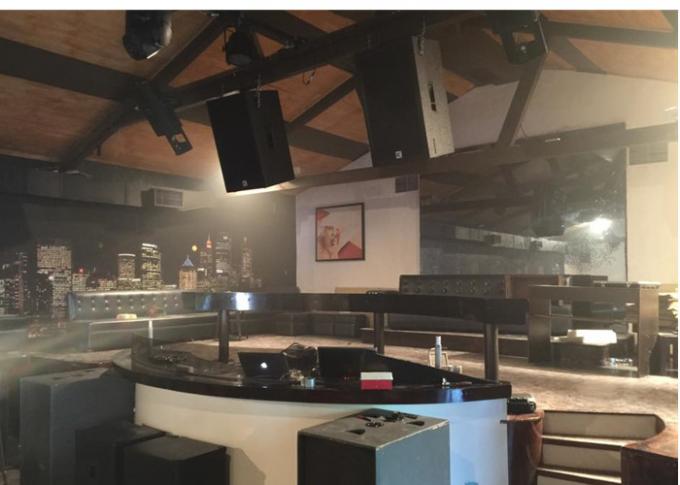

Project case:







Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V



Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V







Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V



Active Pa System 15 Inch Speaker Studio Equipment Disco Band Show 90°H×50°V



CVR exclusive area :



  • United States, Canada, Australia, Spain, Nigeria, Ghana, Japan, Korea, Cambodia, Fiji, Uganda, Malaysia, Peru.
  • USA Address:2012 TRANQUILITY LANE,LEAGUE CITY, TX 77573,USA
  • Japan Address: 329 AOKI YUASA-TOWN ARIDA-GUN, WAKAYAMA-prefecture
  • Korea Address:408,Onnuriplaza,128-2,Goean-dong,Sosa-gu,Bucheon-si,Kyungki
  • Ghana Address:No.9,5th Circular road,Labone Accra
  • Uganda Address: Plot 1175A Mukalazi Road, Bukoto Kampala Uganda. P.O BOX 23217Kampala
  • Nigeria Address: T. I. REWARD BLOCK, ELECTRONICS MARKET ONITSHA, ANAMBRA STATE.



CVR PRO AUDIO aims to :



  • Become your most trusted and reliable manufactory
  • Provide high quality pro sound equipment at realistic prices
  • Provide outstanding designs together with delicate finished
  • Provide meticulous and considerate service for clients
  • See more at www.cvr-audio.com
