Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System

Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System supplier Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System supplier Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System supplier Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System supplier

Large Image :  Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System

Product Details:

Place of Origin: Guang Zhou , China
Brand Name: CVR
Certification: CE
Model Number: CV-122M

Payment & Shipping Terms:

Minimum Order Quantity: 2 boxes
Price: $100 to $10000
Packaging Details: carton box package or flight case package
Delivery Time: 10 to 15 days after receive payment
Supply Ability: 5000 boxes each month
Detailed Product Description
Model: CV-122M Type: Two-way, Coaxial System
Input Connectors: 2×NL4MP Speakon Speaker Cables: LF 1(+)1(-) HF 2(+)2(-)
Dispersion Pattern: 90°H×50°V Output Section: 2-channel

 Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System





Quick Details:

  • Place of Origin : Guangzhou , China
  • Brand name : CVR
  • Model Number: CV-122M
  • System:coaxial system
  • Power rating : 350 watt
  • Color: Black
  • Type: Professional Loudspeaker
  • Service Type: OEM or ODM
  • Warranty : one year

Specification:

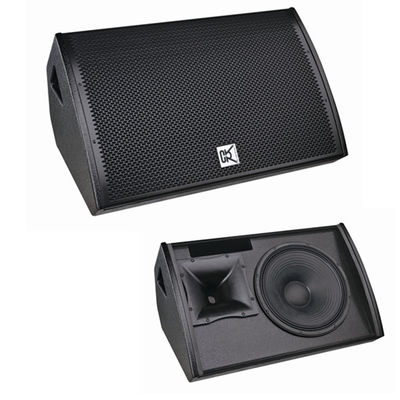

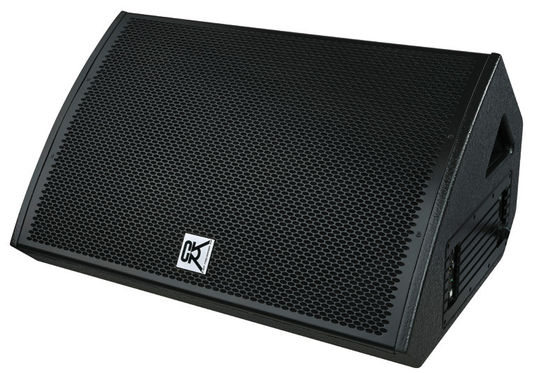

      CV-122M/CV-122MP is two-way, full range stage monitor speaker system composed of one 12" woofer and one 1.75" titanium neodymium compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications. The CV-122MP features a highly efficient power amp module.



Model CV-122M & CV-122MP(Active)
Type Two-way,full range monitor system
Frequency Response 55Hz-20kHz±3dB
Power handling 400W(RMS)800W(PEAK)
Power amp 600W/8ohm (CV-122MP)
Amplifier type Switching power amp, class D circuit
Sensitivity 95dB(1W@1M)
Max@S.P.L 123dB(PEAK/1M)
LF section 12"(310mm) woofer 75mm(3in)coil
HF section 1.75"compression driver with
44mm titanium diaphragm
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 80°H×60°V
Surface finish Black paint
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP speakon
Dimensions 650×340×480mm(W×H×D)
Package dimensions 725×405×550mm/0.16cbm
Enclosure Plywood
Net weight 23kg(CV-122M)/24kg(CV-122MP)
Gross weight 26kg(CV-122M)/27kg(CV-122MP)



About us :



      Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer   specialized in producing  professional  audio  equipment    with  an  own  brand “CVR ” since  2005.  Our   5,000  square   meters  plant  has  R&D,  sales  and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
      CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer,  floor  monitor,  Power amplifier and speaker  management  system. From  the smallest conference room to the largest stadium.
 CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible  aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the  world.
     Our  goal is to provide the best equipment with the best  services. We have  not  deviated from this  position  since  we  began  and  will  do  it consistently.

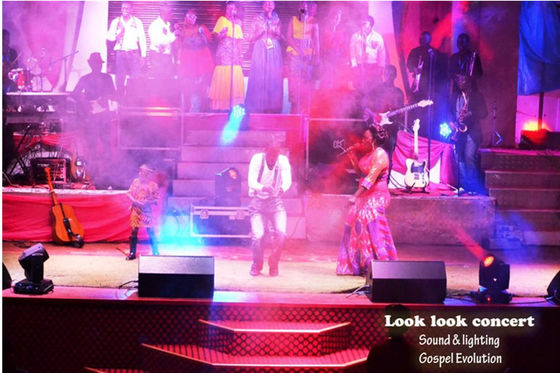

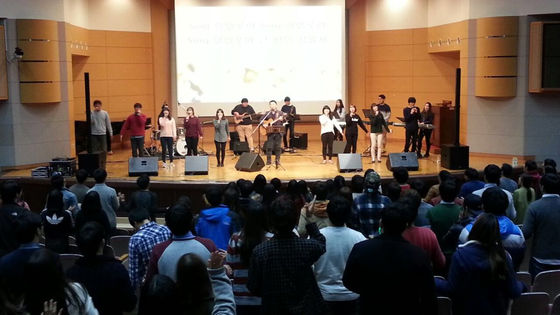

Project case:



Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System



Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System



Active / Passive Monitor Speakers Line Array Sound Equipment Live Event Show Monitoring System



CVR exclusive area :



  • United States, Canada, Australia, Spain, Nigeria, Ghana, Japan, Korea, Cambodia, Fiji, Uganda, Malaysia, Peru.
  • USA Address:2012 TRANQUILITY LANE,LEAGUE CITY, TX 77573,USA
  • Japan Address: 329 AOKI YUASA-TOWN ARIDA-GUN, WAKAYAMA-prefecture
  • Korea Address:408,Onnuriplaza,128-2,Goean-dong,Sosa-gu,Bucheon-si,Kyungki
  • Ghana Address:No.9,5th Circular road,Labone Accra
  • Uganda Address: Plot 1175A Mukalazi Road, Bukoto Kampala Uganda. P.O BOX 23217Kampala
  • Nigeria Address: T. I. REWARD BLOCK, ELECTRONICS MARKET ONITSHA, ANAMBRA STATE.



CVR PRO AUDIO aims to :



  • Become your most trusted and reliable manufactory
  • Provide high quality pro sound equipment at realistic prices
  • Provide outstanding designs together with delicate finished
  • Provide meticulous and considerate service for clients
  • See more at www.cvr-audio.com
