Detailed Product Description
| TYPE: |
ACTIVE LINE ARRAY |
SIZE: |
5"X2,1.4"X1 |
| SUB: |
12"X1 |
AMP: |
THREE WAY |
| DSP: |
BUILT IN |
CABINET: |
PU |
| High Light: |
active speaker system, powered speaker system |

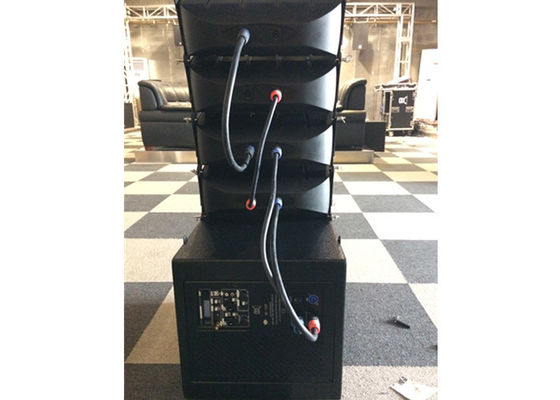

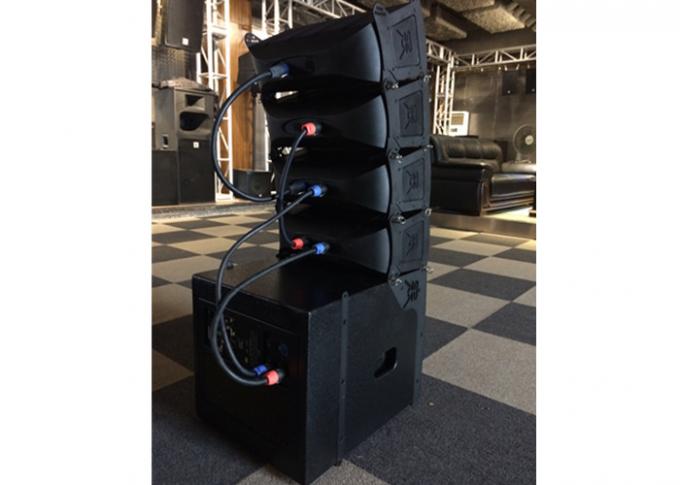

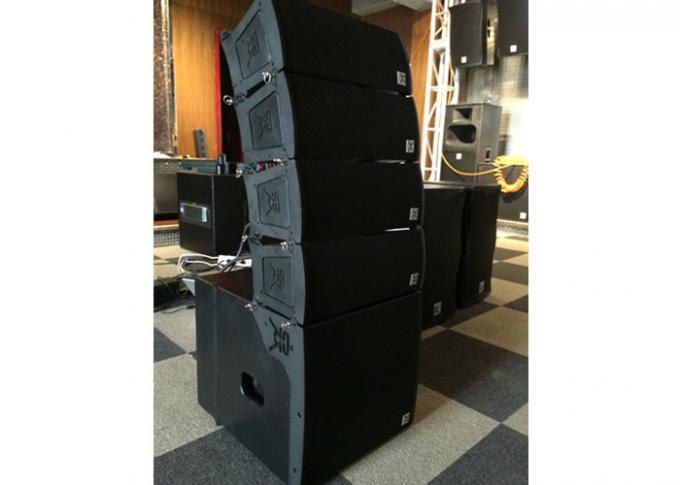

Self Powered Speaker System PA Audio Line Array Loudspeakers
ABOUT CVR:
CVR PRO AUDIO is a cutting edge professional audio speaker manufacturer specializing in designing and manufacturing professional audio systems,including PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor, power amplifier and speaker management system. We provide these products for indoor and outdoor events, stadiums, churches, performing arts venues, theatres,conference rooms, meeting halls, and any space where audio system are needed.
DESCRIPTION and APPLICATION
W-25 is a line array system which is made of two 5" woofers, a 1.4" compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-25 will integrate seamlessly with W-12P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-25 is very versatile and scalable for a wide range.

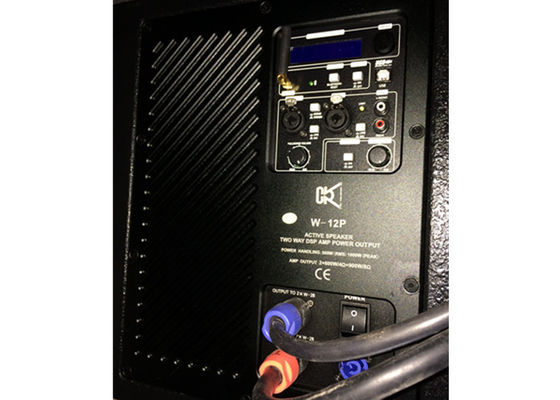

W-12P is a dedicated high performance sub-bass system designed to augment the low frequency output of W-25. The W-12P features a highly efficient power amp module and incorporate DSP. This efficient design enables the flown combination of W-12P and W-25.The physical dimensions of W-12P are identical to the W-25 and it's equipped with the same proprietary rigging system.It's features with two 10 inch woofer with magnet structure and suspensions engineered for maximum.
| Frequency Response |
80Hz-20KHz±3dB
45Hz-600Hz±3dB(W-12P) |
| Power handling |
200W(RMS)400W(PEAK)
500W(RMS)1000W(PEAK)(W-12P) |
| Power amp |
2X600W/4ohm + 1X900W/8ohm (W-12P) |
| Amplifier type |
Switching power amp, class D circuit |
| Other functions |
Bluetooth,DSP (W-12P) |
| Sensitivity |
93dB(1W@1M)
100dB(1W@1M) (W-12P) |
| Max@S.P.L |
112dB(PEAK/1M)
131dB(1W@1M)(W-12P) |
| HF section |
1×1.4"compression driver with34mm
titanium diaphragm
|
| LF section |
2×5"(135mm)woofer 35mm(1.5in)coil
1×12"(310mm)woofer(W-12P)
100mm(4in)coil (W-12P) |
| Nominal impedance |
16 ohm
8 ohm (W-12P) |
