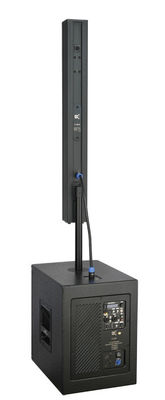

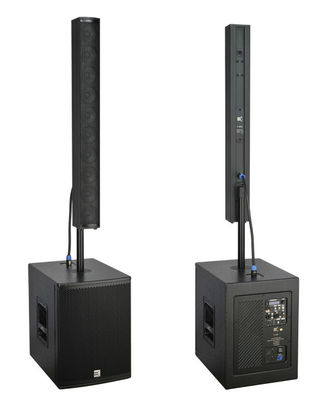

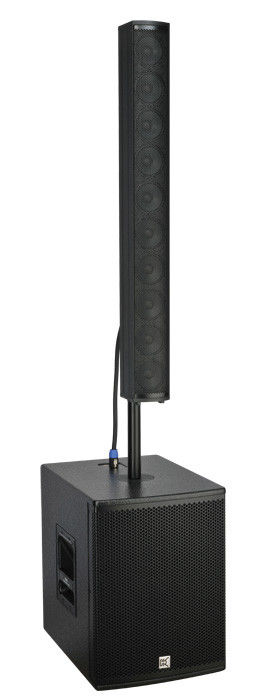

Solar Power System Powered Column Array Speakers Professional Disco Audio

Solar Power System Powered Column Array Speakers Professional Disco Audio supplier Solar Power System Powered Column Array Speakers Professional Disco Audio supplier Solar Power System Powered Column Array Speakers Professional Disco Audio supplier

Large Image :  Solar Power System Powered Column Array Speakers Professional Disco Audio

Product Details:

Place of Origin: Guang Zhou , China
Brand Name: CVR
Certification: CE
Model Number: T-3510&T-112P

Payment & Shipping Terms:

Minimum Order Quantity: 2 boxes
Price: $100 to $10000
Packaging Details: carton box package or flight case package
Delivery Time: 10 to 15 days after receive payment
Supply Ability: 5000 boxes each month
Detailed Product Description
Model: T-3510&T-112P Type: Line Array Column System
Input Connectors: 2×NL4MP Speakon Speaker Cables: LF 1(+)1(-) HF 2(+)2(-)
Dispersion Pattern: 110º H×9º V Output Section: 2-channel

Solar Power System Powered Column Array Speakers Professional Disco Audio





Quick Details:

  • Place of Origin : Guangzhou , China
  • Brand name : CVR
  • Model Number: T-2510&T-115P
  • System: full range system
  • Power rating : 750watt
  • Color: Black
  • Type: Professional Loudspeaker
  • Service Type: OEM or ODM
  • Warranty : one year





Power handling:



  The T-3510 is a line array column system comprised of ten 3.5" neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics - phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.



Model

T3510

Type Line Array Column system
Frequency Response 130Hz-20kHz ± 3dB
Power handling 250W(RMS)500W(PEAK)
Sensitivity 96dB(1W@1M)
Max@S.P.L 120dB(PEAK/1M)
LF section 5×3.5"(90mm)
20mm(0.8in)coil
Nominal impedance 16 ohm
HF section 5×3.5"(90mm)
20mm(0.8in)coil
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 80°
Speaker cables LF 1(+)1(-)  HF 2(+)2(-)
Input connectors 2×NL4MP speakon
Dimensions 953×102×115mm(W×H×D)
Package dimensions 1020×170×185mm/0.03cbm
Enclosure Aluminum
Net weight 6.5kg
Gross weight 8kg





Specification:



  T-112P is a 12"subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required. The T-112P with a Bluetooth features a highly efficient power amp module and incorporated DSP.



Model T-112P(Active)
Type Sub-bass system
Frequency Response 50Hz-600kHz±3dB
Power handling 500W(RMS)1000W(PEAK)
Power amp 2X600W/4ohm + 1X900W/8ohm
Amplifier type Switching power amp, class D
circuit
Other functions Bluetooth,DSP
Sensitivity 103dB(1W@1M)
Max@S.P.L 130dB(PEAK/1M)
LF section 12"(310mm) woofer 100mm
(4in)coil
Nominal impedance 8 ohm
Surface finish Black paint
Input connectors 2×NL4MP speakon
Dimensions 360×485×495mm(W×H×D)
Package dimensions 430×555×565mm/0.11cbm
Enclosure Plywood
Net weight 26kg
Gross weight 28kg


About us :



      Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer   specialized in producing  professional  audio  equipment    with  an  own  brand “CVR ” since  2005.  Our   5,000  square   meters  plant  has  R&D,  sales  and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
      CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer,  floor  monitor,  Power amplifier and speaker  management  system. From  the smallest conference room to the largest stadium.
 CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible  aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the  world.
     Our  goal is to provide the best equipment with the best  services. We have  not  deviated from this  position  since  we  began  and  will  do  it consistently.

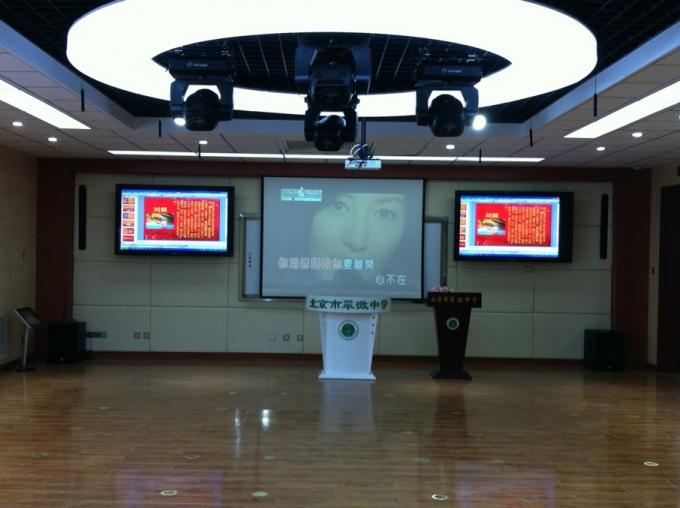

Project case:
