Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design

Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design supplier Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design supplier Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design supplier Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design supplier

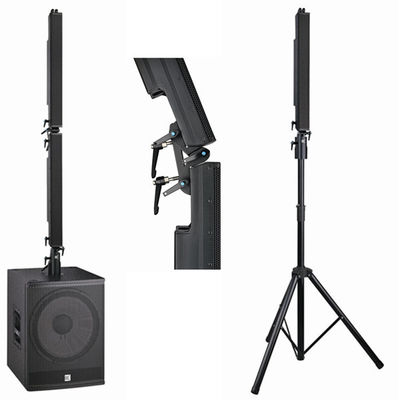

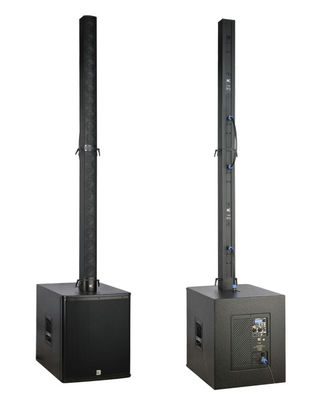

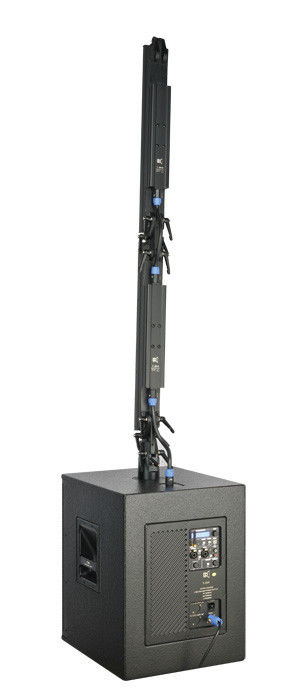

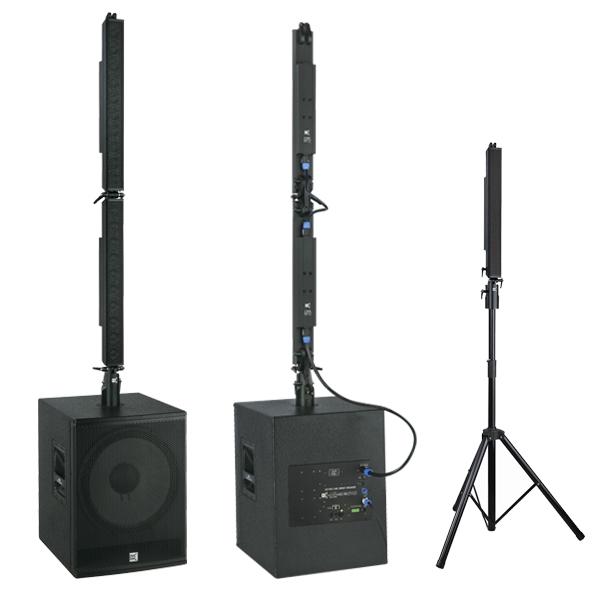

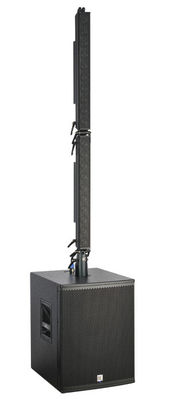

Large Image :  Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design

Product Details:

Place of Origin: Guang Zhou , China
Brand Name: CVR
Certification: CE
Model Number: T-2010&T-115P

Payment & Shipping Terms:

Minimum Order Quantity: 2 boxes
Price: $100 to $10000
Packaging Details: carton box package or flight case package
Delivery Time: 10 to 15 days after receive payment
Supply Ability: 5000 boxes each month
Detailed Product Description
Model: T-2010&T-115P Type: Line Array Column System
Input Connectors: 2×NL4MP Speakon Speaker Cables: LF 1(+)1(-) HF 2(+)2(-)
Dispersion Pattern: 110º H×9º V Output Section: 2-channel

Wedding Column Loudspeakers Active Radio Broadcast Equipment , Column Speaker Design





Quick Details:

  • Place of Origin : Guangzhou , China
  • Brand name : CVR
  • Model Number: T-2510&T-115P
  • System: full range system
  • Power rating : 1100watt
  • Color: Black
  • Type: Professional Loudspeaker
  • Service Type: OEM or ODM
  • Warranty : one year





Power handling:



 The T-2010 is a line array column system comprised of ten 2"neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics-phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.



Model

T-2010

Type Line Array Column system
Frequency Response

200Hz -20kHz ± 3dB

42Hz-500Hz ± 3dB(T-115P)
Power handling 150W(RMS)300W(PEAK)
500W(RMS)1000W(PEAK)(T-115P)
Sensitivity 95dB(1W@1M)
107dB(1W@1M)(T-115P)
Max@S.P.L

116dB(PEAK/1M)

134dB(PEAK/1M)(T-115P)
LF section 10×2"(57mm)
16mm(0.6in)coil
15"(380mm) woofers(T-115P)
100mm(4in)coil
Nominal impedance 8 ohm
8 ohm(T-115P)
Output section 2-channel
Dispersion pattern 80°
Speaker cables LF 1(+)1(-)  HF 2(+)2(-)

Input connectors 2×NL4MP speakon
Dimensions 602×69×75mm(W×H×D)
420×550×490mm(W×H×D)(T-11)
Package dimensions 670×140×145mm/0.01cbm
490×620×560mm/0.15cbm(T-115)
Enclosure Aluminum
Plywood(T-115P)
Netweight 3g/(T-2010)  29kg/(T-115P)
Gross weight 4.5/(T-2010)  32kg/(T-115P)



Specification:



   T-115/T-115P  is  a  15" subwoofer,  specifically   designed   to reproduce deep  bass frequencies with maximum efficiency, speed and impact. The W-115P with a Bluetooth features a highly efficient power amp module and incorporated DSP. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required.



Model

T-115 & T-115P
Type Sub-bass system
Frequency Response 42Hz-500Hz ± 3dB
Power handling 800W(RMS)1600W(PEAK)
Power amp 2X600W/4ohm + 1X900W/8ohm(T-115P)
Amplifier type Switching power amp, class D
circuit(T-115P)
Sensitivity 107dB(1W@1M)
Max@S.P.L 134dB(PEAK/1M)
LF section 15"(380mm) woofers
100mm(4in)coil
Nominal impedance 8 ohm
Finish Black paint
Input connectors 2×NL4MP speakon
Dimensions 420×550×490mm(W×H×D)
Package dimensions 490×620×560mm/0.15cbm
Enclosure Plywood
Net weight 29kg(T-115)/35kg(T-115P)
Gross weight 32kg(T-115)/38kg(T-115P)





About us :



      Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer   specialized in producing  professional  audio  equipment    with  an  own  brand “CVR ” since  2005.  Our   5,000  square   meters  plant  has  R&D,  sales  and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
      CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer,  floor  monitor,  Power amplifier and speaker  management  system. From  the smallest conference room to the largest stadium.
 CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible  aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the  world.
     Our  goal is to provide the best equipment with the best  services. We have  not  deviated from this  position  since  we  began  and  will  do  it consistently.

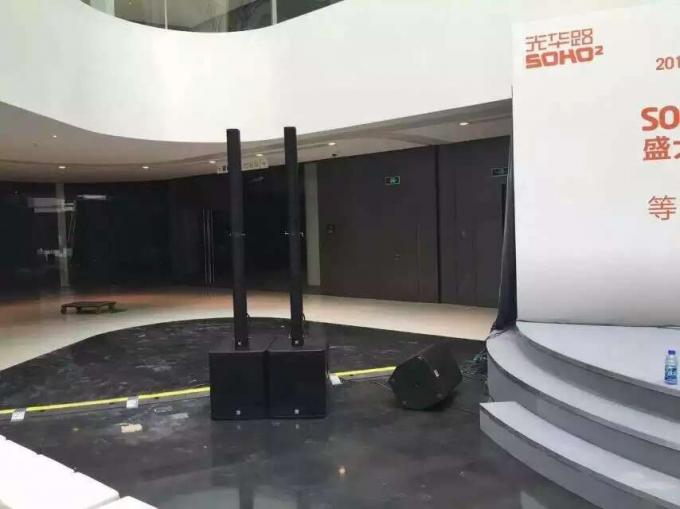

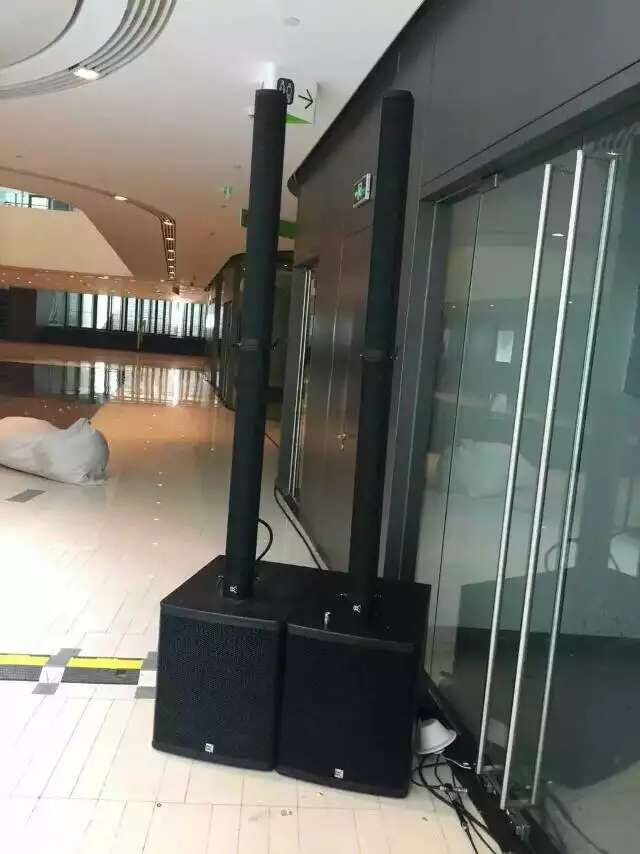

Project case:
