Detailed Product Description
Model Number:: |
CV-8.0&CV-112B |
Type: |
8 Inch Small Speaker |
Brand Name: |
CVR |
Power:: |
250W(RMS)500W(PEAK) |
Input Connectors:: |
2-Neutrik NL4 |
Size: |
12" Woofers |
Finish: |
Black Paint |
|
|
High Light: |
conference room sound system, speakers for conference room |

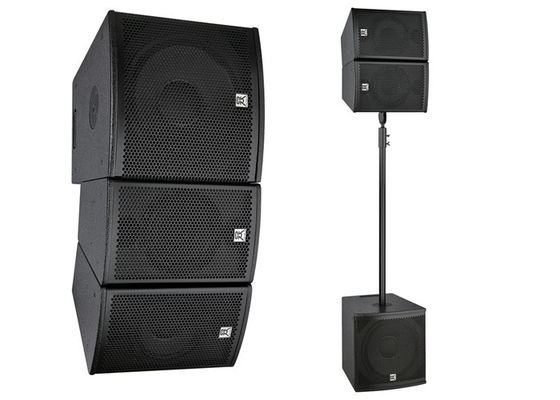

250W Conference Room Speaker Array Column system , Wireless Microphone Speaker System
product description:
CV-8.0 is a coxial array system which is made of a 8"woofer, a 1.4" titanium neodymium compression driver. a CV-8.0 will integrate seamlessly with CV-112 array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-8.0 is veryversatile and scalable for a wide range of applications in touring performance,
corporate and fixed installation fields. CV-112 is a dedicated high performance sub-bass system designed to augment the low frequency output of CV-8.0.
CV-112 is a sub-bass enclosure which must be flown with CV-8.0. So its physical dimensions are identical to the CV-8.0 and it is equipped with the same proprietary rigging system. It features with a 12"woofer with magnet structure and suspensions engineered for maximum linear excursion.
Model
|
CV-8.0&CV-112B
|
Type
|
Array Column system
|
Sub-bass system(CV-112B)
|
Frequency Response
|
70Hz -20kHz ± 3dB
|
42Hz-150Hz ± 3dB(CV-112B)
|
Power handling
|
LF 250W(RMS)500W(PEAK)
|
HF 30W(RMS)60W(PEAK)
|
400W(RMS)800W(PEAK)(CV-112B)
|
Sensitivity
|
LF 97dB(1W@1M)
|
HF 108dB(1W@1M)
|
106dB(1W@1M)(CV-112B)
|
Max S.P.L
|
LF 121dB(PEAK/1M)
|
HF 120dB(PEAK/1M)
|
132dB(PEAK/1M)(CV-112B)
|
LF section
|
8"(210mm)woofer
|
50mm(2in)coil
|
12"(310mm) woofer(CV-112B)
|
100mm(4in)coil
|
Nominal impedance
|
8 ohm
|
8 ohm(CV-112B)
|
LF section
|
1×1.4"neodymium
|
compression driver with 34mm
|
Output section
|
2-channel
|
Dispersion pattern
|
90°
|
Finish
|
Black paint
|
Speaker cables
|
1(+)1(-)Built in crossover
|
1(+)1(-)(CV-112B)
|
Input connectors
|
2×NL4MP speakon
|
Recommend crossover
|
90Hz-20KHz
|
35Hz-90Hz(CV-112B)
|
Dimensions
|
245×380×321mm(W×H×D)
|
384×380×476mm(W×H×D)(CV-112B)
|
Package dimensions
|
315×450×390mm/0.06cbm
|
455×450×545mm/0.11cbm(CV-112B)
|
Enclosure
|
Plywood
|
Netweight
|
9.5kg(CV-8.0) / 21kg (CV-112B)
|
Gross weight
|
12kg(CV-8.0) / 24kg (CV-112B)
|
about our factory:
Guangzhou CVR Pro Audio Factory is specialized in research thing, developing and manufacturing high quality pro audio equipment. Boasting talented professional employees and leading technology, we manufacture and supply a comprehensive range of professional equipment including line array system, pro loudspeaker, subwoofer monitor speaker and power amplifier. CVR pro audio products have been far sales to over 30 countries abroad, enjoying high reputations and popularity. Our own modern industrial factory occupies over 3000 square meters, equipped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and after sales service are all running well under strict
management constructive guidelines.
