6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers

Certification
Amazing quality,super value from me, a end user and dealer.with Quality and clear voice

—— Sifiso Kinyabo Zambia

best sound system manufacturer in China, Cvr systems are seriously awesome.

—— Joseph Kenya

they have best line array system in China,with super and heavy deep sound,for my concert events they doing fantastic.

—— Johnny Vietnam

I'm Online Chat Now

6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers

6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers supplier 6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers supplier 6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers supplier 6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers supplier

Large Image :  6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: CV-6.5&CV-112B

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: CV-6.5&CV-112B Type: Array System
Brand Name: CVR Power:: 150W(RMS)300W(PEAK) CV-6.5
Input Connectors:: 2-Neutrik NL4 Size: 6.5" Woofers
Finish: Black Paint
High Light:

conference room audio system

,

speakers for conference room

6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers





DESCRIPTION and APPLICATION:

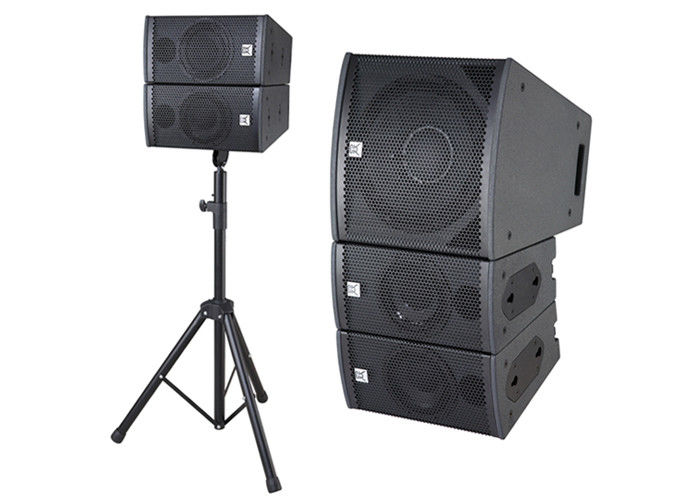

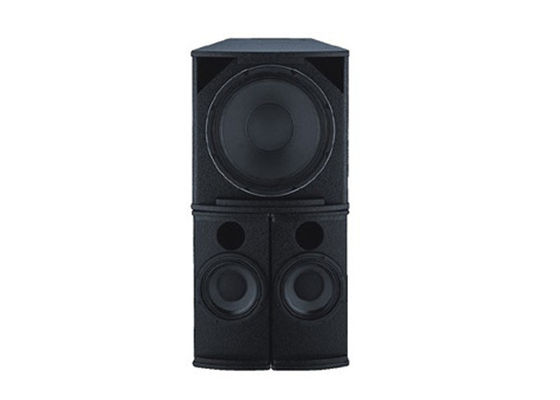

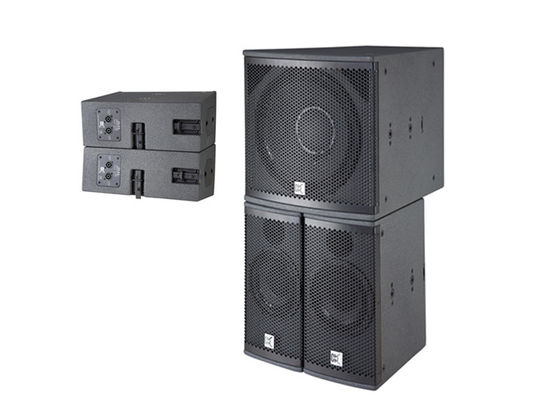

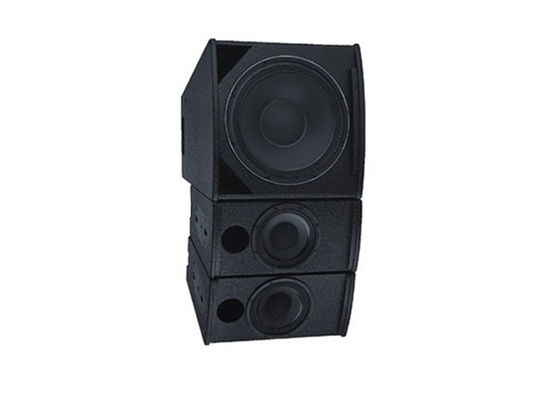

CV-6.5 is a coxial array system which is made of a 6.5"woofer, a 1.4" titanium neodymium compression driver. a CV-6.5 will integrate seamlessly with CV-112 array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-6.5 is veryversatile and scalable for a wide range of applications in touring performance,
corporate and fixed installation fields. CV-112B is a dedicated high performance sub-bass system designed to augment the low frequency output of  CV-6.5.

CV-112B is a sub-bass enclosure which must be flown with CV-6.5. So its physical dimensions are identical to the CV-6.5 and it is equipped with the same proprietary rigging system. It features with a 12"woofer with magnet structure and suspensions engineered for maximum linear excursion.

Model

CV-6.5&CV-112B

Type Array system
Sub-bass system(CV-112B)
Frequency Response

80Hz -20kHz ± 3dB

42Hz-600Hz ± 3dB(CV-112B)
Power handling

150W(RMS)300W(PEAK)
400W(RMS)800W(PEAK)(CV-112B)

Sensitivity 95dB(1W@1M)
106dB(1W@1M)(CV-112B)
Max@S.P.L

117dB(PEAK/1M)

192dB(PEAK/1M)(CV-112B)
LF section 6.5"(170mm)woofer
50mm(2in)coil
12"(310mm) woofer(CV-112B)
100mm(4in)coil
HF section 1×1.4"neodymium
compression driver with 34mm
Nominal impedance 8ohm
8ohm(CV-122B)
Output section 2-channel
Dispersion pattern 90°
Finish Black paint
Speaker cables 1(+)1(-)Built in crossover
1(+)1(-)(CV-112B)
Input connectors 2×NL4MP speakon
Recommend crossover 120Hz-20KHz
45Hz-120Hz(CV-112B)
Dimensions 190×380×315mm(W×H×D)
384×380×476mm(W×H×D)(CV-112B)
Package dimensions 260×450×385mm/0.05cbm
455×450×545mm/0.11cbm(CV-112B)
Enclosure Plywood
Netweight 10kg(CV-6.5) / 21kg (CV-112B)
Gross weight 12kg(CV-6.5) / 24kg (CV-112B)

6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers

6.5 Inch Conference Microphone Systems 2-Way Linear Array Speakers





CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.





Brand Promises:



To get the best goods with least money is not only customers favorites,but also CVR's target.

  • Quality Wood Enlosure: Birch Plywood and Plywood.
  • Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  • Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  • CE&RoHS certificate: for all products
  • Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  • Strong packing: Quality carton boxs with firm belt and flight cases are required.
  • Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  • Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
