Detailed Product Description
| TYPE: |
CLASS H POWER CIRCUIT |
MODEL: |
KE-1200 |
| CHANNEL: |
2-CHANNEL |
POWER: |
1800W X 2ch (4 Ohm) |
| Warranty: |
One Year Free Warranty |
|
|
| High Light: |
high power audio amplifier, music system speakers |

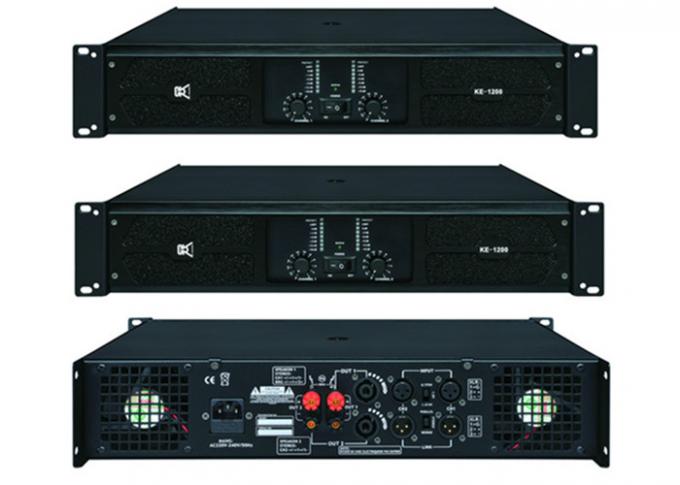

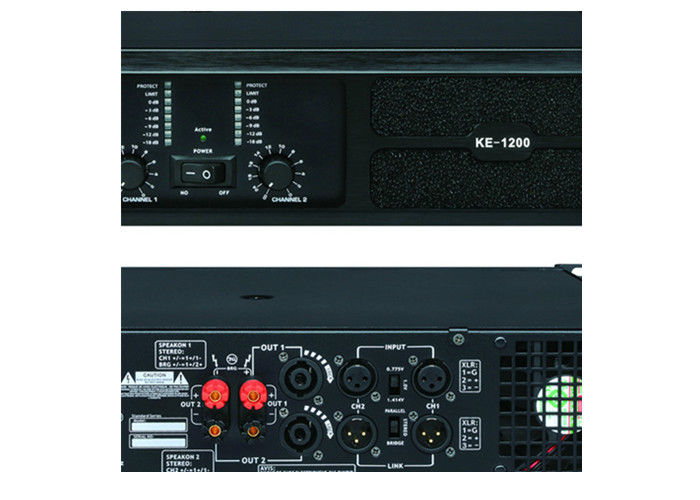

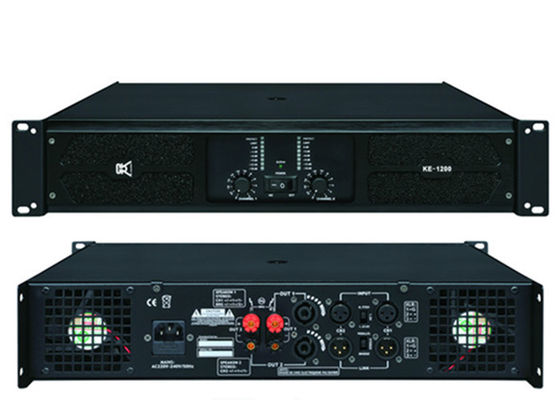

karaoke speaker amplifier 800watt x 2 channel ktv amplifier system
KE series amplifiers are engineered for amazing levels of sonic quality, performance,
and reliability.With high output power, versatile loading options, high thermal
capacity and unmatched reliability, this Series is the perfect solution to any installed sound system.
KE-Series power amplifier has four different models, they are rated from 400 watt (8 ohm) to 1200 watt (8 ohm). All models are employing the mature H circuit design(400W AB circuit design) and using the high quality and reliable components.
KE-series amplifiers have a complete and high-speed protection system in the case of overheating, overloading, DC output etc. They are designed to provide a great solution for all kinds of power requirements. The high working efficiency and time-proof feature proves they are the most attractive amplification system for your outdoor events, disco ,clubs and other live applications.
|
8Ω Stereo Power
|
2×1200W
|
|
4Ω Stereo Power
|
2×1800W
|
|
Input Sensitivity
|
1V/1.4V/24dB
|
| Input Impedance |
20KΩBalanced/10KΩUnbalanced
|
|
Frequency response
|
20Hz-20kHz ±0.5dB |
| Slew Rate |
＞12v/μs
|
|
Dampling factor(8 ohm 1k)
|
＞300
|
|
Signal Noise Ration(dB)
|
＞100dB
|
|
THD+N(Rated Power,4Ω/KHz)%
|
0.05%
|
|
Input Connectors
|
XLR
|
| Output Connectors |
Speakon &touch-proof binding posts
|
|
Amplifier Protection
|
DC/Short/Temp/VHF/Limit/Softstar
|
|
Dimensions
|
|
| Net Weight |
26Kg
|
| Gross weight |
28Kg
|

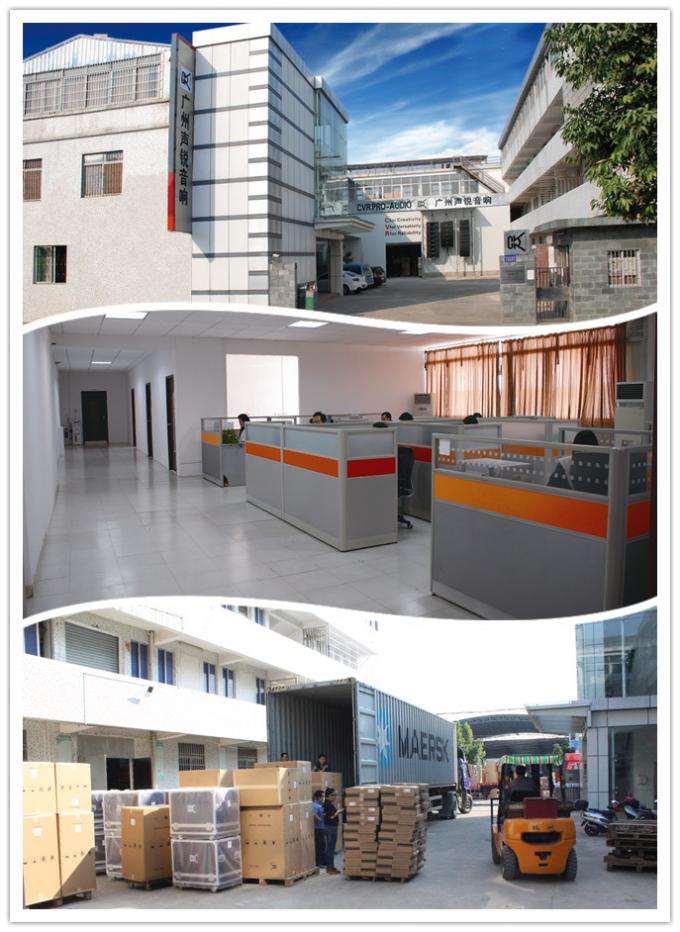

ABOUT CVR:
