Detailed Product Description
| Model Number:: |
CV-152M & CV-152MP |
Type: |
Two Way Full Range System |
| Brand Name: |
CVR |
Power:: |
450W(RMS)900W(PEAK) |
| Input Connectors:: |
2-Neutrik NL4 |
Size: |
15" Woofers |
| Finish: |
Black Paint |
|
|
| High Light: |
powered Stage Monitors, audio Monitor Speakers |
15 Inch Conference Monitor Speaker Active Stage Monitor Speakers Full Range Speaker Box
DESCRIPTION and APPLICATION:

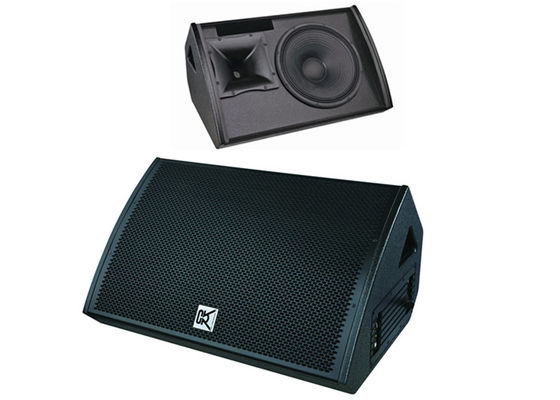

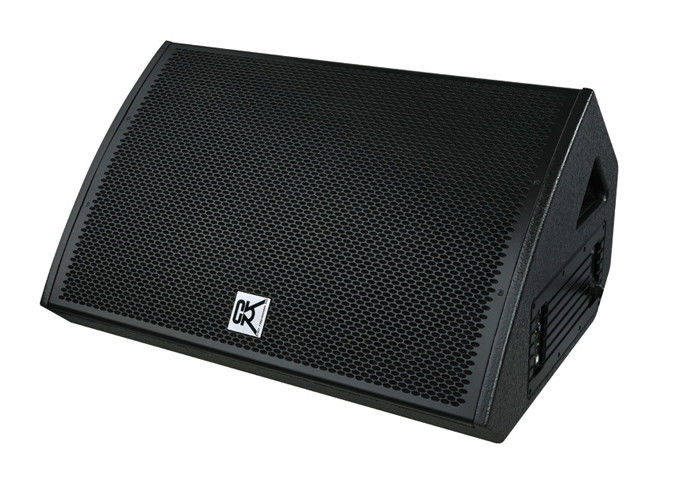

CV-152M/CV-152MP is a two-way, full range stage monitor speaker system composed of one 15＂ woofer and one 3＂titanium compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications. The CV-152MP features a highly efficient power amp module.
| Model |
CV-152M & CV-152MP(Active) |
| Type |
Two-way,full range monitor system |
| Frequency Response |
48Hz-18kHz±3dB |
| Power handling |
450W(RMS)900W(PEAK) |
| Power amp |
1000W/8ohm (CV-152MP) |
| Amplifier type |
Switching power amp, class
D circuit |
| Sensitivity |
100dB(1W@1M) |
| Max@S.P.L |
126dB(PEAK/1M) |
| LF section |
15"(380mm) woofer 75mm(3in)coil |
| HF section |
3"compression driver with
75mm titanium diaphragm |
| Nominal impedance |
8 ohm |
| Output section |
2-channel |
| Dispersion pattern |
60°H×40°V |
| Surface finish |
Black paint |
| Speaker cables |
1(+)1(-) |
| Input connectors |
2×NL4MP speakon |
| Dimensions |
750×400×520mm(W×H×D) |
| Package dimensions |
820×470×570mm/0.22cbm |
| Enclosure |
Plywood |
| Net weight |
32.5kg(CV-152M)
33.5kg(CV-152MP) |
| Gross weight |
36.5kg(CV-152M)
37.5kg(CV-152MP) |
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
Brand Promises:
To get the best goods with least money is not only customers favorites,but also CVR's target.
- Quality Wood Enlosure: Birch Plywood and Plywood.
- Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
- Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
- CE&RoHS certificate: for all products
- Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
- Strong packing: Quality carton boxs with firm belt and flight cases are required.
- Fast lead time: Sample order in stock and normally within two weeks for bulk production.
- Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
