Pa Horn Speaker Professional Audio System Singe 15'' Three Way Full Range

Pa Horn Speaker Professional Audio System Singe 15''  Three Way Full Range supplier Pa Horn Speaker Professional Audio System Singe 15''  Three Way Full Range supplier Pa Horn Speaker Professional Audio System Singe 15''  Three Way Full Range supplier Pa Horn Speaker Professional Audio System Singe 15''  Three Way Full Range supplier

Large Image :  Pa Horn Speaker Professional Audio System Singe 15'' Three Way Full Range

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: CV-1C

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: USD 100-10000 Pieces
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: CV-1C Type: Three Way Full Range Pa Speaker
Brand Name: CVR Power:: 1000W(RMS)2000W(PEAK)
Input Connectors:: 2-Neutrik NL4 Size: 15" Woofers
Finish: Black Paint Apply: Band Show Indoor Outdoor Show

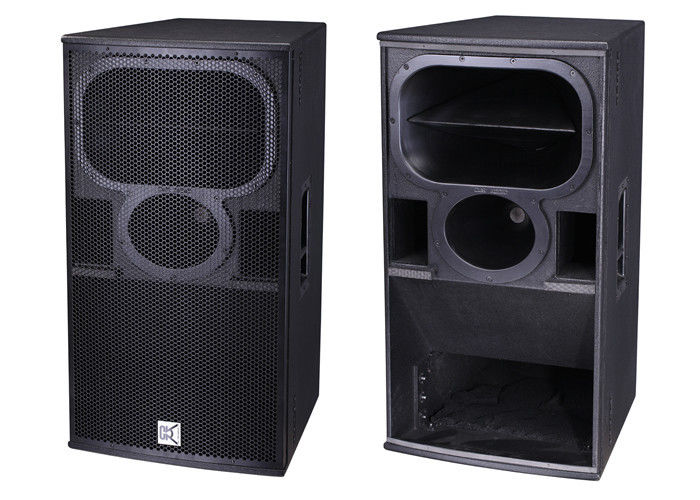

Pa Horn Speaker Professional Audio System Singe 15''  Three Way Full Range





DESCRIPTION and APPLICATION


The  ultra-compact  CV-1C  is  a unique,innovative three-way,bi-amps full range system with crossover network built-in both MF/HF sections. CV-1C is equipped with one 15" wave horn loading woofer, one 10"wave horn loading neodymium driver and one 3"titanium compression driver optimally splayed for smooth, powerful, mid-long throw wide coverage. Extremely versatile CV-1C blends pleasing aesthetics, uncompromising technical excellence with ease of installation to provide a high quality loudspeaker system to suit installed sound requirements of varied sizes venues such as bars, night clubs, conference centers, stadiums, arenas, etc.





Model CV-1C
Type Three-way Bi-amp full range system
Frequency Response 50Hz-18kHz±3dB
Power handling LF 600W(RMS)1200W(PEAK)
MF 300W(RMS)600W(PEAK)
HF 100W(RMS)200W(PEAK)
Sensitivity LF102dB(1W@1M)
MF105dB(1W@1M)
HF111dB(1W@1M)
Max@S.P.L LF129dB(PEAK/1M)
MF128dB(PEAK/1M)
HF131dB(PEAK/1M)
LF section 15"(380mm) woofer 100mm
(4in)coil
Nominal impedance 8 ohm
MF section 10"(260mm) neodymium MF
65mm(2.75in)coil
Nominal impedance 8 ohm
HF section 3"compression driver with
75mm titanium diaphragm
Nominal impedance 8 ohm
Output section 3-channel
Dispersion pattern 60°H×40°V
Surface finish Black paint
Speaker cables LF 1(+)1(-) MF HF 2(+)2(-)
Input connectors 2×NL4MP speakon
Recommend crossover LF 45Hz-200Hz
MF/HF 200Hz-20kHz
Dimensions 537×980×596mm(W×H×D)
Package dimensions 610×1060×670mm/0.43cbm
Enclosure Plywood
Net weight 61.5kg
Gross weight 64.5kg
