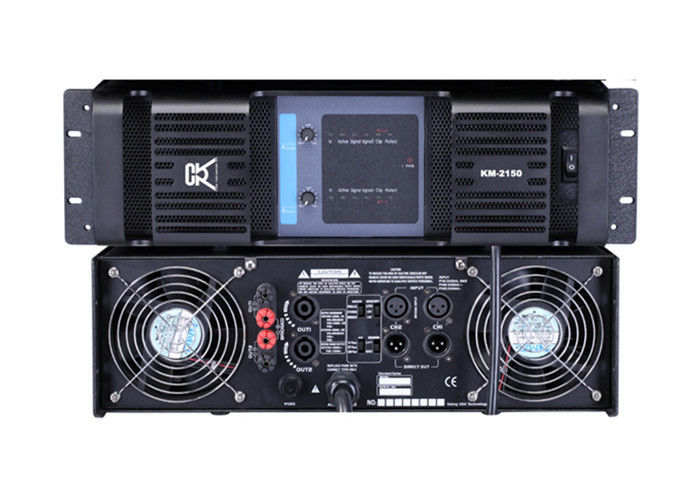

Detailed Product Description
| TYPE: |
CLASS AB POWER CIRCUIT |
MODEL: |
KM-2150 |
| CHANNEL: |
2-CHANNEL |
POWER: |
2250w X 2 (4 Ohm) |
| WARRANTY: |
ONE YEAR FREE WARRANTY |
|
|
| High Light: |
PA Amplifier System, high power audio amplifier |
Transformer Coupled Power Amplifier Stable Analogue Amplification Dj Speaker System
CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at: www.cvr-audio.com

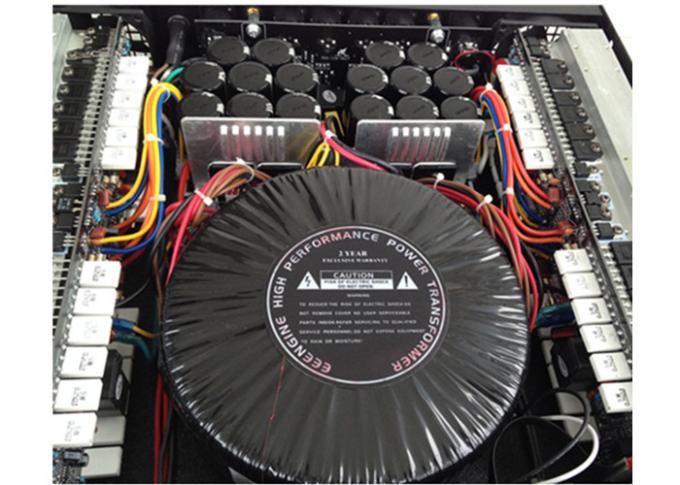

Power supply design
Each equipment includes independent logic high rate of power supply,which can control electrical circuit to adjust power output and voltage from time to time, and to respond the request of signal and load,so it can get the best power match under the wide range of load,so to ensure the power amplifier will not be overheating.
Power output grade
Adopt the balance output circuit,the same as fully symmetrical Bridge Road:compared with the normal single end of land output circuit,the same work voltage can generate the output power in 4 times,that is to say,in order to get the same output power,the work power voltage of power amplifier is much lower thannormal OCL model.The output power tube is with wide safety work area under the condition of low voltage,so it is with higher power and reliability compared with normal OCL output model. Most importantly, The distortion of it is much Lower and can output better tone quality.
| Model |
KM-2150 |
| 8Ω Stereo Power |
2×1500W |
| 4Ω Stereo Power |
2×2250W |
| 8Ω Bridged Mono |
4500W |
| Input Impedance |
>20K/>10K |
| Frequency response |
20Hz-20KHz |
| THD+N(Rated Power,4Ω/KHz)% |
0.05% |
| Signal Noise Ration(dB) |
-105dB |
| Degree separation |
-60dB |
| Input Connectors |
XLR |
| Output Connectors |
Speakon&touch-proof binding posts |
| Power Requirement |
220V-240V,50-60Hz |
| conformation |
Steel and aluminum chassis |
| Airframe Dimension |
88×483×430mm |
| Net Weight |
40kg |
KM series amplifiers are engineered for amazing levels of sonic quality, performance,
and reliability.With high output power, versatile loading options, high thermal
capacity and unmatched reliability, this Series is the perfect solution to any installed sound system.
