Bluetooth Active Line Array Column Speaker System 500W PEAK CVR

Bluetooth Active Line Array Column Speaker System 500W PEAK CVR supplier Bluetooth Active Line Array Column Speaker System 500W PEAK CVR supplier Bluetooth Active Line Array Column Speaker System 500W PEAK CVR supplier Bluetooth Active Line Array Column Speaker System 500W PEAK CVR supplier

Large Image :  Bluetooth Active Line Array Column Speaker System 500W PEAK CVR

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: T-3510 & T-118P

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: USD100-10000
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 100000 Pieces Per Month
Detailed Product Description
Model Number:: T-3510 & T-112P Type: Active Column Line Array
Brand Name: CVR Power:: 250W(RMS)500W(PEAK) T-3510
Input Connectors:: 2-Neutrik NL4 Size: 10X3.5" Neodymium Woofers
Finish: Black Paint
High Light:

carvin column array

,

sound column speakers

Bluetooth Active Line Array Column Speaker System 500W PEAK CVR



DESCRIPTION and APPLICATION:

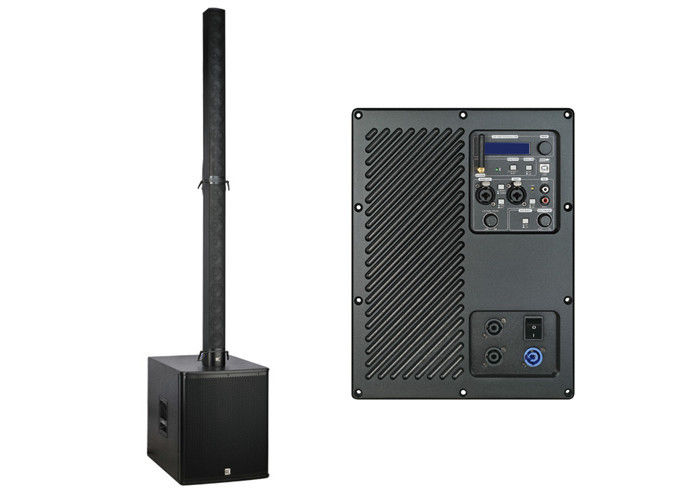

The T-3510 is a line array column system comprised of ten 3.5" neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics - phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.


T-112P is a 12"subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required. The T-112P with a Bluetooth features a highly efficient power amp module and incorporated DSP.



Model

T3510

Type Line Array Column system
Frequency Response 130Hz-20kHz ± 3dB
Power handling 250W(RMS)500W(PEAK)
Sensitivity 96dB(1W@1M)
Max@S.P.L 120dB(PEAK/1M)
LF section 5×3.5"(90mm)
20mm(0.8in)coil
Nominal impedance 16 ohm
HF section 5×3.5"(90mm)
20mm(0.8in)coil
Nominal impedance 8 ohm
Output section 2-channel
Dispersion pattern 80°
Speaker cables LF 1(+)1(-)  HF 2(+)2(-)
Input connectors 2×NL4MP speakon
Dimensions 953×102×115mm(W×H×D)
Package dimensions 1020×170×185mm/0.03cbm
Enclosure Aluminum
Net weight 6.5kg
Gross weight 8kg



Model T-112P(Active)
Type Sub-bass system
Frequency Response 50Hz-600kHz±3dB
Power handling 500W(RMS)1000W(PEAK)
Power amp 2X600W/4ohm + 1X900W/8ohm
Amplifier type Switching power amp, class D
circuit
Other functions Bluetooth,DSP
Sensitivity 103dB(1W@1M)
Max@S.P.L 130dB(PEAK/1M)
LF section 12"(310mm) woofer 100mm
(4in)coil
Nominal impedance 8 ohm
Surface finish Black paint
Input connectors 2×NL4MP speakon
Dimensions 360×485×495mm(W×H×D)
Package dimensions 430×555×565mm/0.11cbm
Enclosure Plywood
Net weight 26kg
Gross weight 28kg





CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


 Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.





Brand Promises:



To get the best goods with least money is not only customers favorites,but also CVR's target.

  • Quality Wood Enlosure: Birch Plywood and Plywood.
  • Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
  • Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
  • CE&RoHS certificate: for all products
  • Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
  • Strong packing: Quality carton boxs with firm belt and flight cases are required.
  • Fast lead time: Sample order in stock and normally within two weeks for bulk production.
  • Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.





Package and Delivery:


  1. --Carton or flycase
  2. --At buyers' option



Bluetooth Active Line Array Column Speaker System 500W PEAK CVR
