Detailed Product Description
| Brand Name: |
CVR PRO AUDIO |
Type: |
Two Way Dual 10 Passive Line Array |
| Cabinet Material: |
Birch Plywood Cabinet |
Apply: |
Indoor Outdoor Sound Events |
| Painting: |
Water Resist Black Textured Painting |
Matieal: |
Birch Plywood Waterproof |
| Warranty: |
One Year Free Warranty |
Enclosure: |
2*10''LF,2*2''HF |
| High Light: |
powered speaker system, line array sound system |

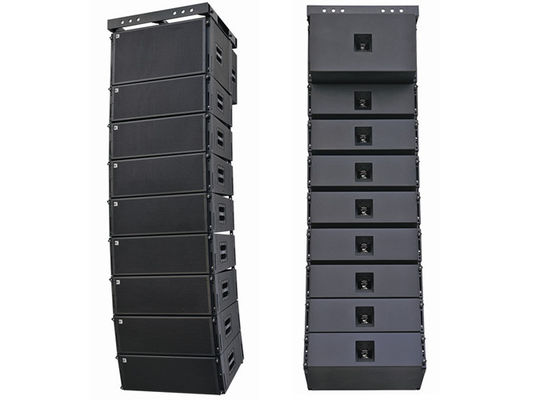

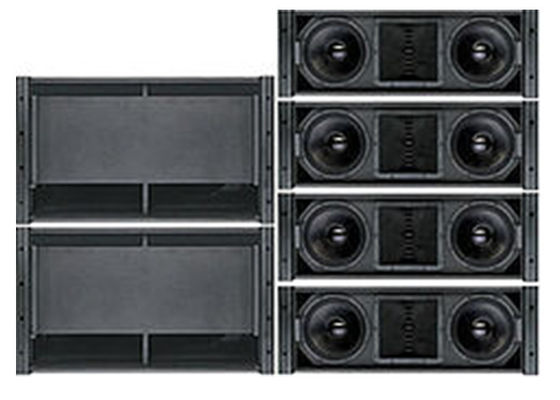

Pro Sound Dj Audio Line Array Speakers Waveguide , 10" Line Array System
Competitive Advantage:
- High quality drivers, high power handling capability, good sound quality, flyware easy for operation,
- beautiful mesh grille design,highest standards of workmanship and quality control.
- A good solution for all sizes of indoor/outdoor live event,and indoors applications like disco,
- night club, conference,school auditorium, and places of worship;
- To avoid damage and scratch during transport,according to customers’requirement,we can put the items
- in extra cost flight cases.
Specification:
| Model |
W-210A/W-250A |
| Type |
Line array system |
| Line array sub-bass system(W-250A) |
| Frequency Response |
60Hz-20KHz±3dB |
| 40Hz-150Hz±3dB(W-250A) |
| Power handling |
LF 600W(RMS)1200W(PEAK) |
| HF 160W(RMS)320W(PEAK) |
| 1200W(RMS)2400W(PEAK)(W-250A) |
| Sensitivity |
LF 99dB(1W@1M) |
| HF 108dB(1W@1M) |
| 112dB(1W@1M)(W-250A) |
| MaxS.P.L |
LF 127dB(PEAK/1M) |
| HF 127dB(PEAK/1M) |
| 143dB(PEAK/1M)(W-250A) |
| LF section |
2×10"(260mm) neodymium woofer |
| 75mm(3in)coil |
| Components |
2×15"(380mm) woofers |
| 100mm(4in)coil(W-250A) |
| Nominal impedance |
16 ohm |
| 4 ohm(W-250A) |
| HF section |
2×2"neodymium compression driver |
| with 51mm titanium diaphragm |
| Nominal impedance |
16 ohm |
| Output section |
2-channel |
| Dispersion pattern |
110°H×9°V |
| Finish |
Water-proof,wear-resistant textured black pain |
PACKAGE:
| Array design |
Arrays of less than 3×W-210A will |
| provide poor dispersion control and |
| are neither recommended nor supported |
| Speaker cables |
LF 1(+)1(-) HF 2(+)2(-) |
| 1(+)1(-) (W-250A) |
| Rigging system |
Please refer to the W-210A user |
| manual before any operation |
| Input connectors |
2×NL4MP speakon |
| Recommend crossover |
LF 70Hz-2kHz |
| HF 2kHz-20KHz |
| 35Hz-120Hz(W-250A) |
| Dimensions |
855×293×600mm(W×H×D) |
| 855×440×820mm(W×H×D)(W-250A) |
| Package dimensions |
925×360×670mm/0.22cbm |
| 925×510×890mm/0.42cbm(W-250A) |
| Enclosure |
Birch plywood |
| Net weight |
42kg (W-210A)/ 72kg (W-250A) |
| Gross weight |
45kg (W-210A)/ 76kg (W-250A) |
CVR Audio Deatils:
CVR PRO AUDIO is a cutting edge professional audio speaker manufacturer specializing in designing andmanufacturing professional audio systems,including PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor, power amplifier and speaker management system. We provide these products for indoor and outdoor events, stadiums, churches, performing arts venues, theatres,conference rooms, meeting halls, and any space where audio system are needed.

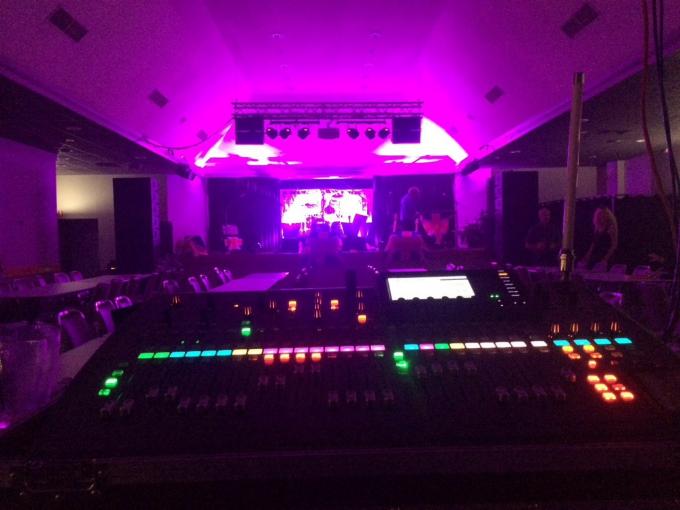

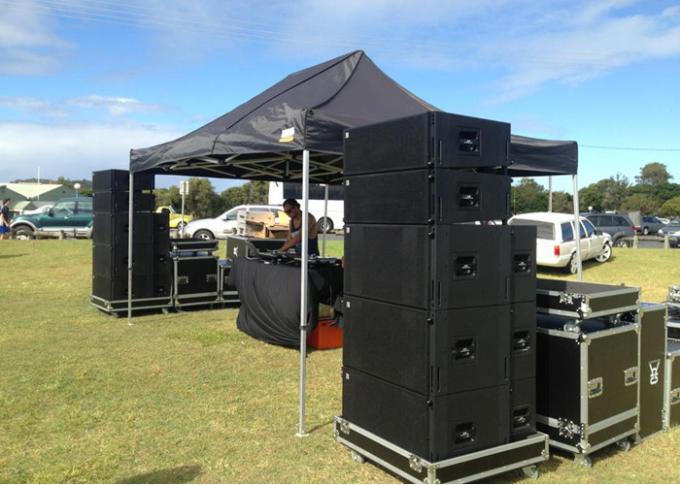

Show Case Photos:
