Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers

Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers supplier Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers supplier Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers supplier Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers supplier

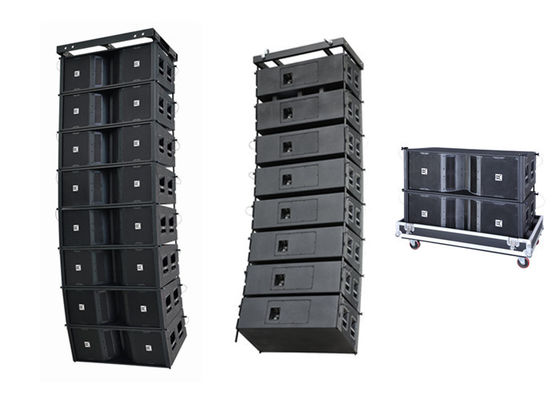

Large Image :  Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers

Product Details:

Place of Origin: Guangzhou China
Brand Name: CVR
Certification: CE,RoHS
Model Number: W-8

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: Carton Box & Flight Case
Delivery Time: 5--8 Work Days
Payment Terms: D/A, D/P, L/C, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Model Number:: W-8 Type: Passive Three Way Line Array Speaker System
Brand Name:: CVR Power:: HF 200W(RMS)400W(PEAK)
Input Connectors:: 2-Neutrik NL8 Enclosure: Birch Plywood
Finish: Water-proof,wear-resistant Textured Black Paint

Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers





DESCRIPTION and APPLICATION


The W-8 is a line array system which is made of two 12” neodymium woofers, four 6.5” midrange speaker units, two 3”  titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi-speaker combined to produce accurate directivity and maximum dynamic impact. Its midrange speaker units are beset in treble horn board and two waves guide plates are set in between to eliminate its interfere.Each enclosure is equipped  with rigging system, allowing flown array to be constructed rapidly and safely. W-8 is a 3-way, full range system and may be used without subwoofers for many applications. Also it may be complemented by ground stacked subwoofer CVR T-182/CV-218B , which brings superb line array performance to large stadiums, big outdoor concerts, commercial events,jbl similar line array  etc.



Model

W-8

Type Line array system
Frequency Response

52Hz-20KHz±3dB

Power handling LF 2×600W(RMS)2×1200W(PEAK)
MF 600W(RMS)1200W(PEAK)
HF 200W(RMS)400W(PEAK)
Sensitivity LF 104dB(1W-1M)
MF 107dB(1W-1M)
HF 111dB(1W-1M)
Max-S.P.L LF 135dB(PEAK/1M)
MF 135dB(PEAK/1M)
HF 134dB(PEAK/1M)
LF section 2×12" (310mm)neodymium woofer
75mm(3in) coil
Nominal impedance 8 ohm
MF section 4×6.5" (170mm)neodymium MF
50mm(2in)coil
Nominal impedance 8 ohm
HF section 2×3"neodymium compression driver
with 75mm titanium diaphragm
Nominal impedance 16 ohm
Output section 3-channel
Dispersion pattern 110°H×7.5°V
Finish Water-proof,wear-resistant textured black paint
Array design Arrays of less than 3×W-8 will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Rigging system Please refer to the W-8 user
manual before any operation
Input connectors 2×Neutrik NL8
Recommend crossover LF 60Hz-600Hz
MF 600Hz-1.8kHz
HF 1.8kHz-20KHz
Dimensions 1100×405×595mm(W×H×D)
Package dimensions 1170×475×665mm/0.37cbm
Enclosure Birch Plywood
Net weight 60kg
Gross weight 64kg

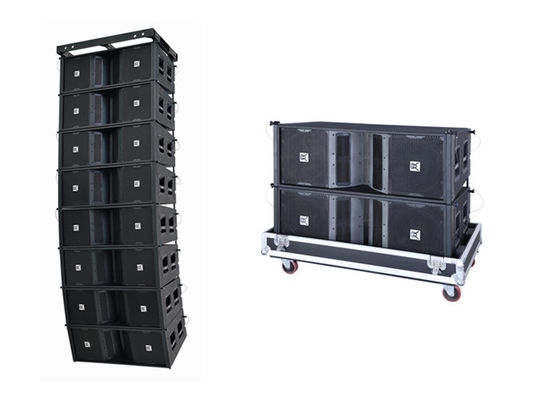

Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers

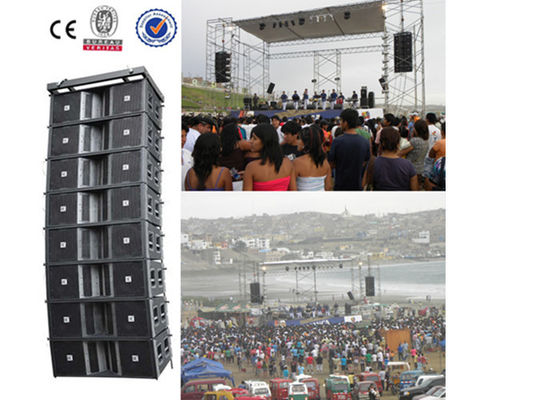

Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers

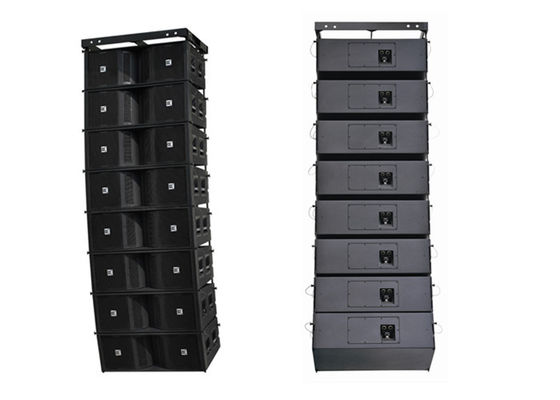

Ukuran Box Speaker 12 Inch Line Array Outdoor Instrument With Neodymium Woofers



Features




--Detachable front dolly panel

--High fidelity, durability and light weight

--Three-way large format line array module

--15loudspeaker with neodymium magnet

--3loudspeakers with neodymium magnetic ine array

--Captive figging system intergrated in the cabinet design with good quality birch plywood



Our Unique Advantage

--Small order accept

--Green Paint, low pollution

--Flat aluminum wire for the woofer

--All are textured, durable birch plywood

--Plug is Neutrik, endure repeatedly plug

--Import loudspeaker cone, Good elasticity for woofer



Package&Deliver

--Carton or flycase

--At buyers' option
