Power Line Array Speakers Compact Audio System Concert Sound Equipment

Power Line Array Speakers Compact Audio System Concert Sound Equipment supplier Power Line Array Speakers Compact Audio System Concert Sound Equipment supplier Power Line Array Speakers Compact Audio System Concert Sound Equipment supplier Power Line Array Speakers Compact Audio System Concert Sound Equipment supplier

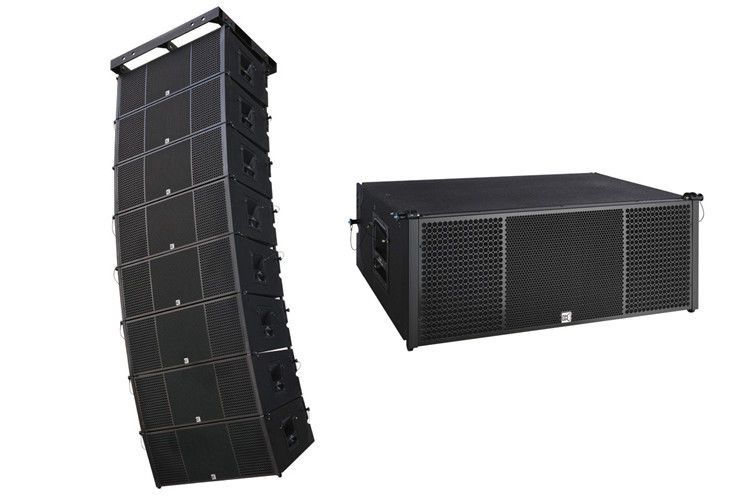

Large Image :  Power Line Array Speakers Compact Audio System Concert Sound Equipment

Product Details:

Place of Origin: China
Brand Name: CVR
Certification: CE,RoHS
Model Number: W-9

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: USD 100-10000 PIECES
Packaging Details: Good Quality Carton Box Or Flightcases
Delivery Time: 3-10 Days Upon Receipt Deposit
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Cabinet Material:: Birch Plywood Details: Dual 12 Inch Line Array
Enclosure: 2*12''LF,2*8''MF,2*3''HF Fuction: Concert Line Array,big Stadium,outdoor Show
Color: Black Driver Unit: All Good Quality Neodynium

Power Line Array Speakers Compact Audio System Concert Sound Equipment

Description And Application

W9 line array system which is made of two 12''neodymium woofers, two high sensitivity 8'' midrange speaker units, two 3'' titanium neodymium compression drivers,  the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front.

W9 speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be  convenient for hanging, assembling, which application W-9 line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.





Model

W-9

Type

Line array system

Frequency Response

52Hz-20KHz±3dB

Power handling

LF 2×600W(RMS)2×1200W(PEAK)

MF 500W(RMS)1000W(PEAK)

HF 200W(RMS)400W(PEAK)

Sensitivity

LF 104dB(1W@1M)

MF 108dB(1W@1M)

HF 111dB(1W@1M)

MaxS.P.L

LF 135dB(PEAK/1M)

MF 135dB(PEAK/1M)

HF 134dB(PEAK/1M)

LF section

2×12" (310mm)neodymium woofer

75mm(3in) coil

Nominal impedance

8 ohm

MF section

2×8" (210mm)neodymium MF

65mm(2.5in)coil

Nominal impedance

8 ohm

HF section

2×3"neodymium compression driver

with 75mm titanium diaphragm

Nominal impedance

16 ohm

Output section

3-channel

Dispersion pattern

110°H×7.5°V

Finish

Water-proof,wear-resistant textured black paint

Array design

Arrays of less than 3×W-9 will

provide poor dispersion control and

are neither recommended nor supported

Speaker cables

LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)

Rigging system

Please refer to the W-9 user

manual before any operation

Input connectors

2×Neutrik NL8

Recommend crossover

LF 60Hz-250Hz

MF 250Hz-1.8kHz

HF 1.8kHz-20KHz

Dimensions

932×360×530mm(W×H×D)

Package dimensions

1000×430×600mm/0.26cbm

Enclosure

Birch Plywood

Net weight

55kg

Gross weight

59kg





CVR PRO AUDIO aims to:



  • Become your most trusted and reliable manufactory
  • Provide high quality pro sound equipment at realistic prices
  • Provide outstanding designs together with delicate finished
  • Provide meticulous and considerate service for clients
  • See more at: www.cvr-audio.com



Competitive Advantage:

  • High quality drivers, high power handling capability, good sound quality, flyware easy for operation,
  • beautiful mesh grille design,highest standards of workmanship and quality control.
  •
  • A good solution for all sizes of indoor/outdoor live event,and indoors applications like disco,
  • night club, conference,school auditorium, and places of worship;
  •
  • To avoid damage and scratch during transport,according to customers’requirement,we can put the items in extra cost flight cases.Power Line Array Speakers Compact Audio System Concert Sound Equipment
